Removal & Installation

  1. Remove the battery negative terminal.
  2. Disconnect the accelerator cable and cruise control cable from throttle assembly by turning the throttle lever to the full open position.
  3. Disconnect the accelerator cable from accelerator pedal connection.
  4. Remove the accelerator cable mounting bolts.

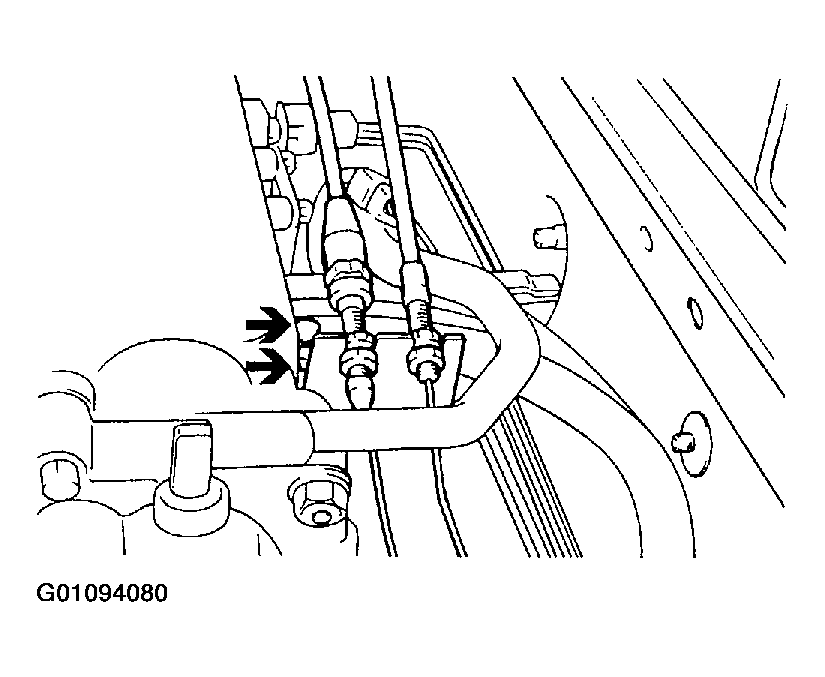

    Fig 1: Removing Accelerator Cable Mounting Bolts
    G01094080Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the actuator and unit assembly mounting bolt.

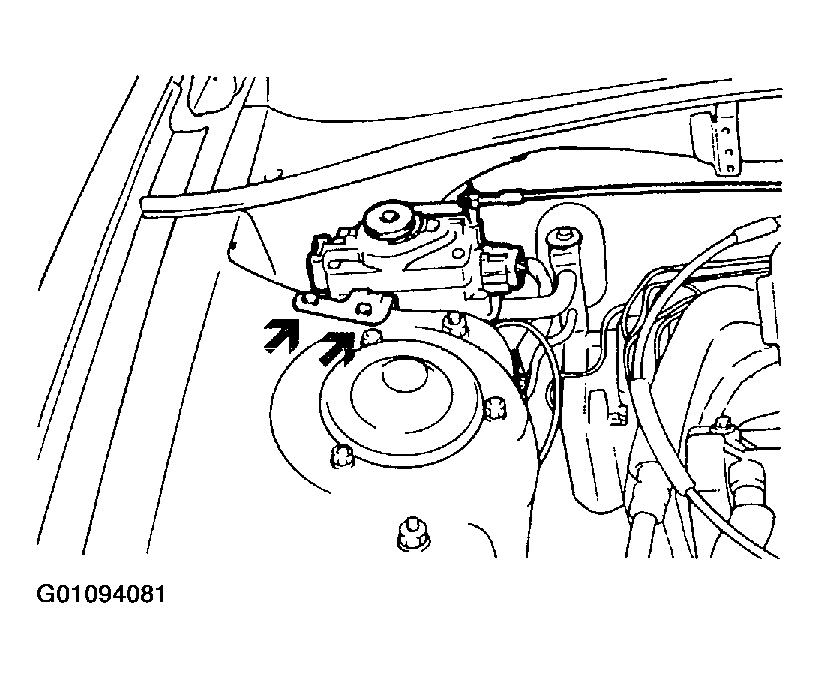

    Fig 2: Removing Actuator & Unit Assembly Mounting Bolt
    G01094081Courtesy of KIA MOTORS AMERICA, INC.
  6. Installation is the reverse order of removal.
