Shift Fork

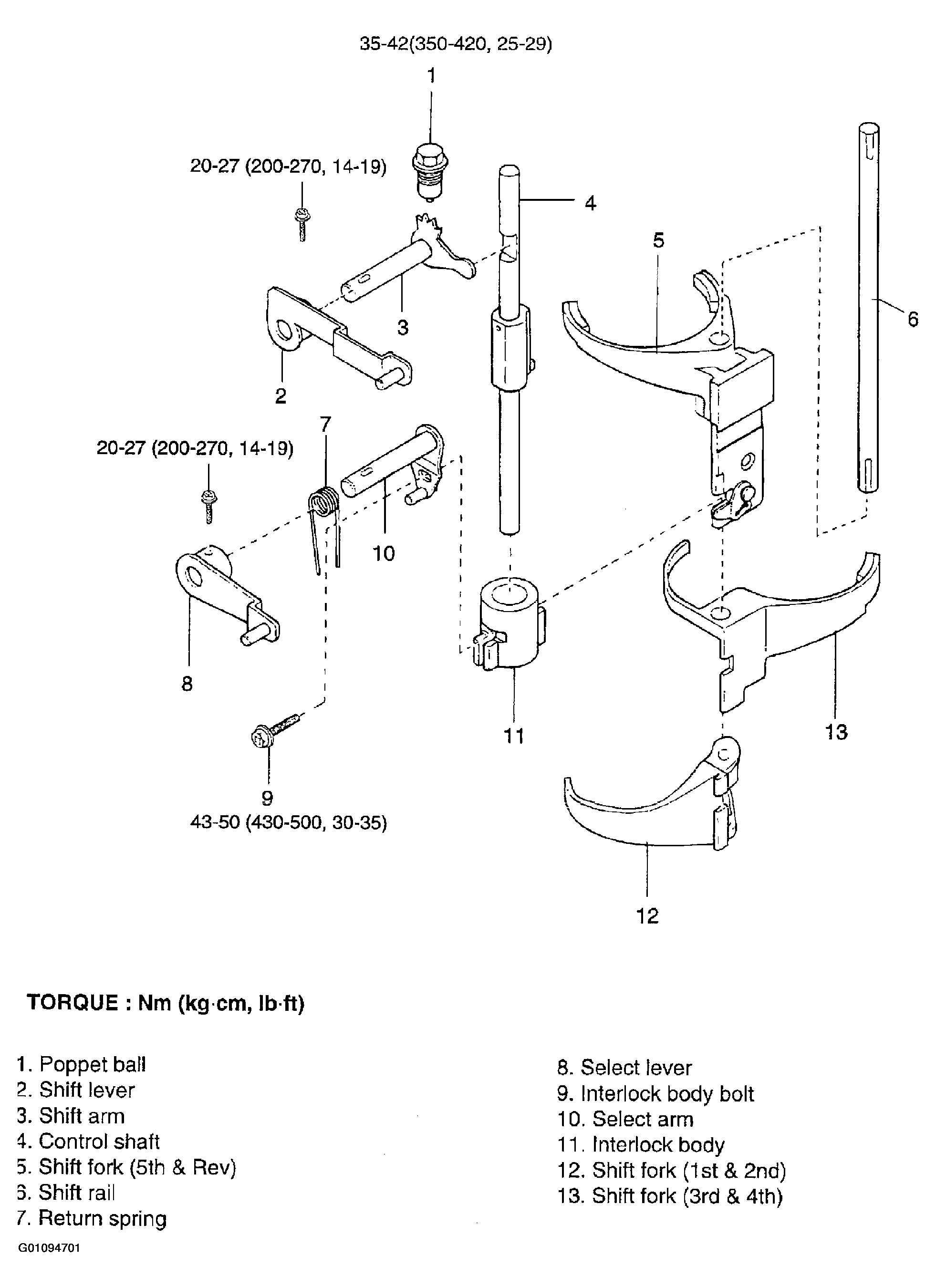

Fig 1: Illustrating Shift Fork Components

G01094701

Courtesy of KIA MOTORS AMERICA, INC.
