Power Window Main Switch

Remove the switch from the door trim panel.
Check for continuity between the terminals. If continuity is not as specified in the table, replace the power window switch.

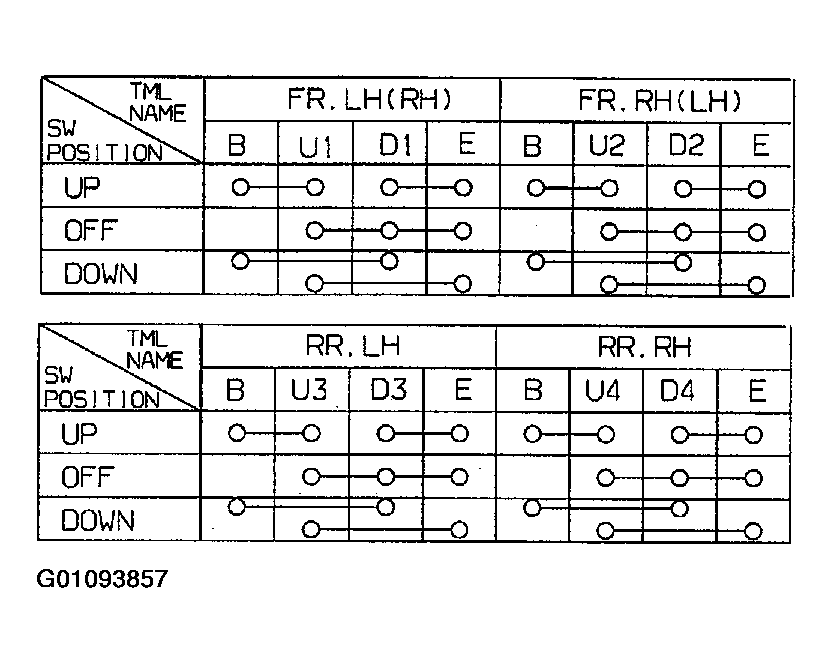

Fig 1: Checking Power Window Main Switch Continuity

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Identifying Power Window Main Switch Terminals

Courtesy of KIA MOTORS AMERICA, INC.
