Power Mirrors: Actuator: Inspection

  1. Disconnect the power door mirror connector from the harness.
  2. Apply battery voltage to each terminal as shown in the table and verify that the mirror operates properly.
    Fig 1: Power Door Mirror Actuator Circuit Diagram & Connector Pinout
    G01095908Courtesy of KIA MOTORS AMERICA, INC.

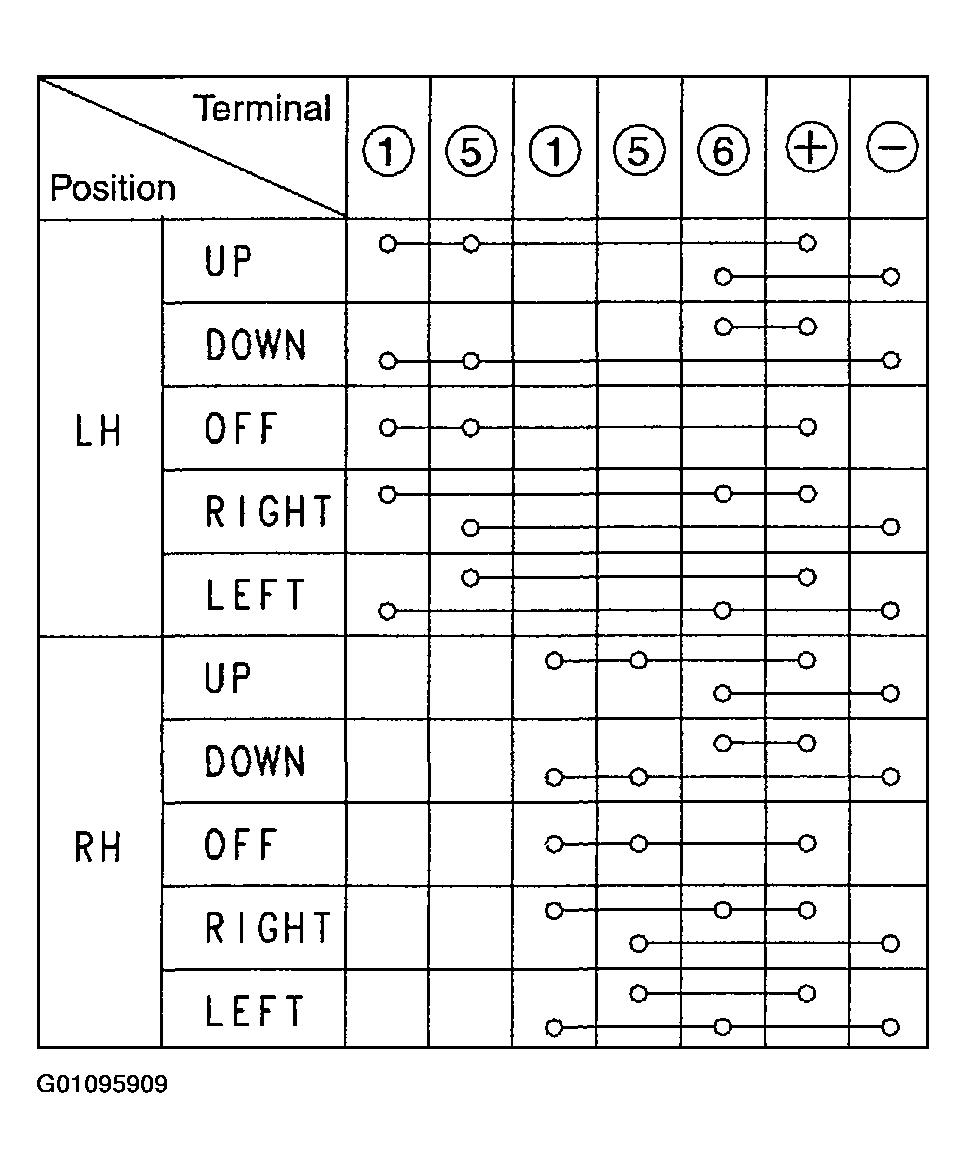

    Fig 2: Power Door Mirror Actuator Function Chart
    G01095909Courtesy of KIA MOTORS AMERICA, INC.
