Engine Compartment Fuse/Relay Box

NOTE: Engine compartment fuse/relay box is located on driver's side of engine compartment, in front of left shock tower. See Fig 1 .

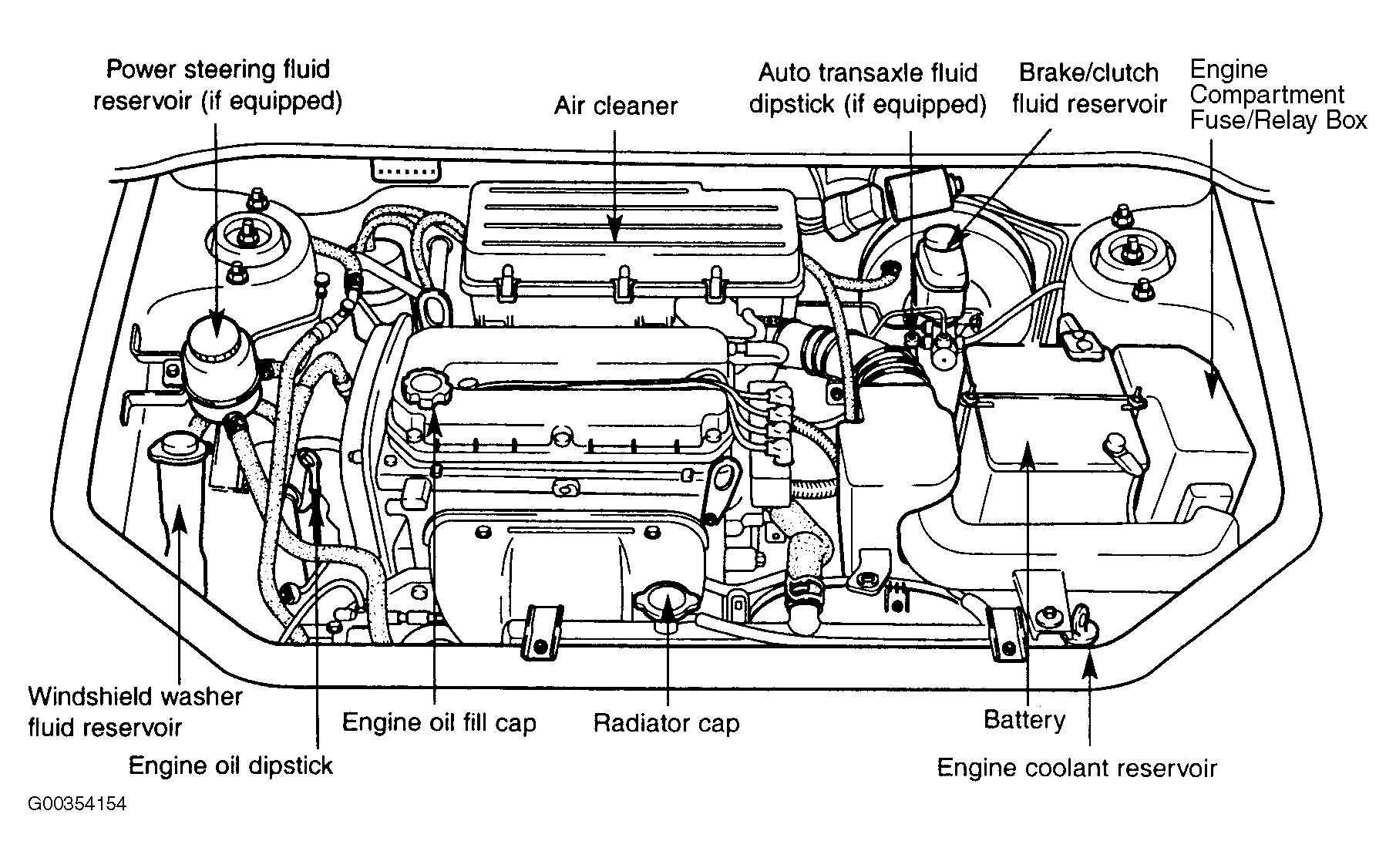

Fig 1: Locating Engine Compartment Fuse/Relay Box

Courtesy of KIA MOTORS AMERICA, INC.

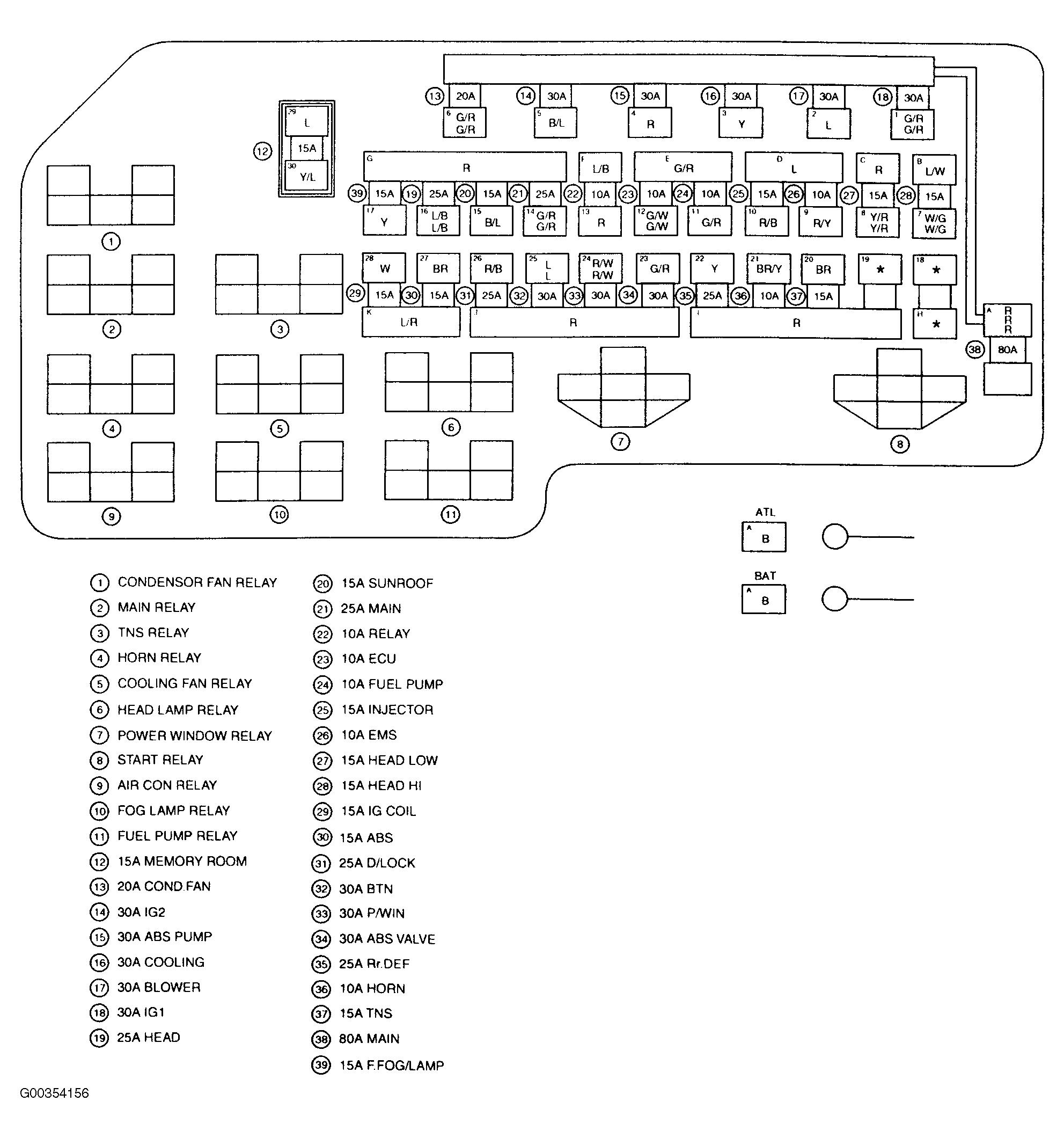

Fig 2: Identifying Components On Engine Compartment Fuse/Relay Box

Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Identifying Connectors On Back Side Of Engine Compartment Fuse/Relay Box

Courtesy of KIA MOTORS AMERICA, INC.
