Cooling System: Radiator: Component

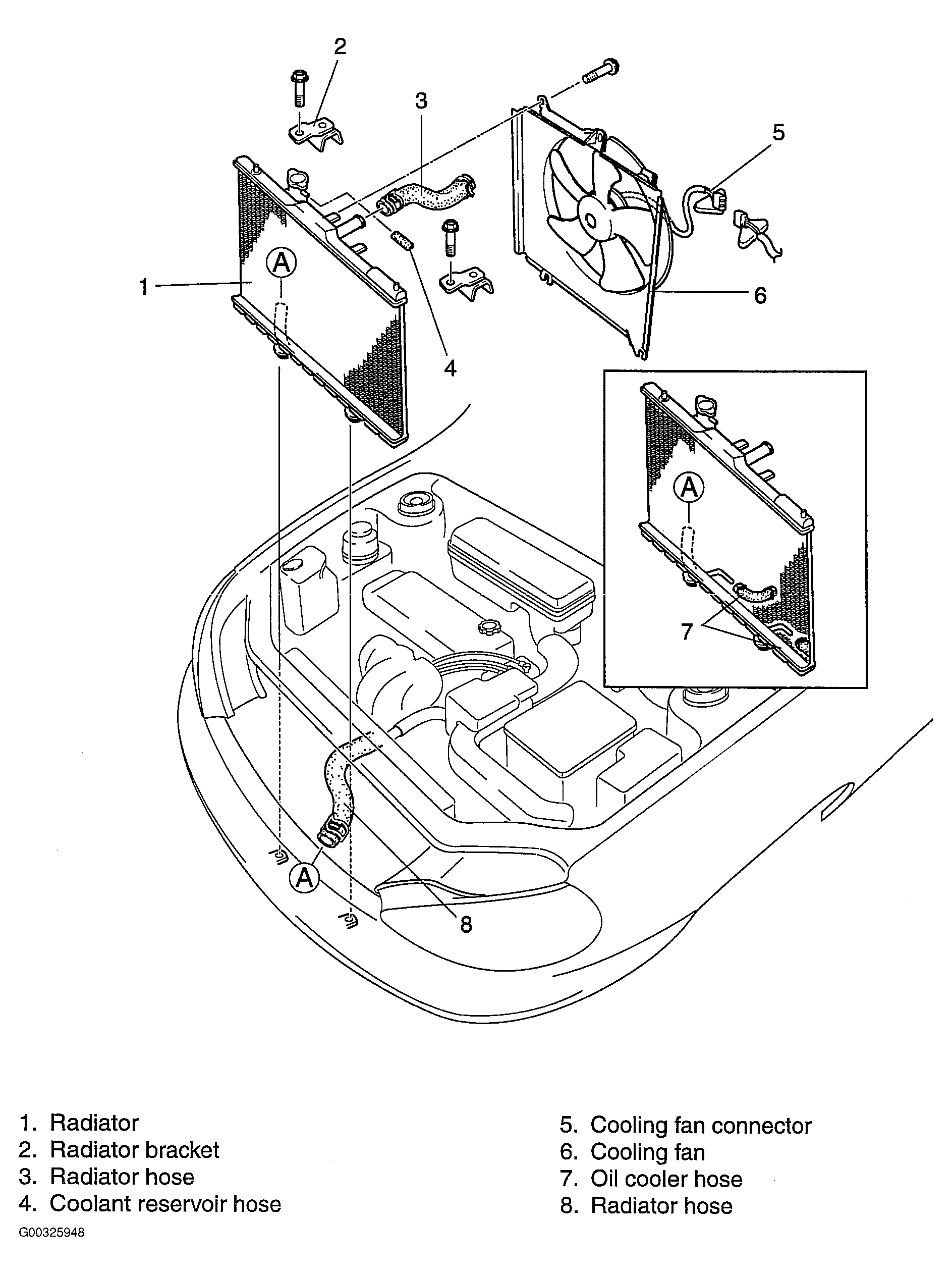

Fig 1: Identifying Radiator Components

G00325948

Courtesy of KIA MOTORS AMERICA, INC.
