Control Units

CONTROL UNITS LOCATION

Component Component Location
ABS Control Unit At left rear of engine compartment. See Figure.

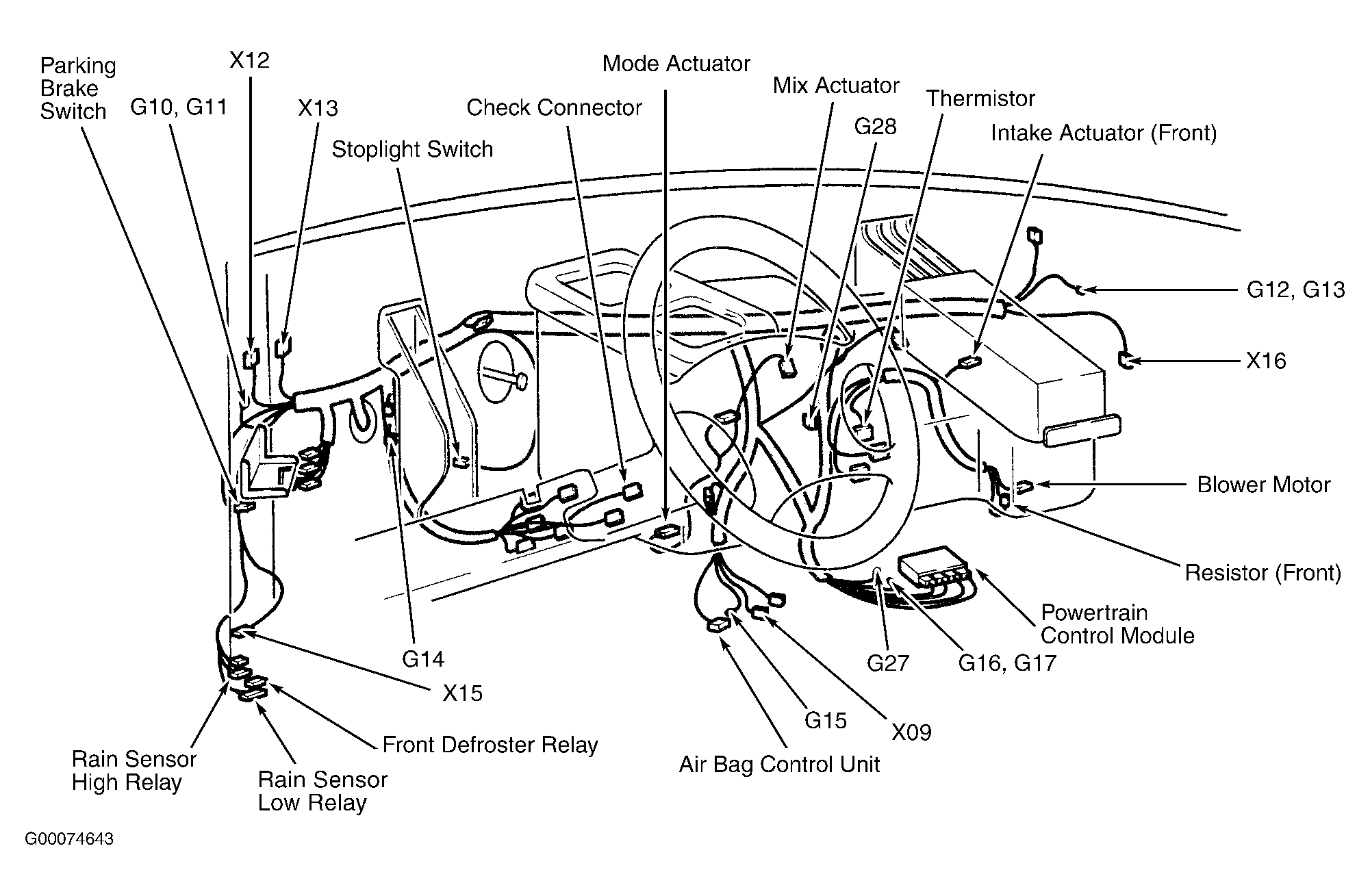

Air Bag Control Unit At lower center of dash, on floor tunnel. See Figure.

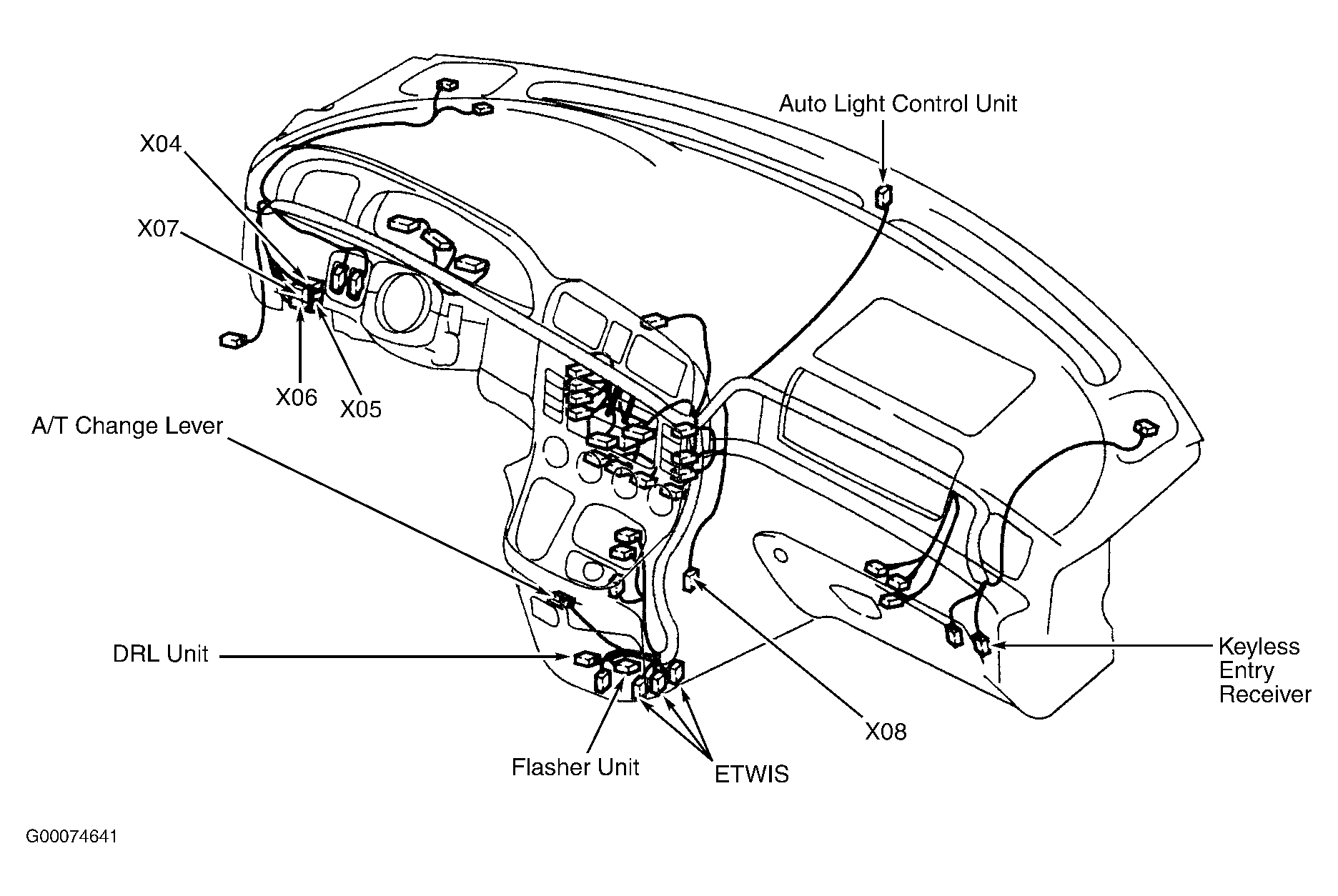

Auto Light Control Unit Behind center of dash. See Figure.
Cruise Control Unit At right rear side of engine compartment. See Figure.
DRL Unit Below center of dash. See Figure.
ETWIS Below center of dash. See Figure.
Flasher Unit Below center of dash. See Figure.
Keyless Entry Receiver Behind lower right side of dash. See Figure.
Powertrain Control Module Under right front passenger floorboard. See Figure.
Sun Roof Control Unit At front center of roof, in sun roof unit.
