Pin Connection

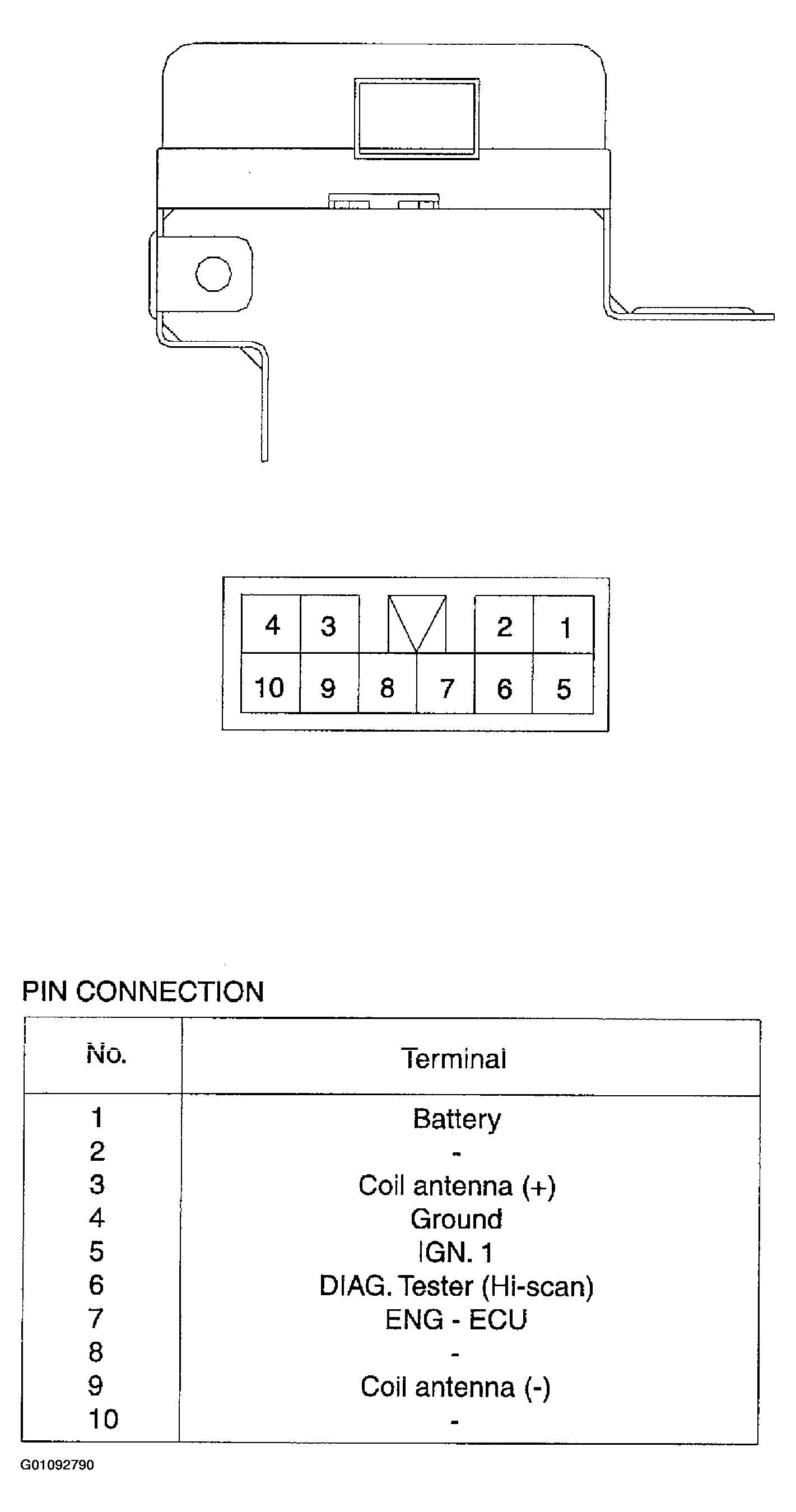

Fig 1: Identifying Immobilizer System Connector & Terminal Pin Outs
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
