Power Window Sub Switch

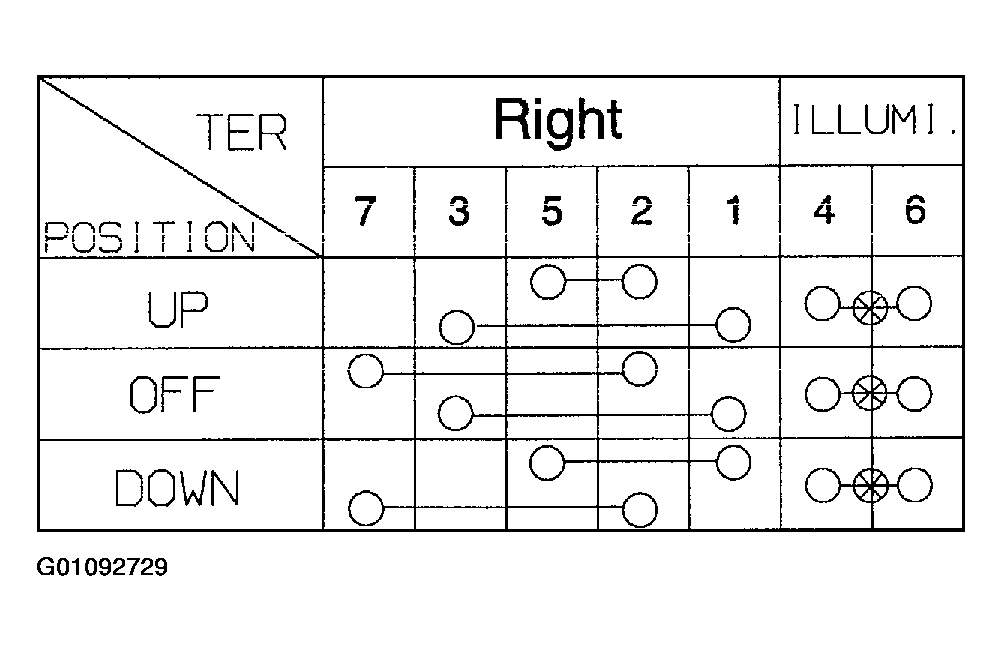

Fig 1: Testing Power Window Sub Switch Continuity
Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Illustrating Power Window Sub Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
