Special Service Tools

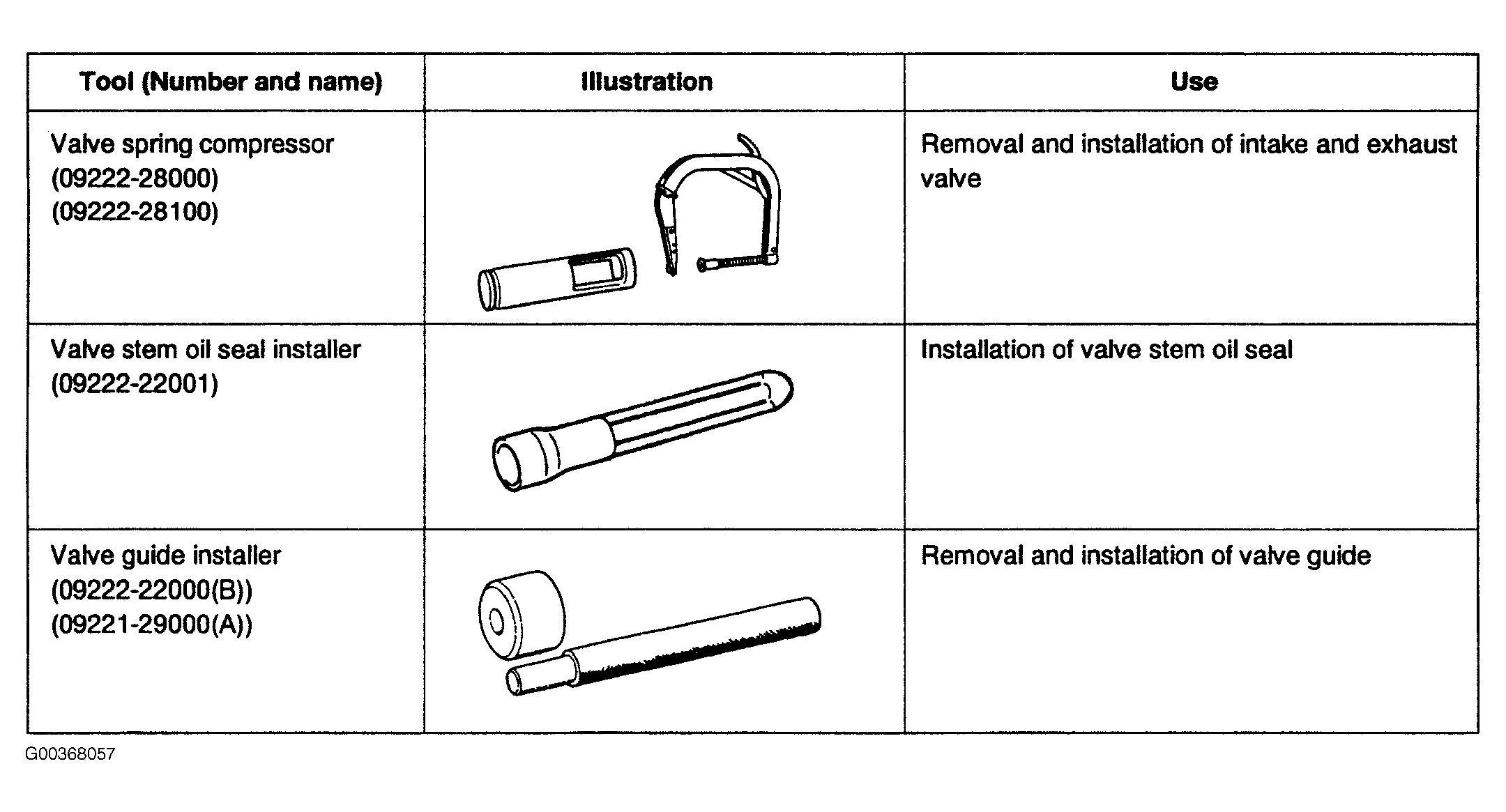

Fig 1: Special Service Tools
G00368057Courtesy of KIA MOTORS AMERICA, INC.

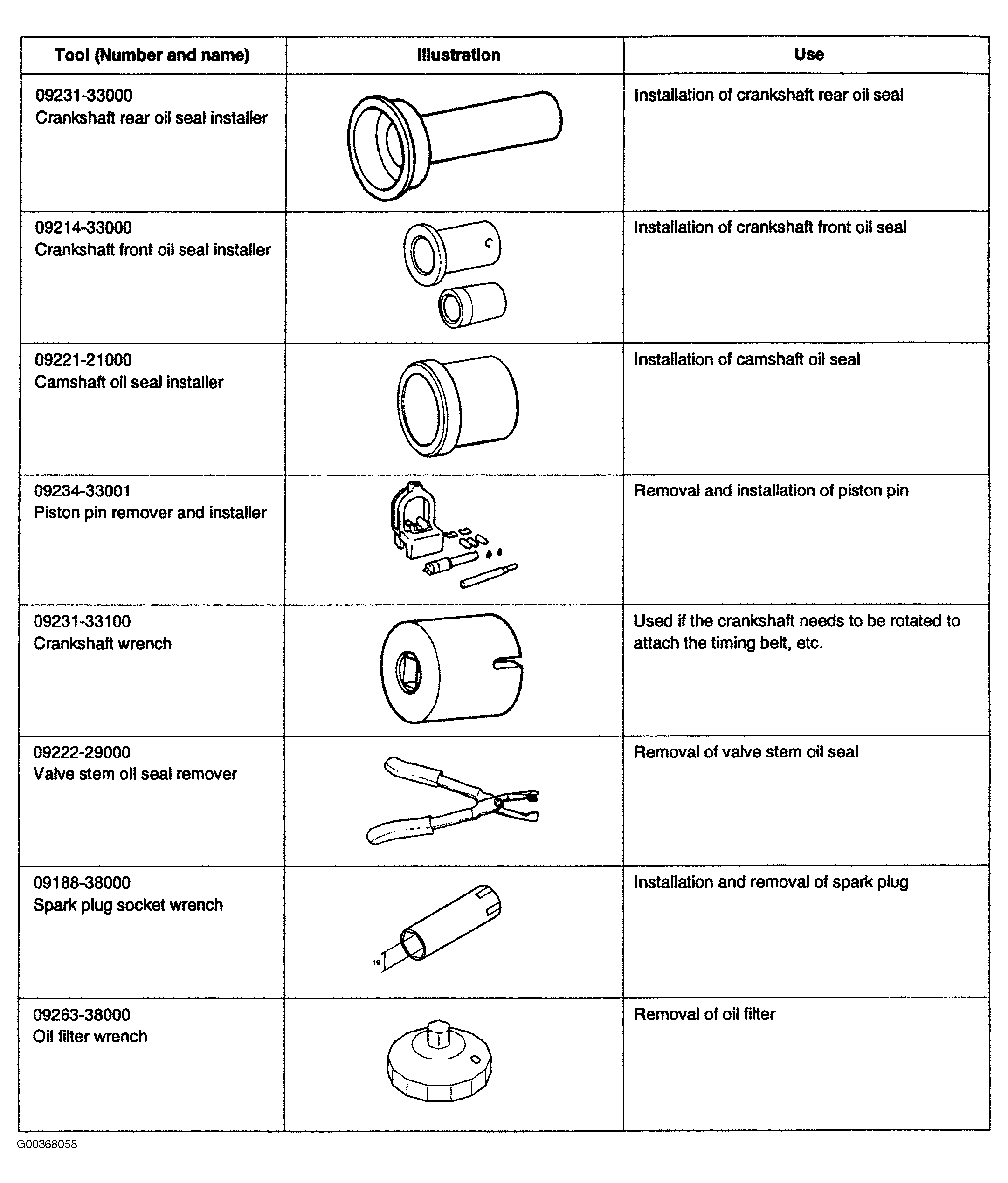

Fig 2: Special Service Tools
G00368058Courtesy of KIA MOTORS AMERICA, INC.
