Kia
>>
2003
>>
Sedona V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Control Assembly, HVAC

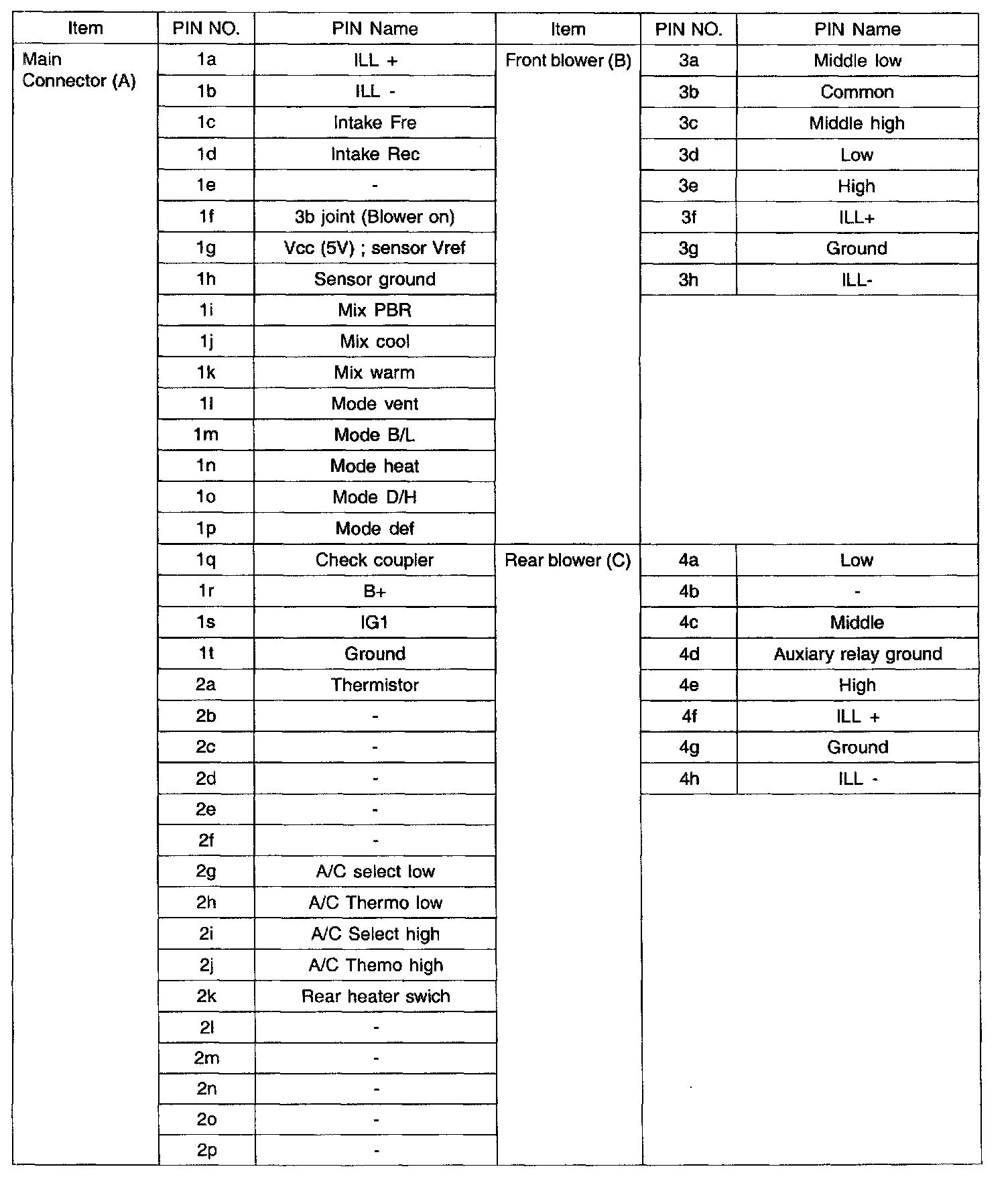

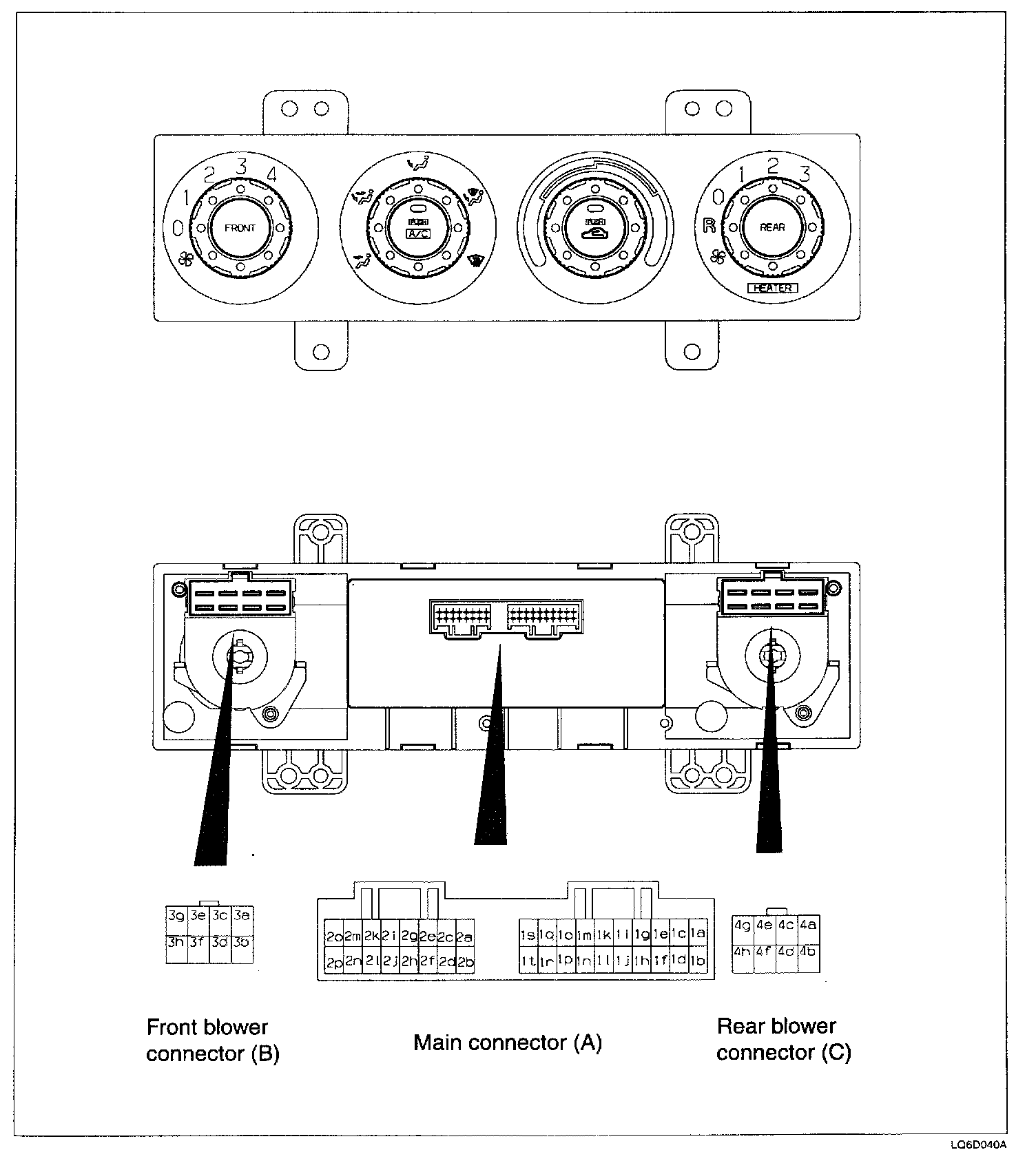

Blower And A/C Controls (Manual) Control Panel - Part 1:
Part 2:
