Connector Locations

Routing View A:




Routing View B-1a:




Routing View B-2:




Routing View C-1a:

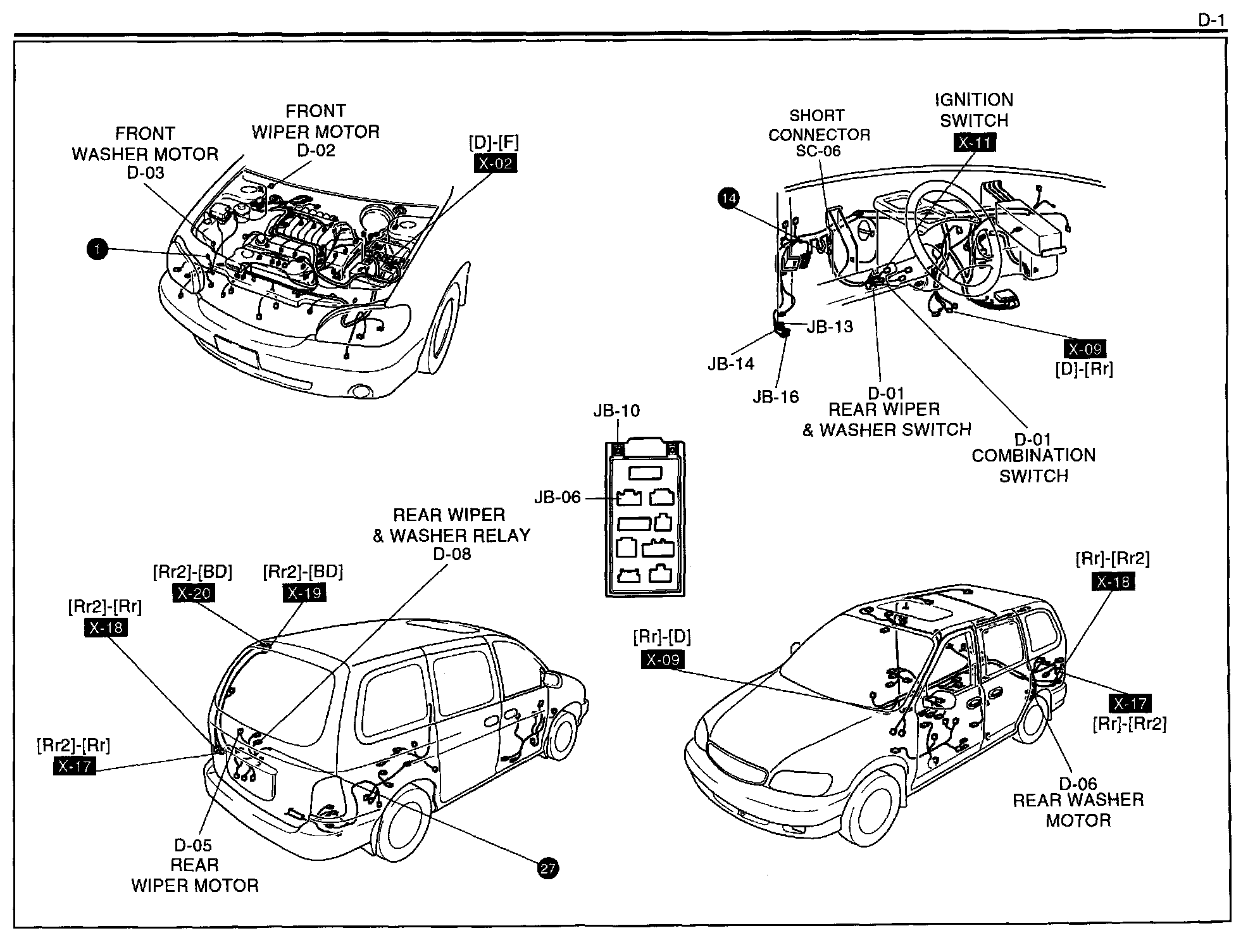

Routing View D-1:

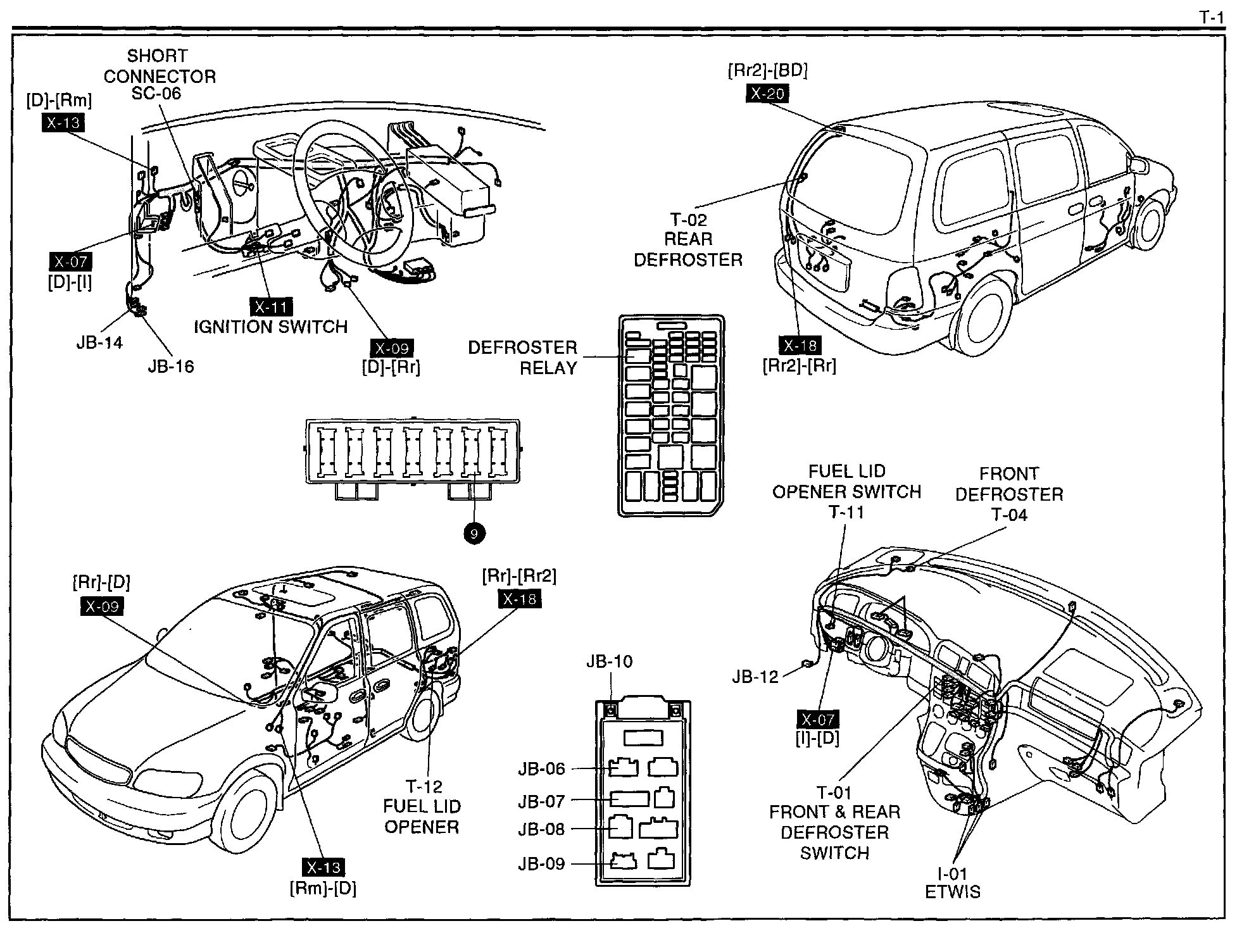

Routing View T-1:
