Anti-Lock Braking System Control Module: Components

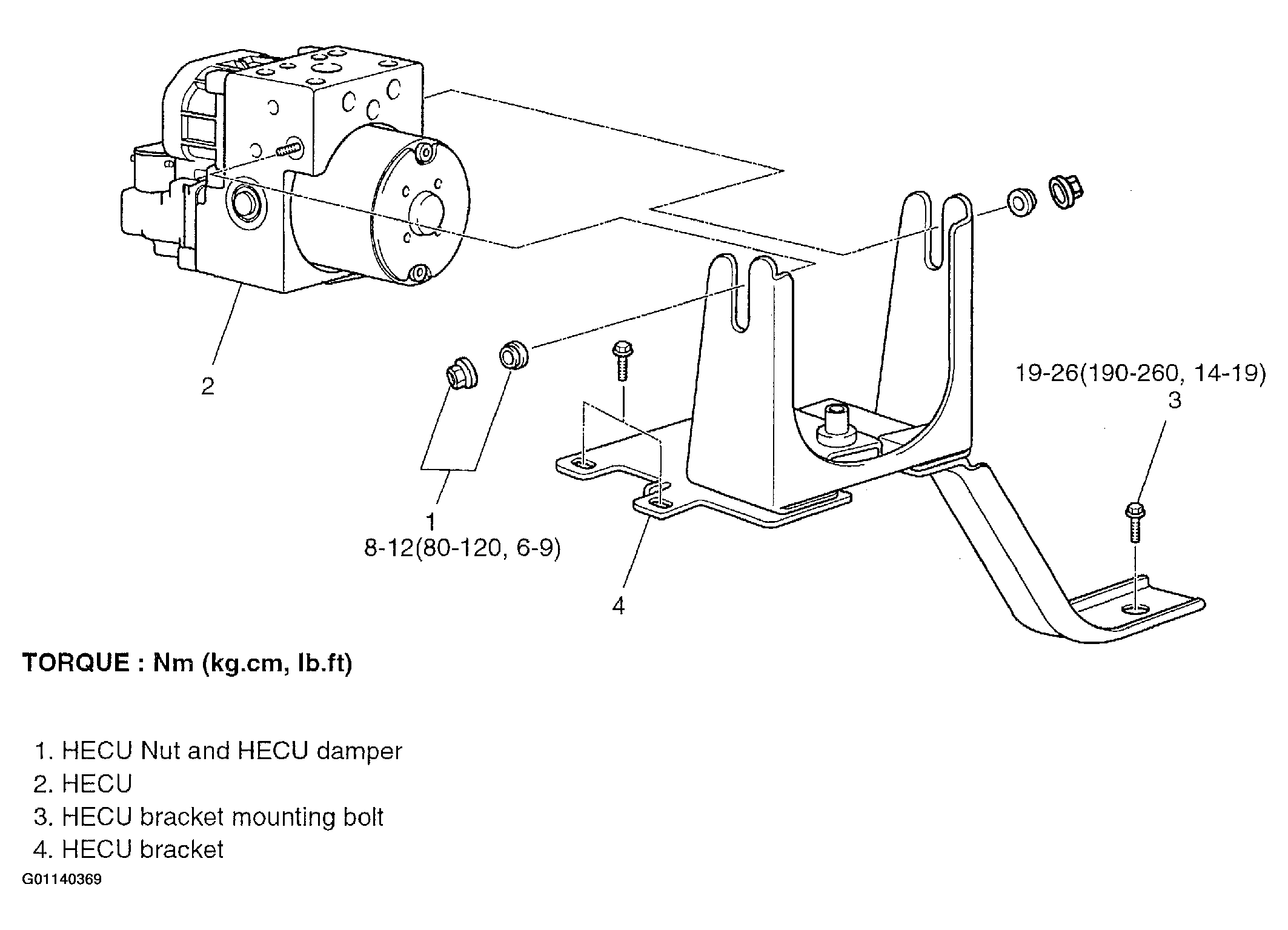

Fig 1: Illustrating Braking System Control Module Components
G01140369Courtesy of KIA MOTORS AMERICA, INC.
