Removal And Installation: Removal

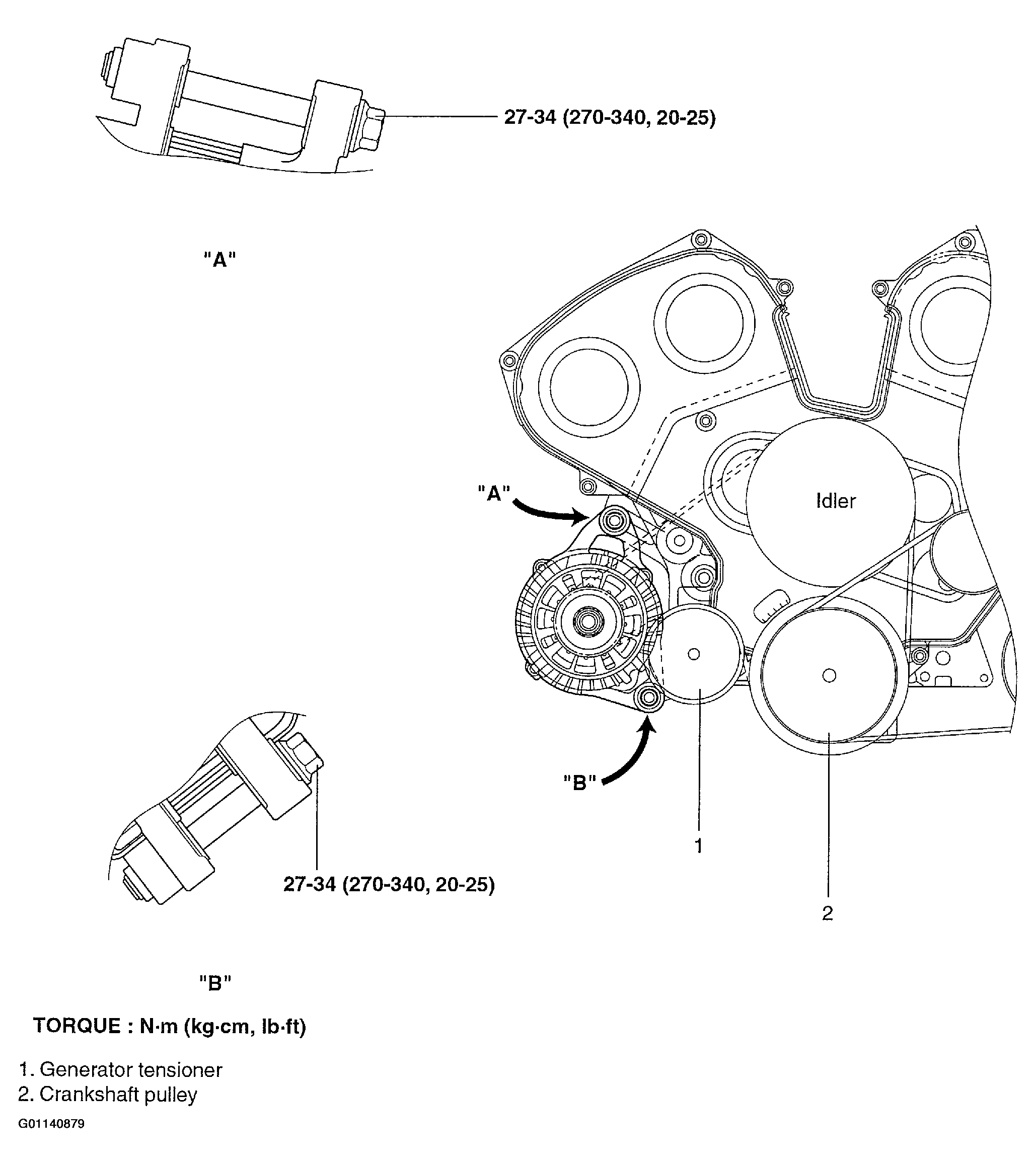

Fig 1: Illustrating Generator Mounting Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
