Control Assembly: Description and Operation

Automatic A/C

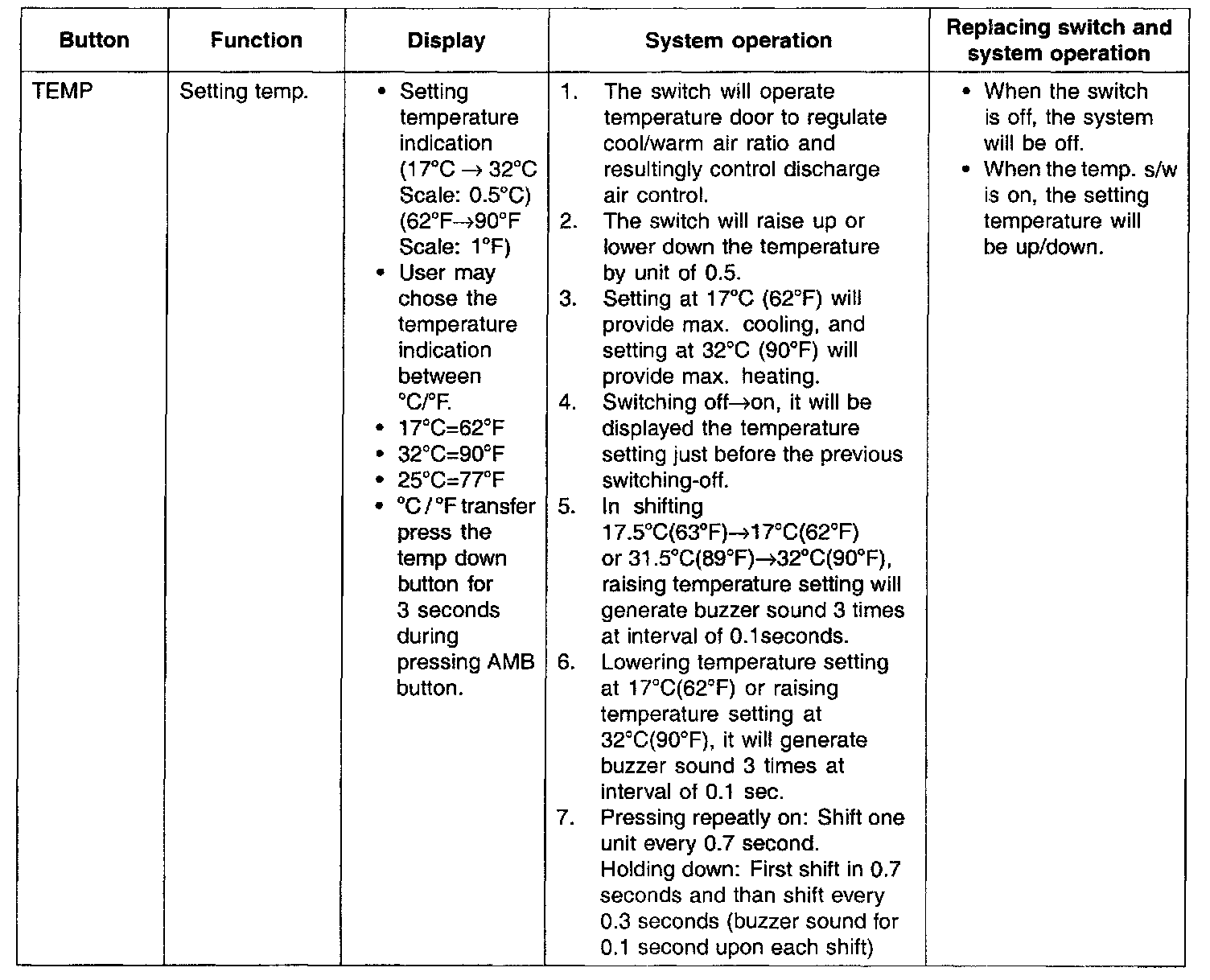

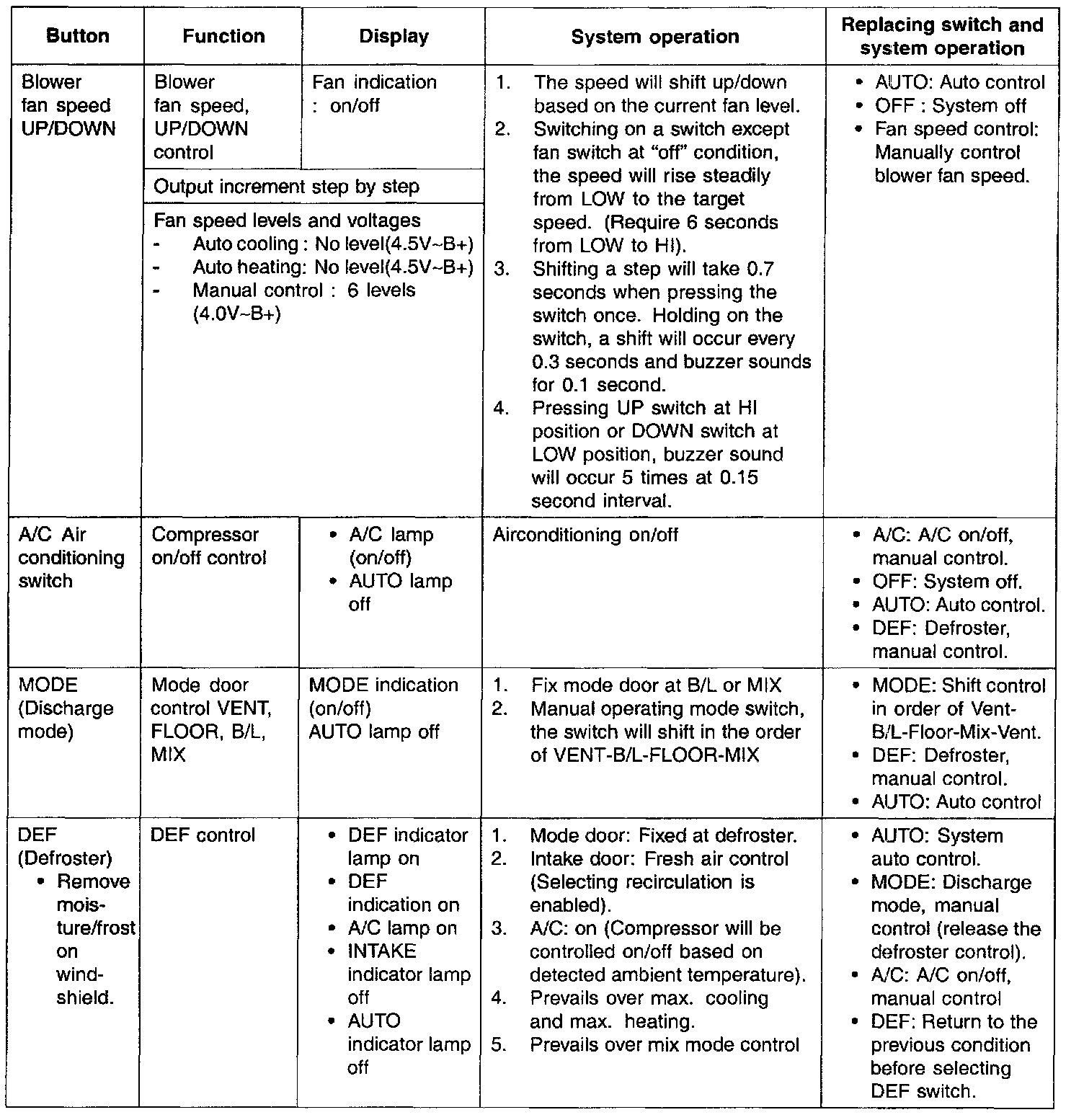

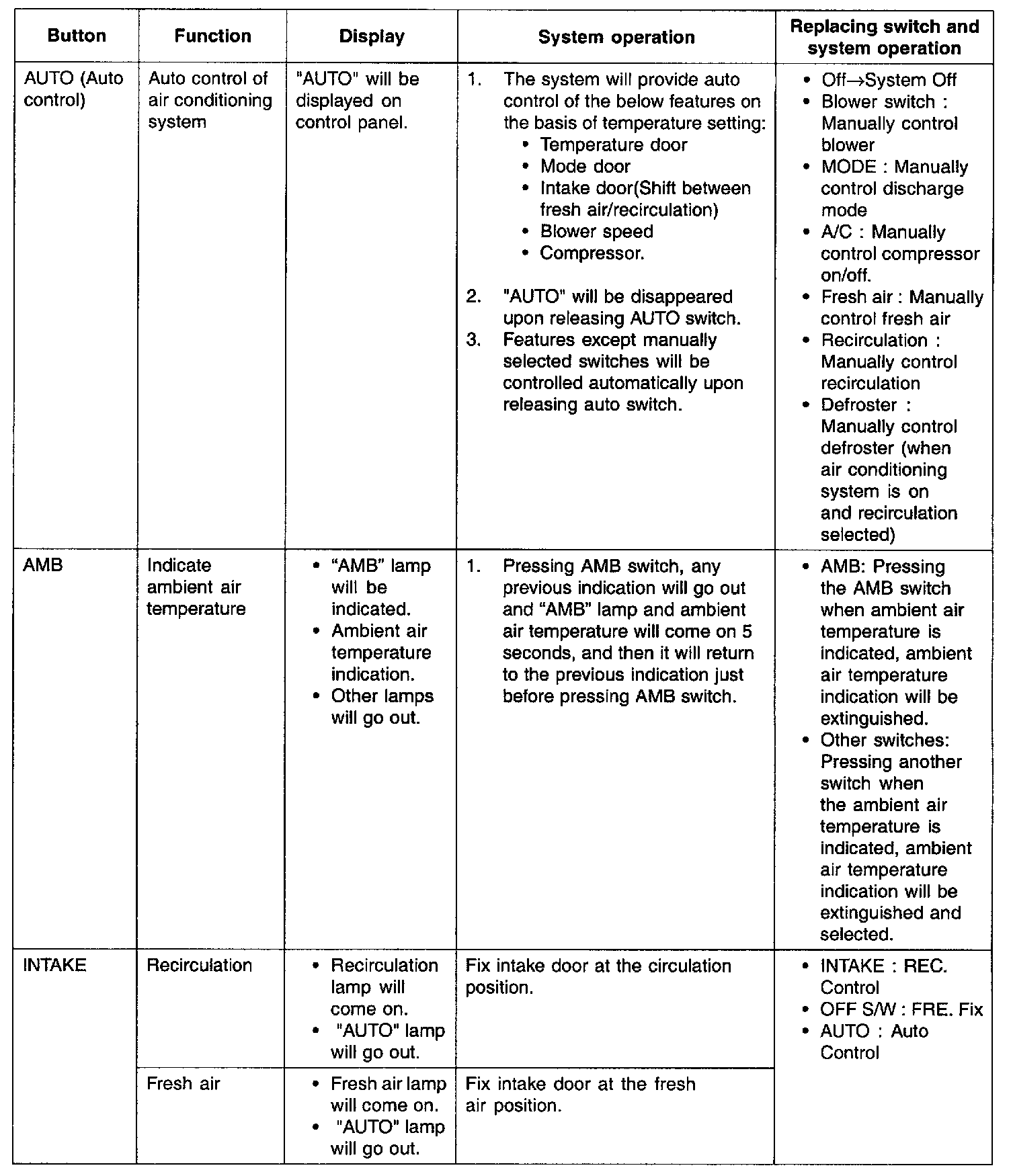

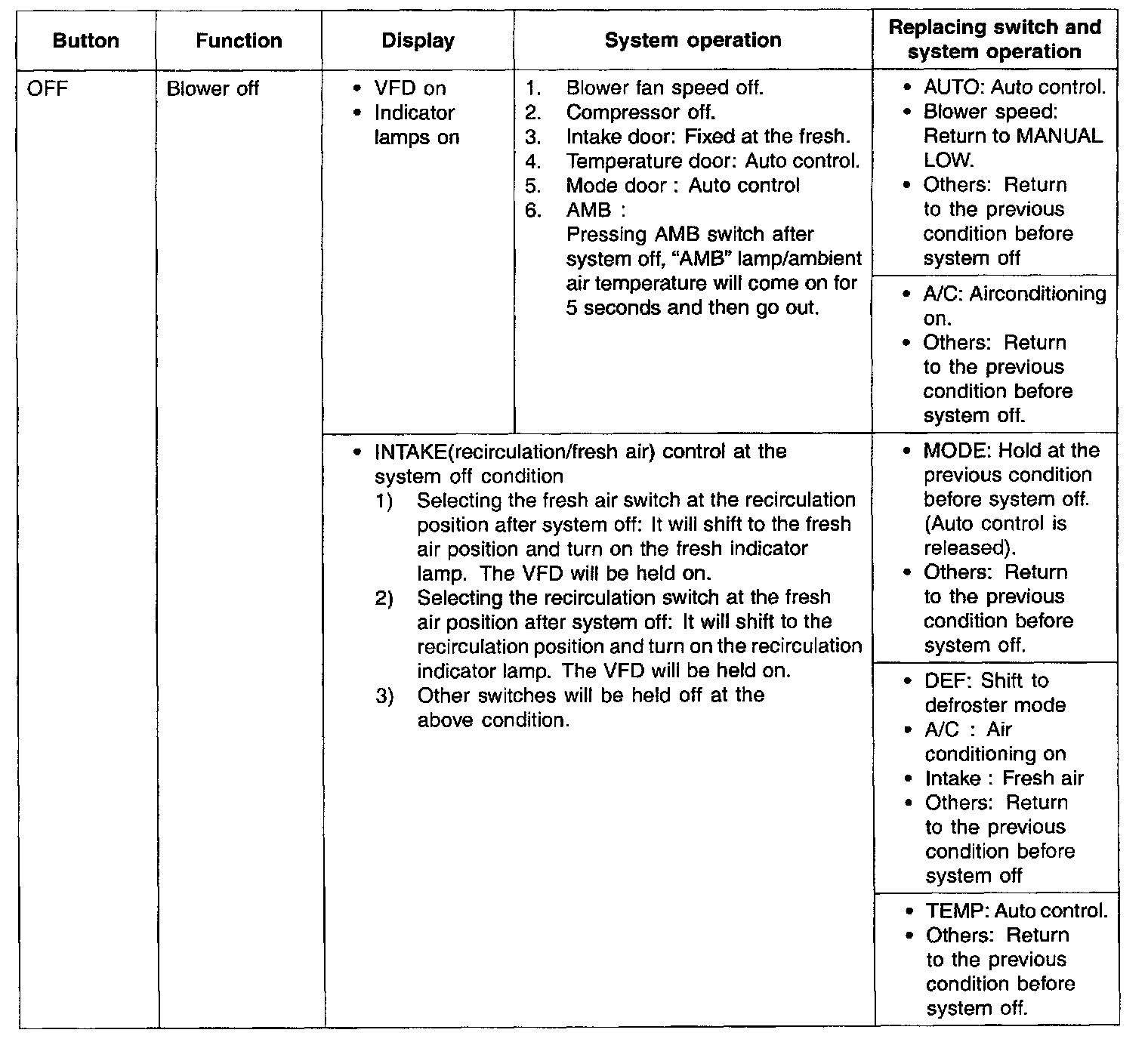

SWITCH OPERATION AND FEATURES

CONTROL PANEL SWITCHES WILL GENERATE BUZZER SOUND ON OPERATION:

1. Full auto air conditioning system: One-touch button type.
2. Manual air conditioning system: Combination of dial switch and one-touch button.
