Removal & Installation

Remove A/C and P/S drive belt, if equipped.
Loosen generator mounting bolt and adjusting bolt.
Remove generator belt.
Install new generator belt and adjust to specification.
Tighten all bolts to specified torque.
1. Tightening torque
  1. Mounting bolt: 27~38 lb-ft (37~52 N.m, 3.8~5.3 kg-m)
  2. Adjusting bolt: 14-18 lb-ft (19-26 N.m, 1.9-2.6 kg-m)
Install A/C and P/S drive belt, if equipped, and adjust to specification.

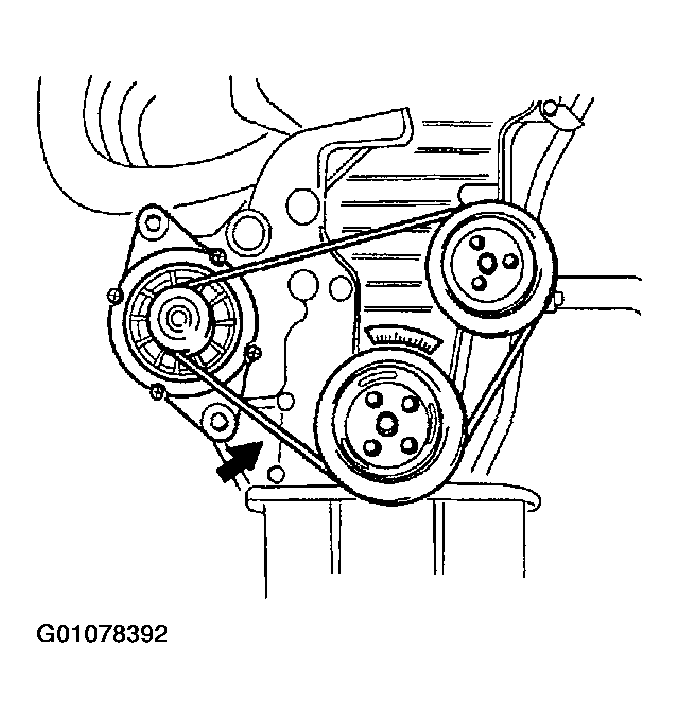

Fig 1: Illustrating Tension Measuring Point
Courtesy of KIA MOTORS AMERICA, INC.
