Shift Lever: Component

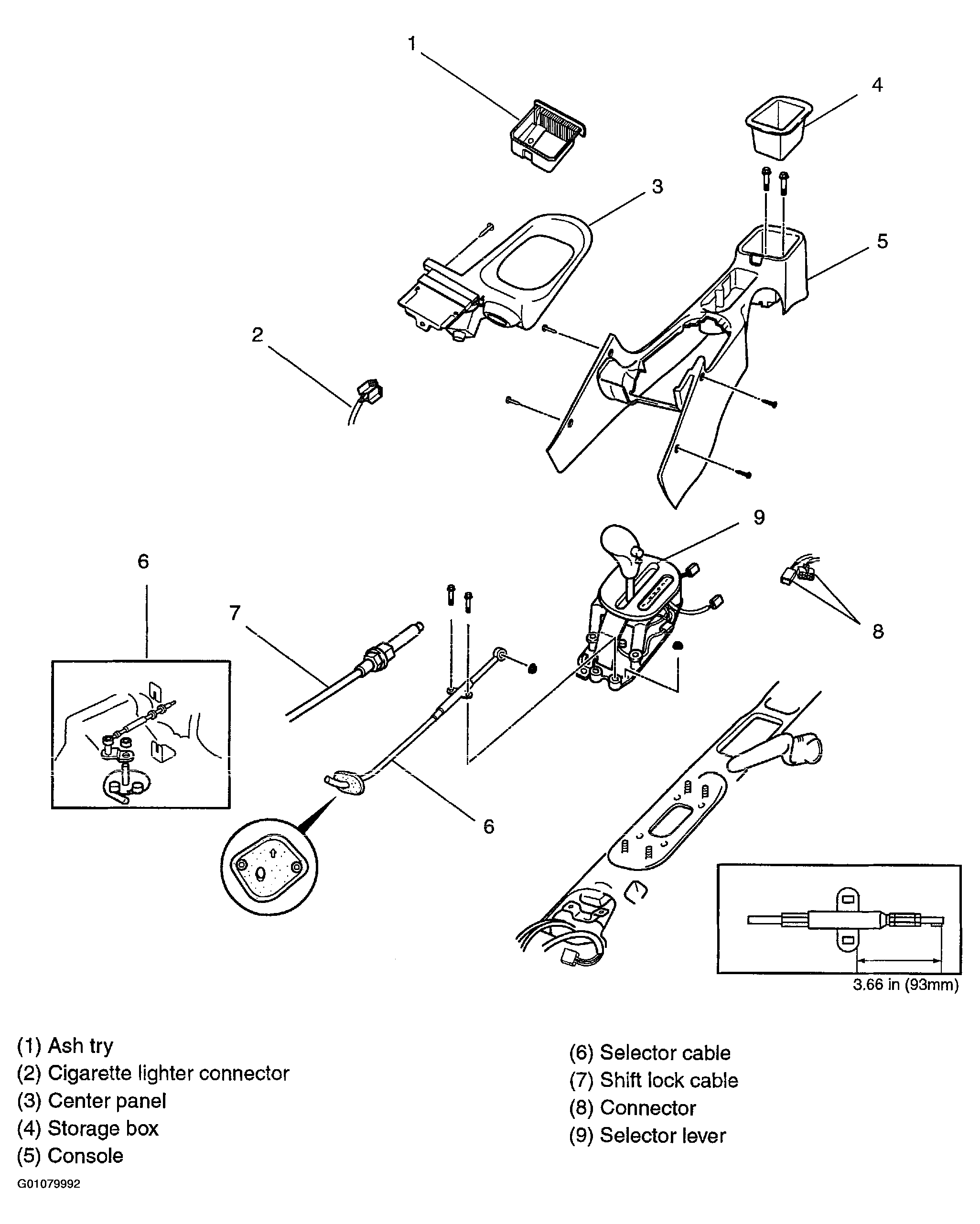

Fig 1: Illustrating Shift Lever Components
G01079992Courtesy of KIA MOTORS AMERICA, INC.

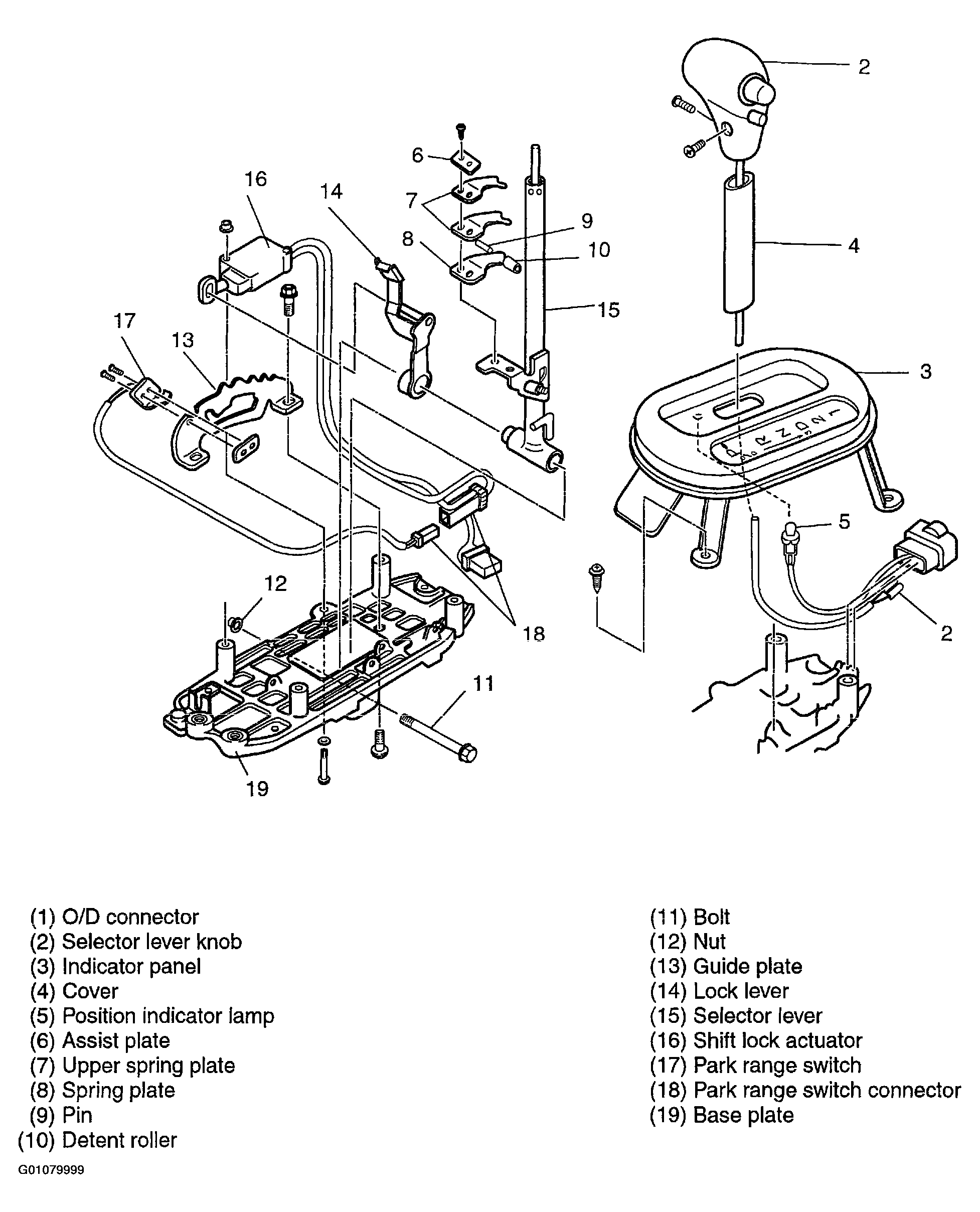

Fig 1: Illustrating Shift Lever Components
G01079999Courtesy of KIA MOTORS AMERICA, INC.
