Shift Lever: Removal

  1. Disconnect negative battery cable.
  2. Remove ash tray, then remove two screws.
  3. Disconnect cigarette lighter connector and remove center panel.
  4. Remove storage box.
  5. Remove two console bolts and four screws and remove console.

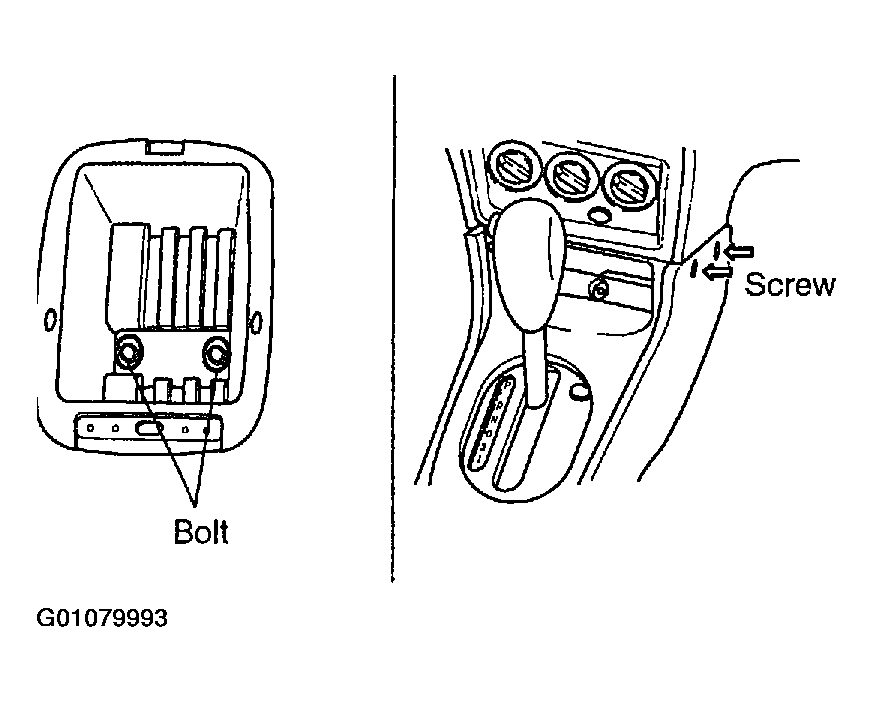

    Fig 1: Removing Two Console Bolts And Four Screws And Remove Console
    G01079993Courtesy of KIA MOTORS AMERICA, INC.
  6. Shift selector lever to P range.
  7. Remove two selector cable mounting bolts.
  8. Remove selector cable nut.
  9. Loosen shift lock cable nut, then remove shift lock cable.

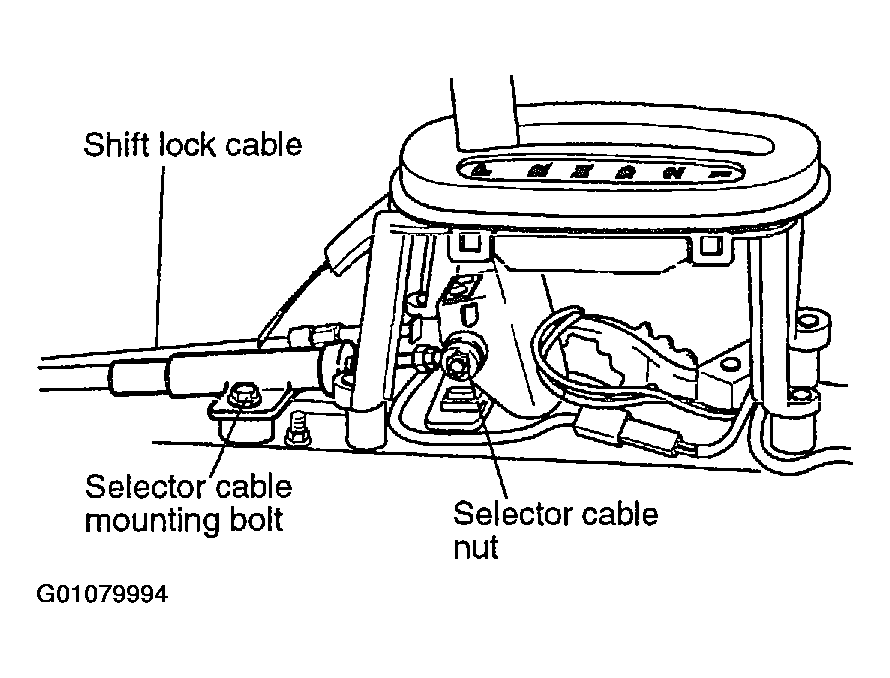

    Fig 2: Loosening Shift Lock Cable Nut, Then Remove Shift Lock Cable
    G01079994Courtesy of KIA MOTORS AMERICA, INC.
  10. Disconnect two connectors.

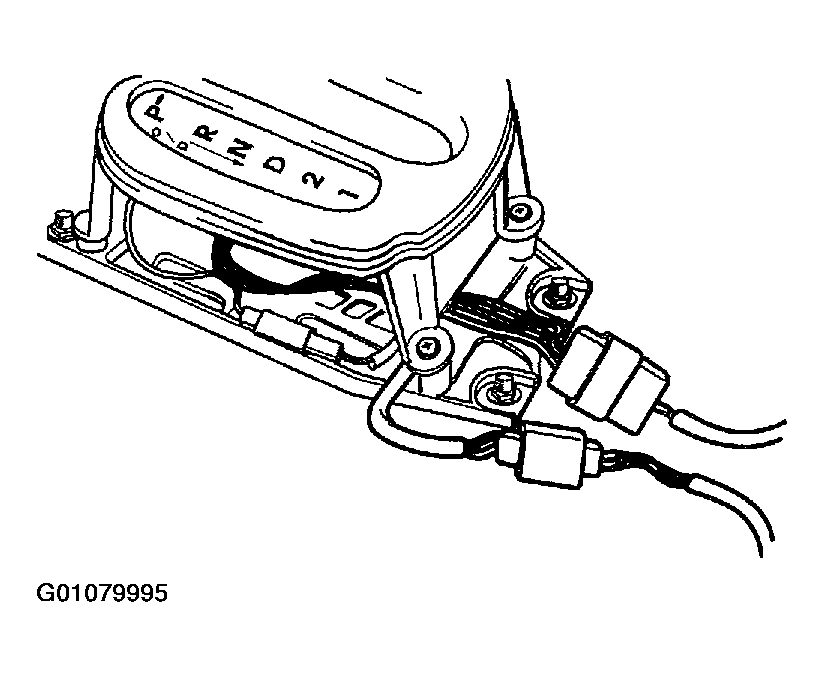

    Fig 3: Disconnecting Two Connectors
    G01079995Courtesy of KIA MOTORS AMERICA, INC.
  11. Remove four selector base plate nuts and remove selector lever assembly.
    Fig 4: Removing Four Selector Base Plate Nuts And Remove Selector Lever Assembly
    G01079996Courtesy of KIA MOTORS AMERICA, INC.
