Oil Pump: Component

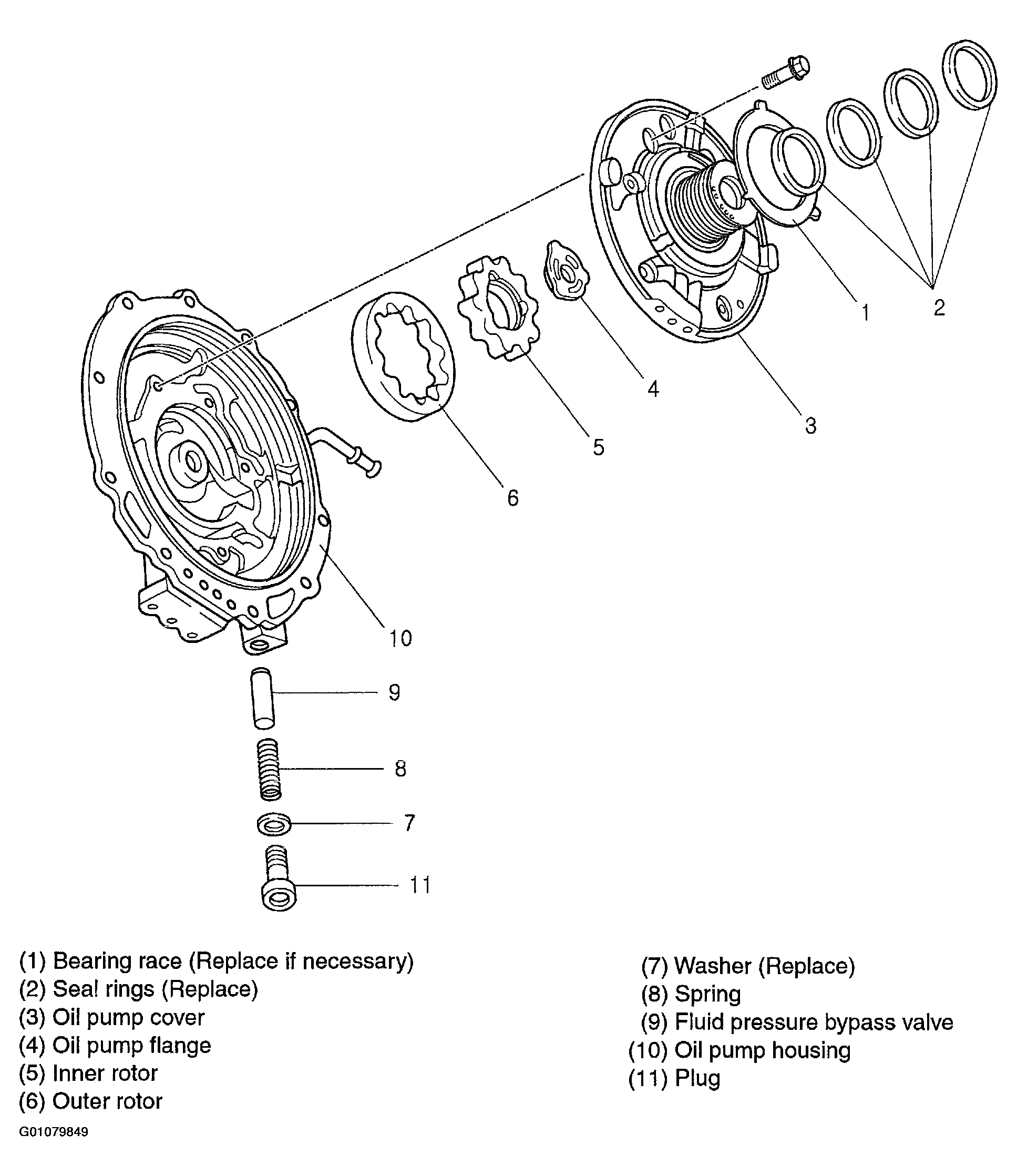

Fig 1: Illustrating Oil Pump Components

G01079849

Courtesy of KIA MOTORS AMERICA, INC.
