Shift Lock System Components

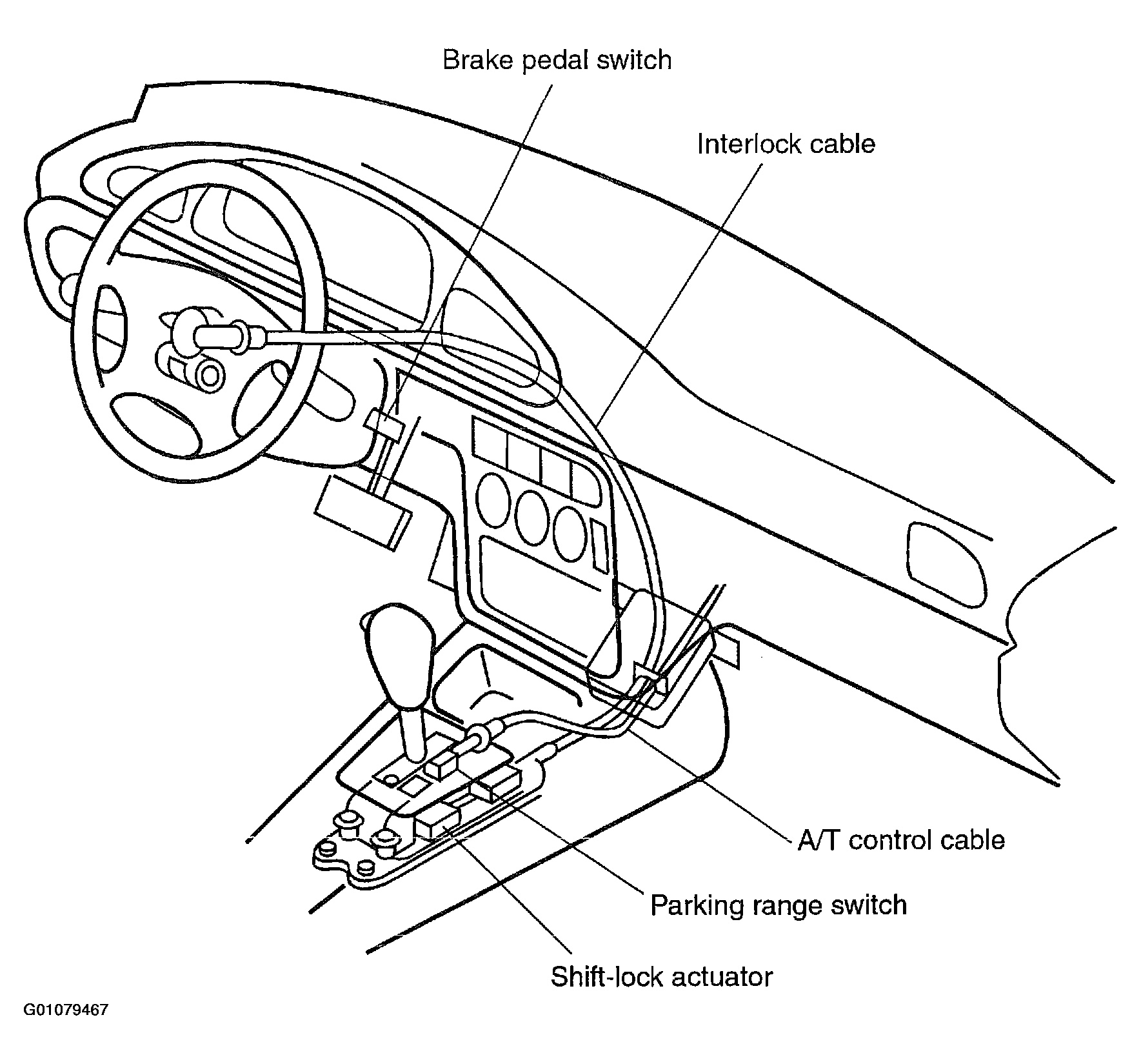

Fig 1: Illustrating Shift Lock System Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
