Indicators & Gauges: Components: Notes

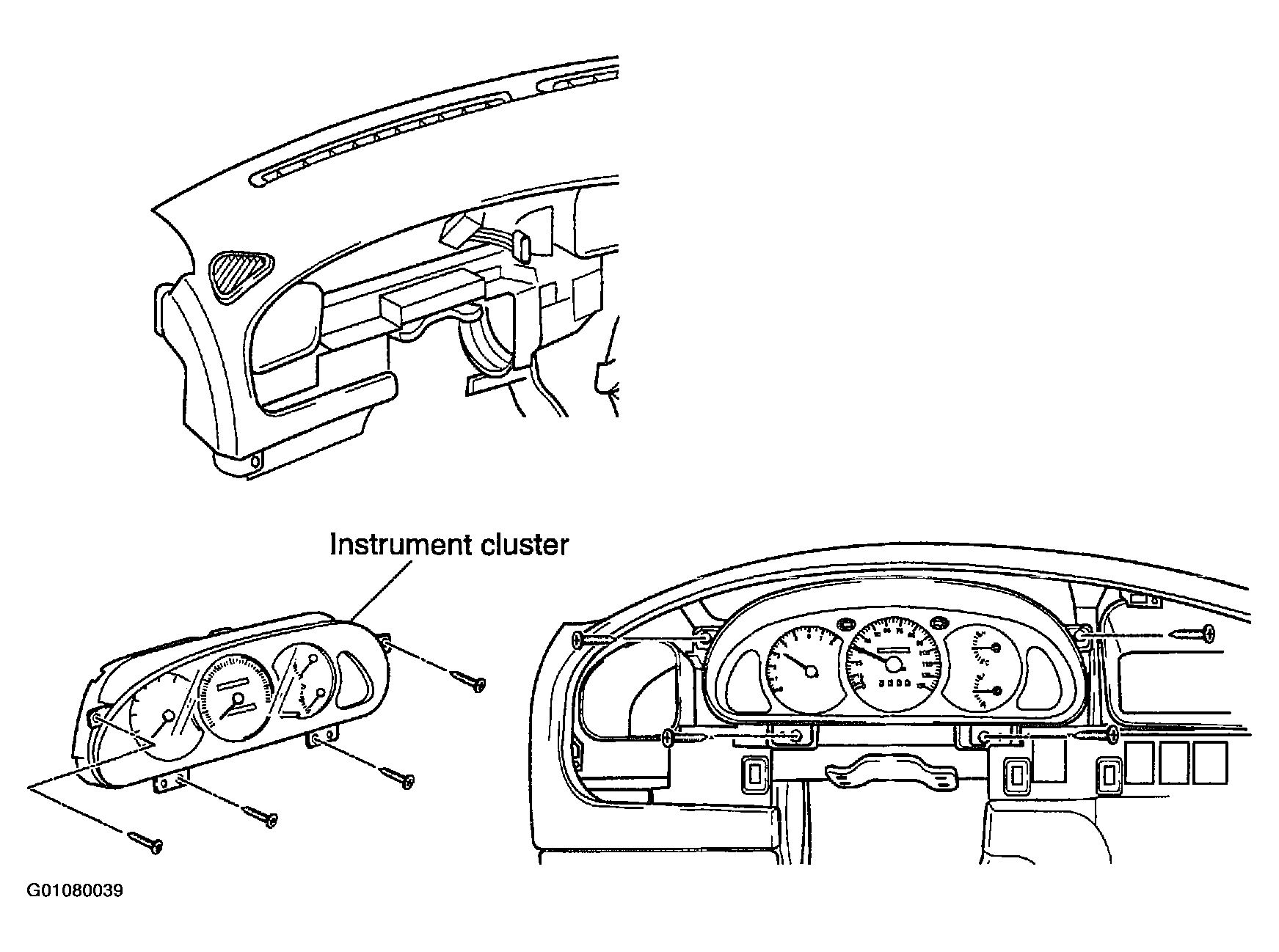

Fig 1: Identifying Instrument Cluster & Gauges (4 Door)
Courtesy of KIA MOTORS AMERICA, INC.

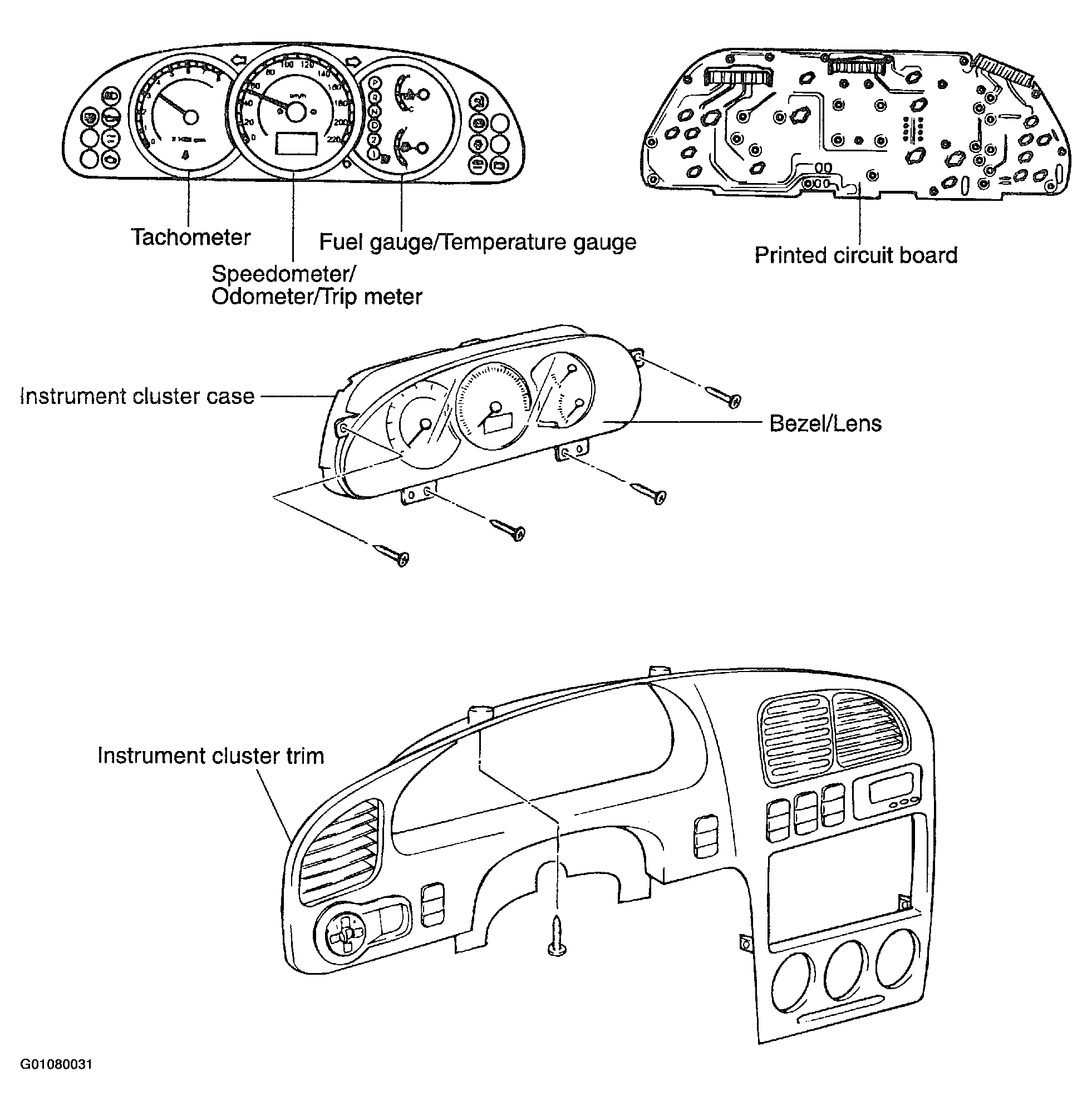

Fig 2: Identifying Instrument Cluster & Gauges (5 Door)
Courtesy of KIA MOTORS AMERICA, INC.

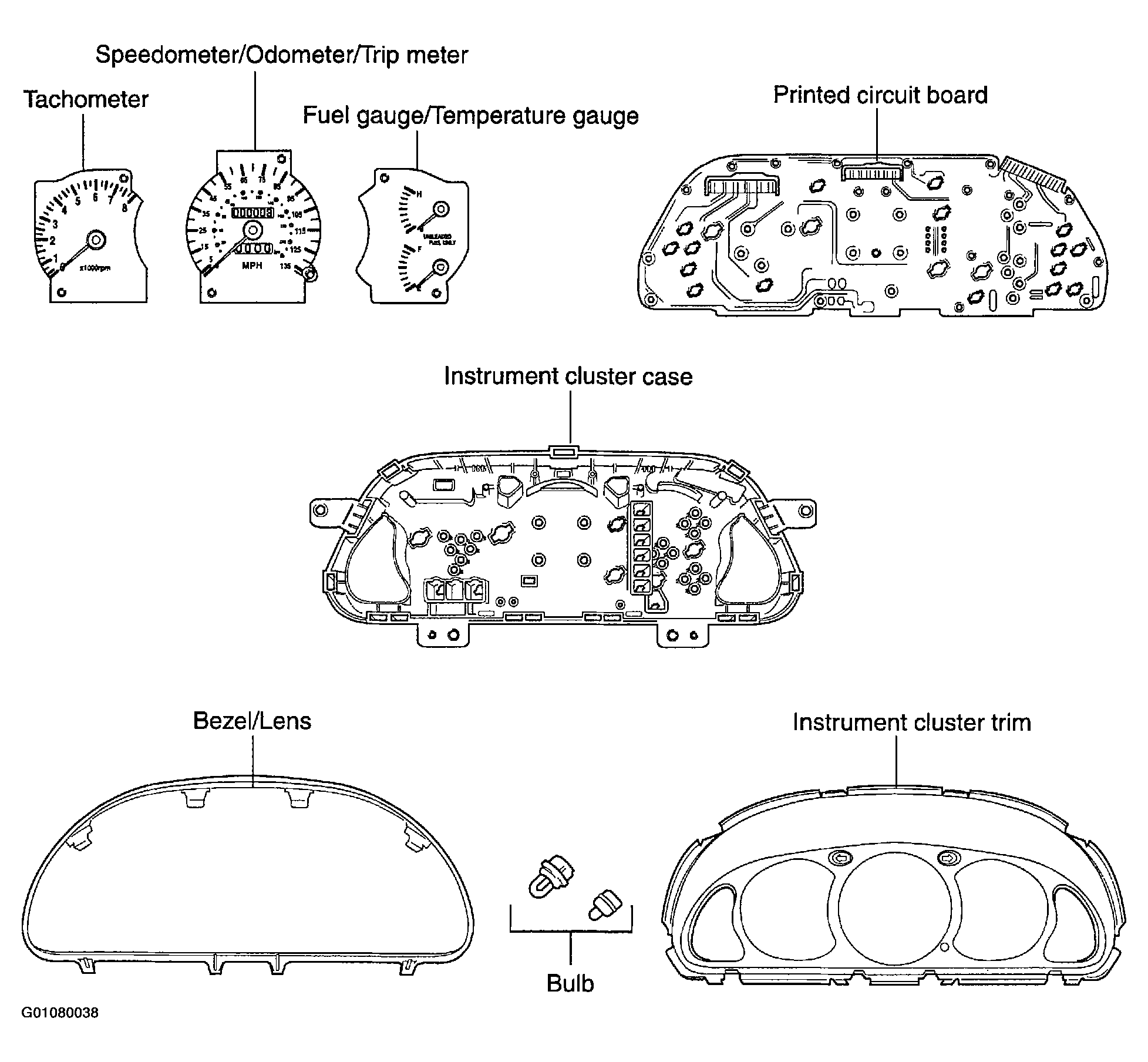

Fig 3: Identifying Instrument Cluster & Gauges (5 Door)
Courtesy of KIA MOTORS AMERICA, INC.
