Description And Operation

Outside rearview mirror assembly is comprised of mirror glass, a mirror frame (which holds mirror glass), a motor, a wire harness, and garnish. Each outside rearview mirror can be adjusted in four directions from inside vehicle.

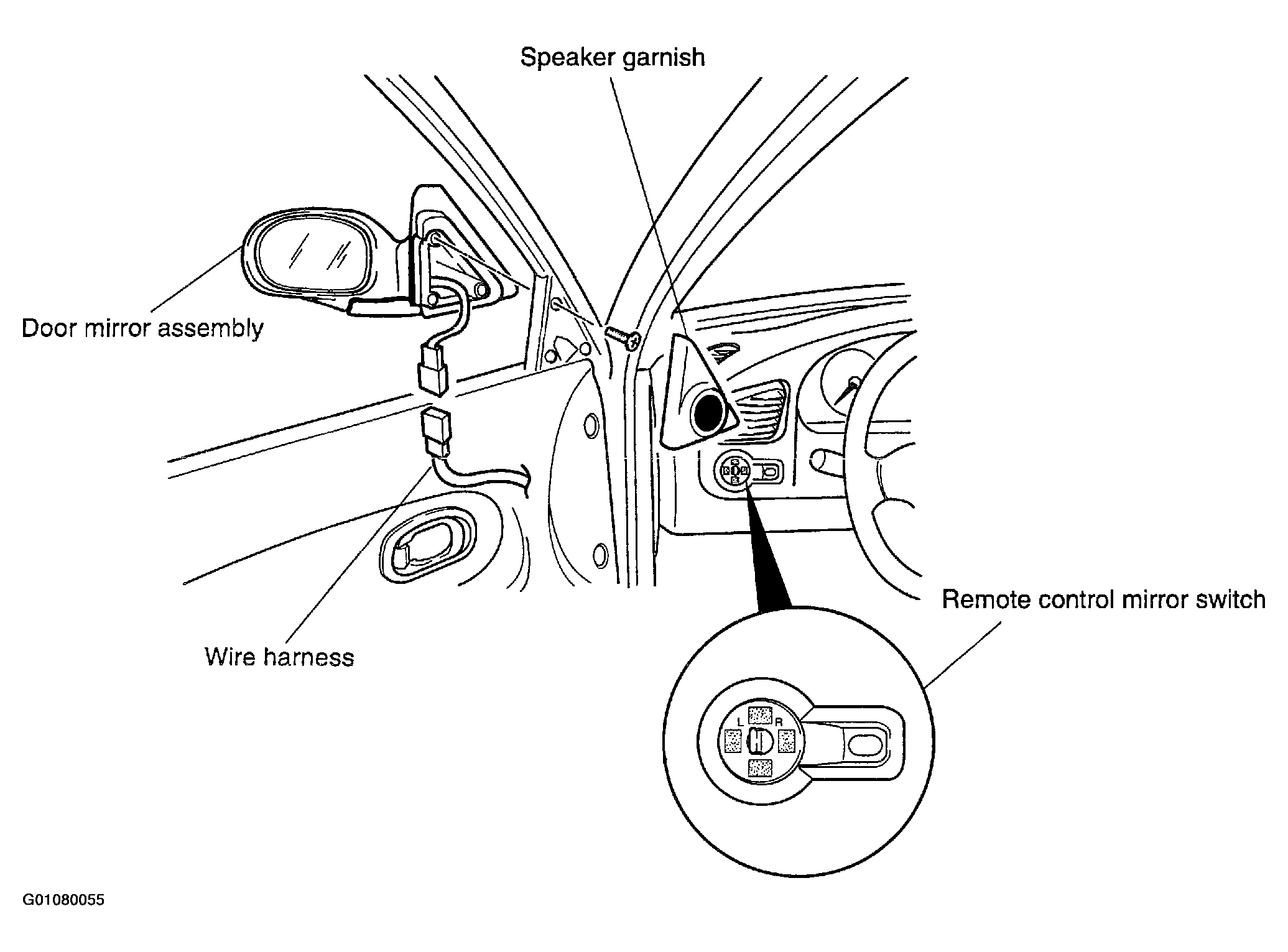

Fig 1: Identifying Power Door Mirror Components
G01080055Courtesy of KIA MOTORS AMERICA, INC.
