Front Drive Shaft: Replacement

NOTE: Do not damage dust cover or oil seal.

Install driveshaft with circular clip gap facing upward as shown.

Fig 1: Installing Driveshaft With Circular Clip Gap Facing Upward
Courtesy of KIA MOTORS AMERICA, INC.

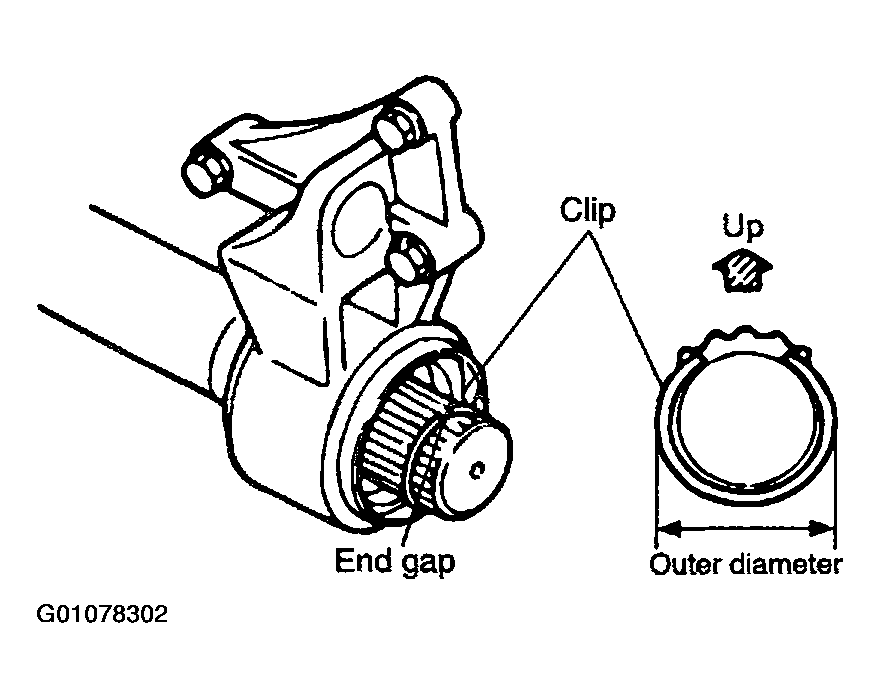

Install a new clip so that opening is facing upward.
Measure outer diameter of clip after installing, and replace clip if it exceeds specification.
Outer diameter: 1.181 in (30 mm)

Fig 2: Measuring Outer Diameter Of Clip
Courtesy of KIA MOTORS AMERICA, INC.
Install CV joint shaft support and tighten three bolts in order shown.
Tightening torque: 31-46 lb.ft (42-62 N.m, 4.3-6.3 kg.m

Fig 3: Installing CV Joint Shaft Support
Courtesy of KIA MOTORS AMERICA, INC.
Push driveshaft onto CV joint shaft.
After installation, pull front hub outward to verify that driveshaft is securely held by circular clip.

Fig 4: Testing Driveshaft Position
Courtesy of KIA MOTORS AMERICA, INC.
Apply transmission fluid oil around oil seal lip, and push driveshaft into transaxle.
NOTE: Do not damage dust boot. Do not damage oil seal of transaxle and CV joint shaft.

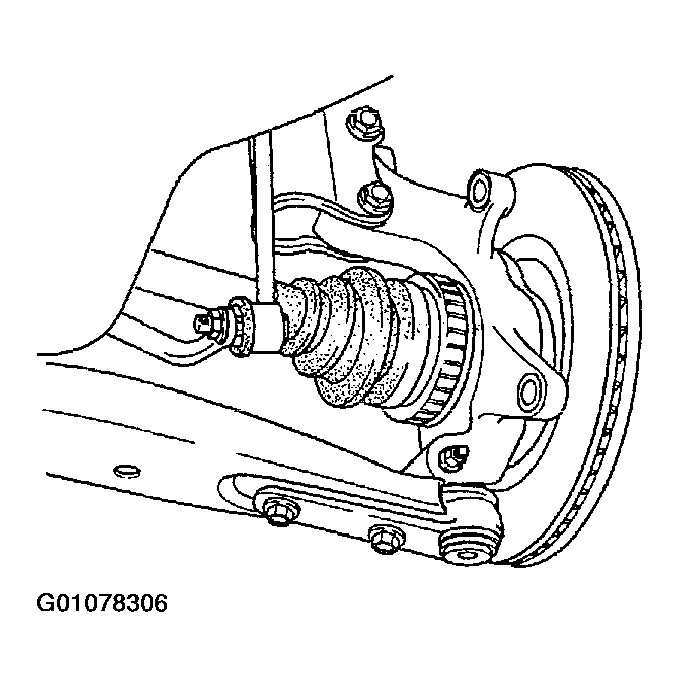

Install nut and secure it with a new cotter pin.
Tightening torque: 21-32 lb.ft (29-44 N.m, 3.0-4.5 kg.m)

Fig 5: Installing Tie Rod End
Courtesy of KIA MOTORS AMERICA, INC.

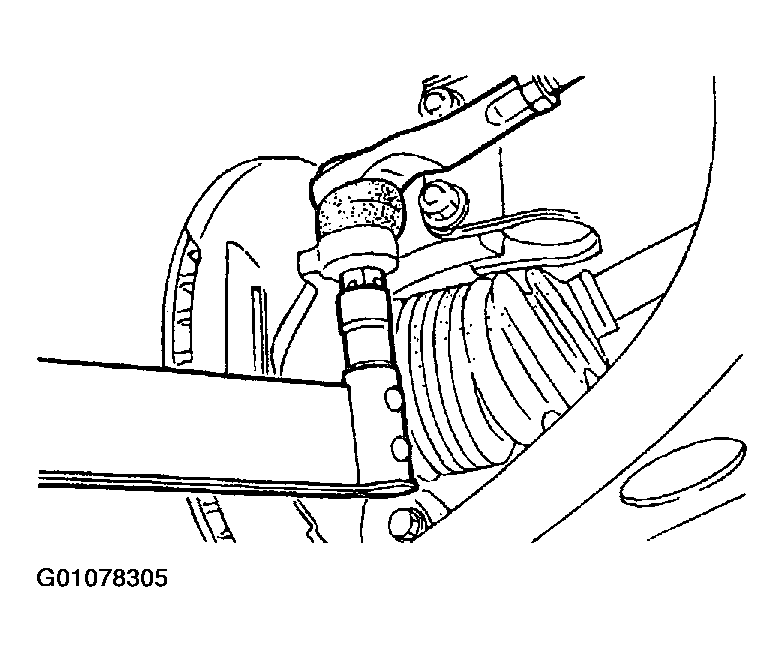

Connect stabilizer bar to control link and tighten control link nut.
Tightening torque: 32-45 lb.ft (43-61 N.m, 4.4-6.2 kg.m)

Fig 6: Connecting Stabilizer Bar To Control Link
Courtesy of KIA MOTORS AMERICA, INC.

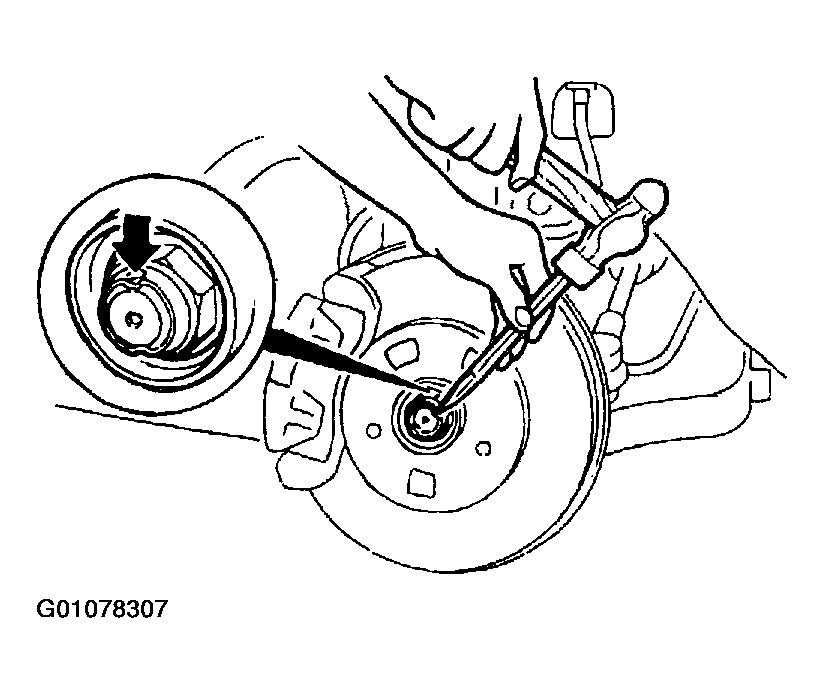

Install a new driveshaft locknut and stake it, as shown.
Tightening torque: 54-205 lb.ft (210-279 N.m, 21.4-28.5 kg.m)

Fig 7: Installing A New Driveshaft Locknut
Courtesy of KIA MOTORS AMERICA, INC.
Install wheel and tire.
Tightening torque: 65-87 lb.ft (88-118 N.m, 9.0-12.0 kg.m)
Lower vehicle.
