Repair and Diagnosis: Electrical: Horns: Troubleshooting

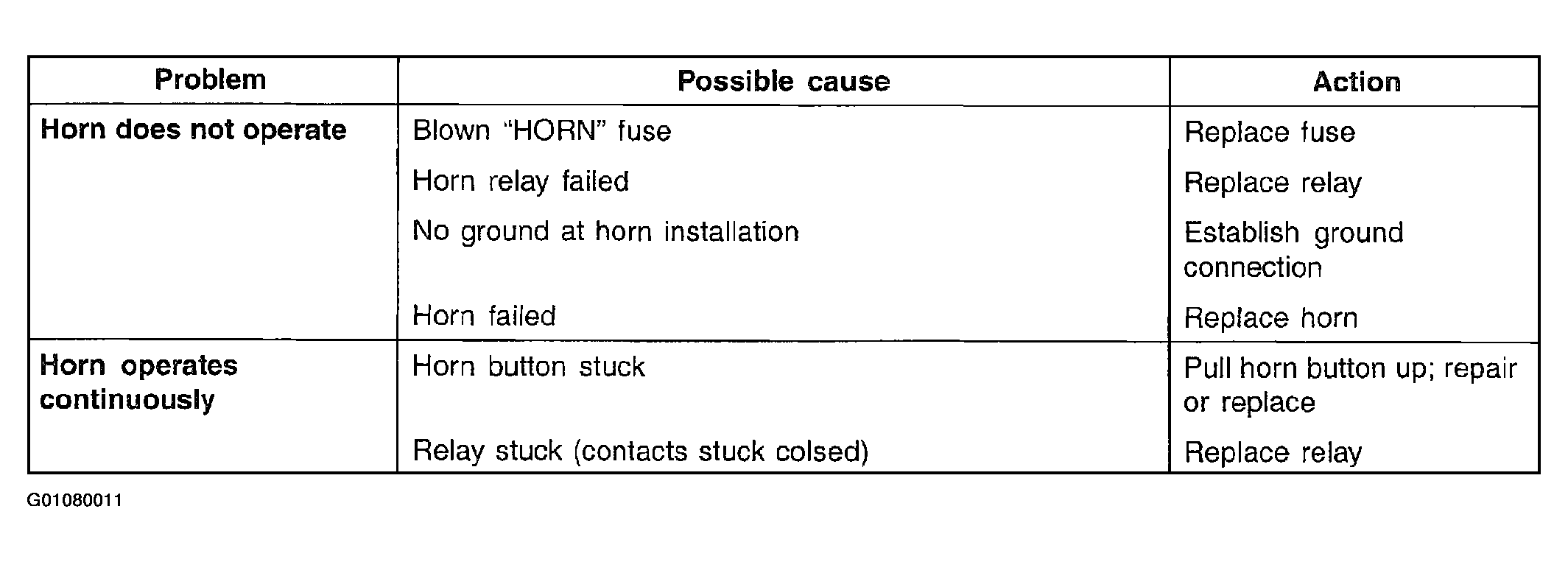

Fig 1: Troubleshooting Horn

Courtesy of KIA MOTORS AMERICA, INC.

See HORN in SYSTEM WIRING DIAGRAMS article for diagnosis of electrical problems.
