Cooling System: Radiator: Inspection

  1. Check for cracks, damage or water leakage.
  2. Check for bent fins. If bent, repair with a fin comb or similar tool.

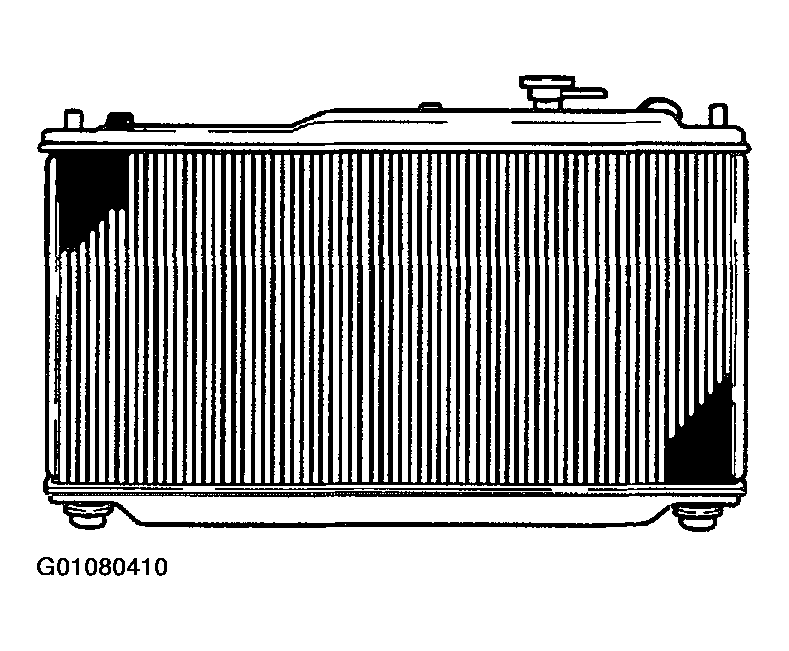

    Fig 1: Inspecting Radiator
    G01080410Courtesy of KIA MOTORS AMERICA, INC.
  3. Check for damaged radiator inlet and outlet and hose connections.
