Timing Belt

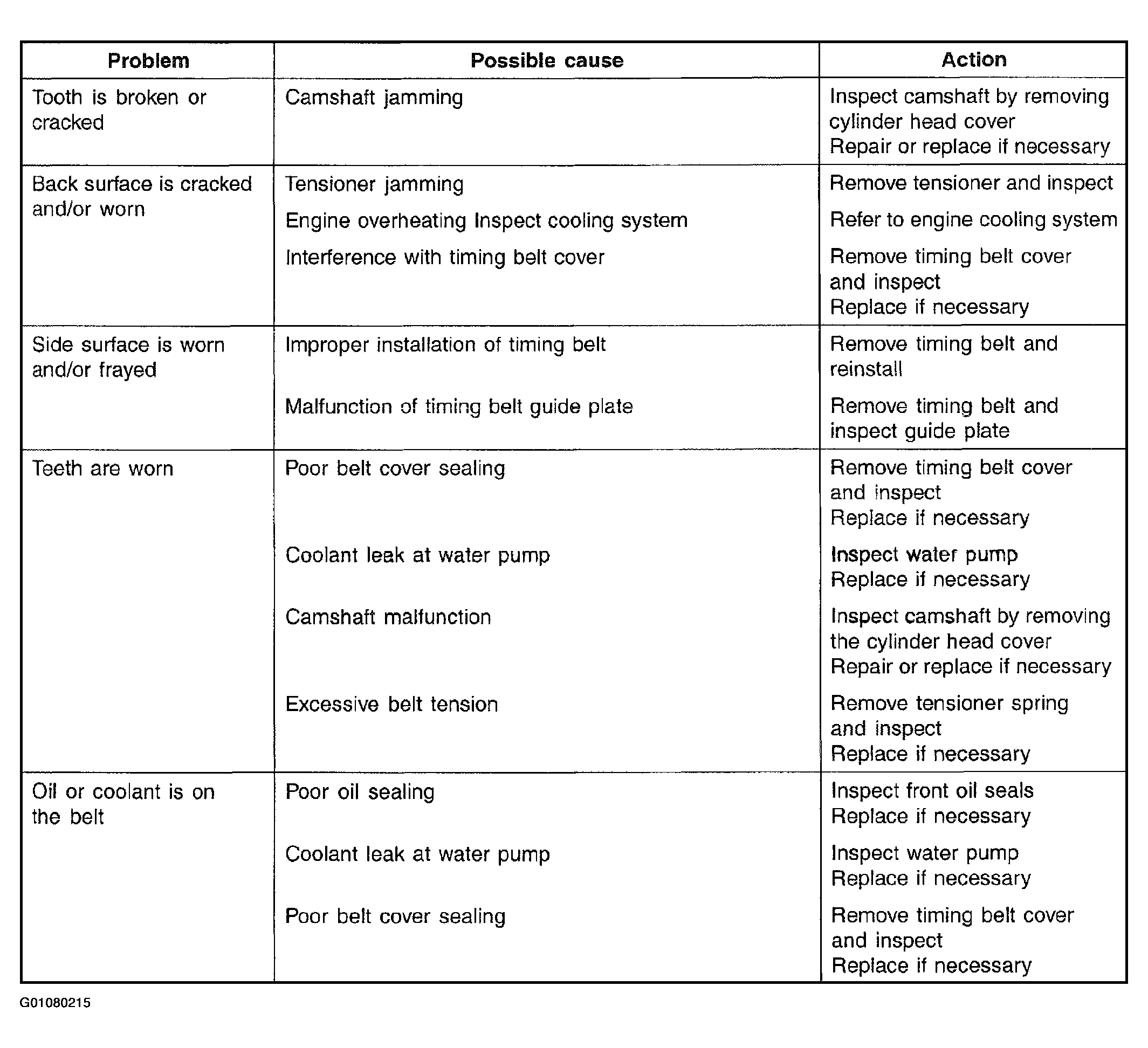

Fig 1: Timing Belt Troubleshooting Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
