Emission Control System

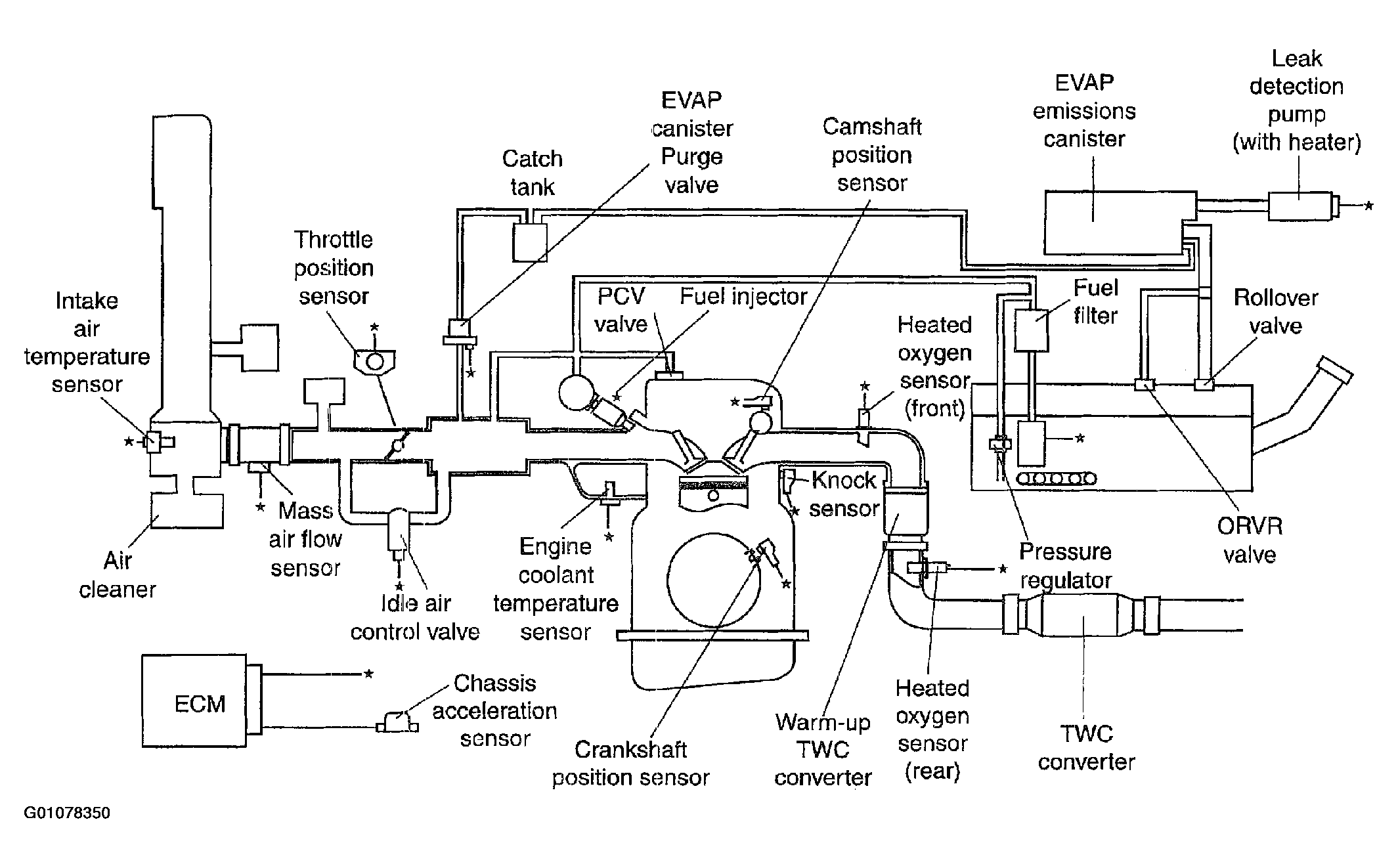

Fig 1: Illustrating Emission Control Systems
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
