Body Control Module

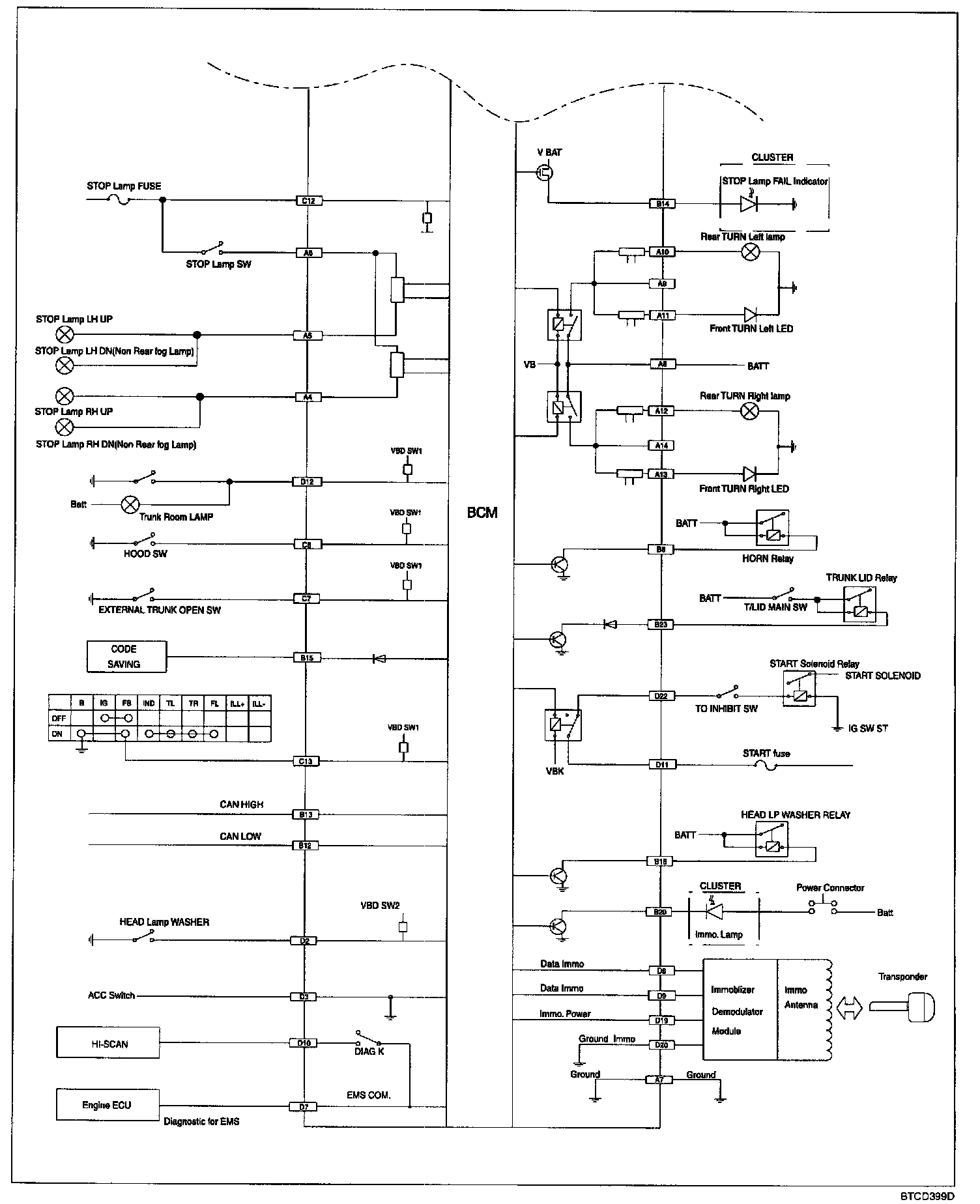

Body Control Module - Circuit Diagram Part 1:

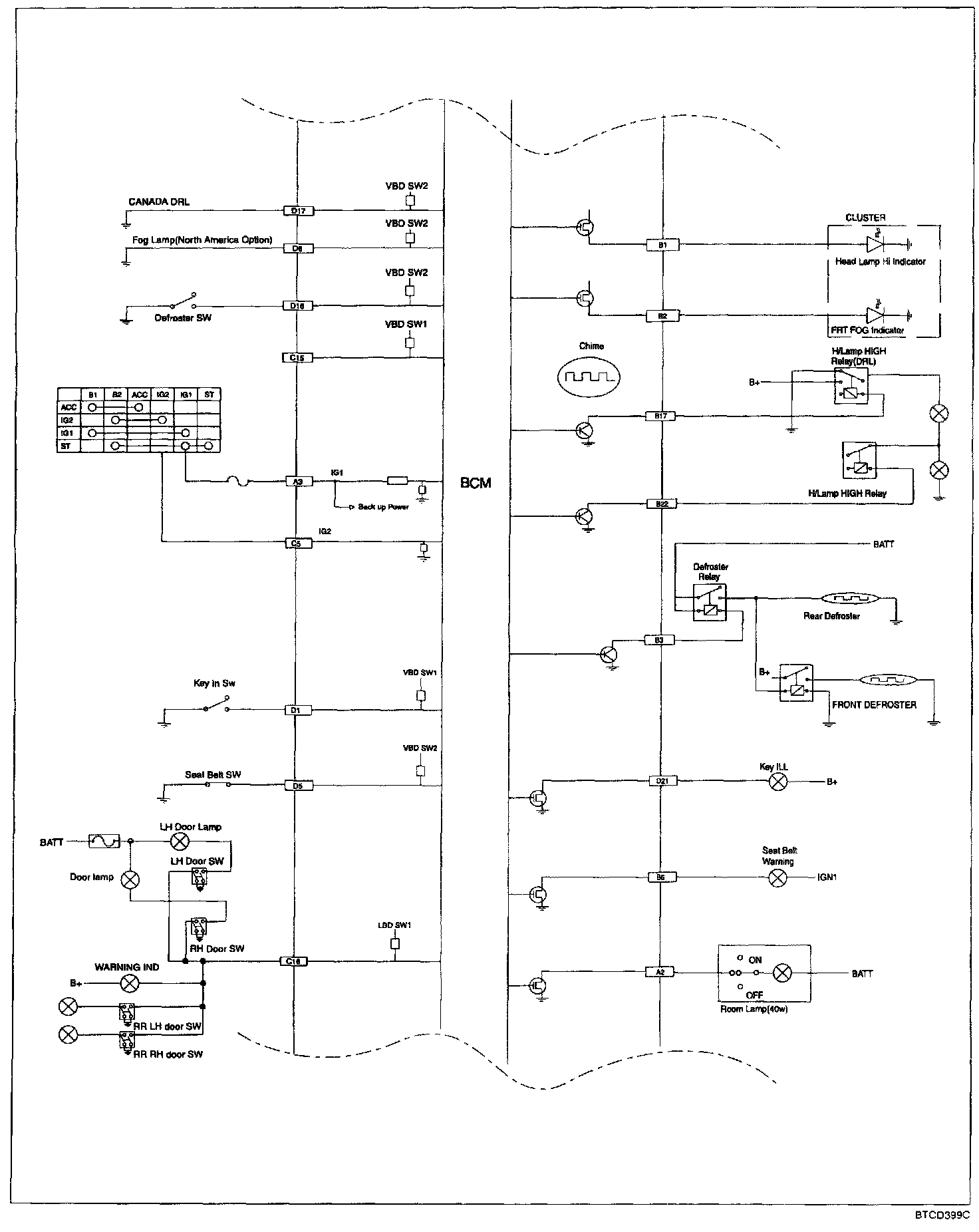

Body Control Module - Circuit Diagram Part 2:

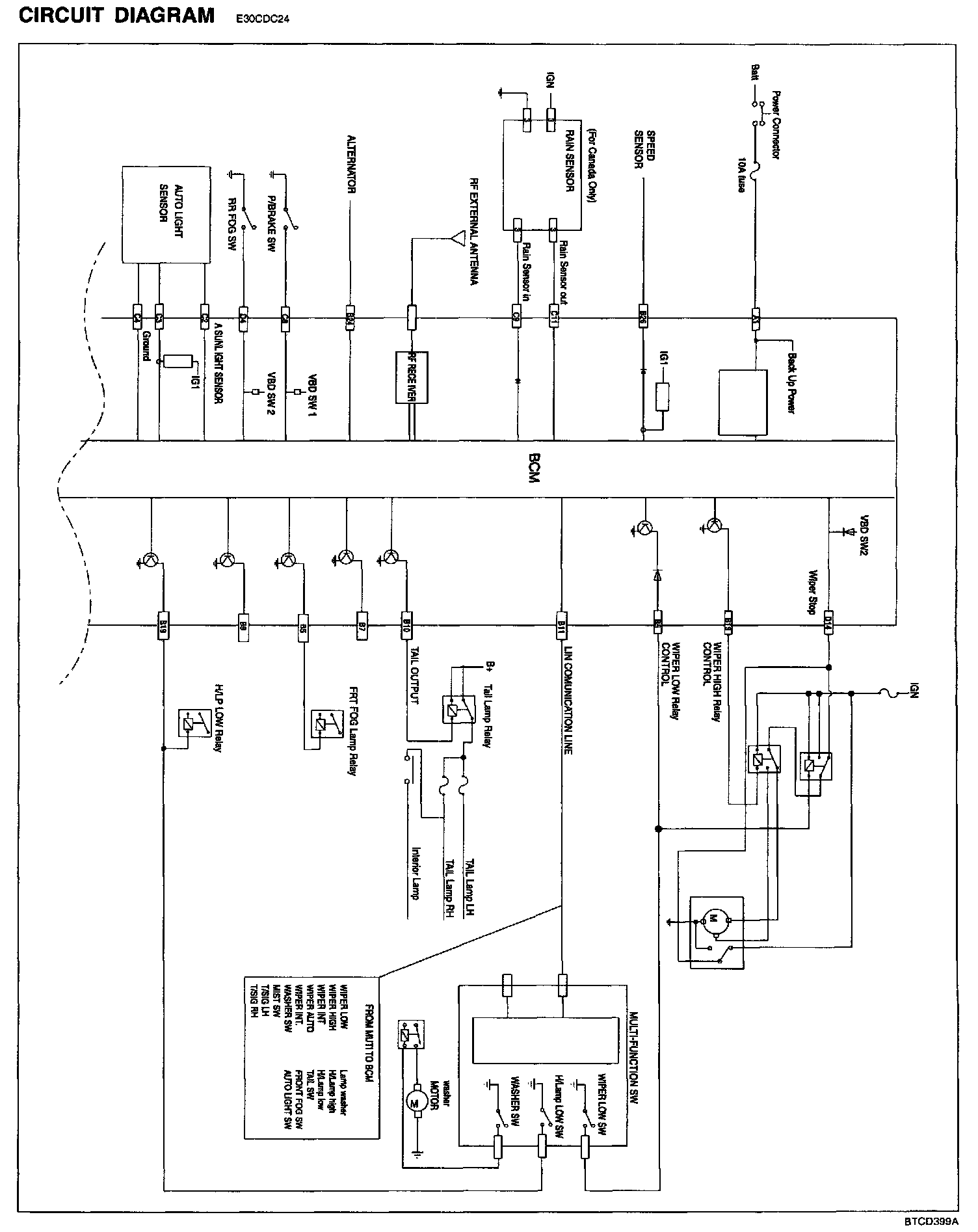

Body Control Module - Circuit Diagram Part 3:
