Power and Ground Distribution: Testing and Inspection

INSPECTION

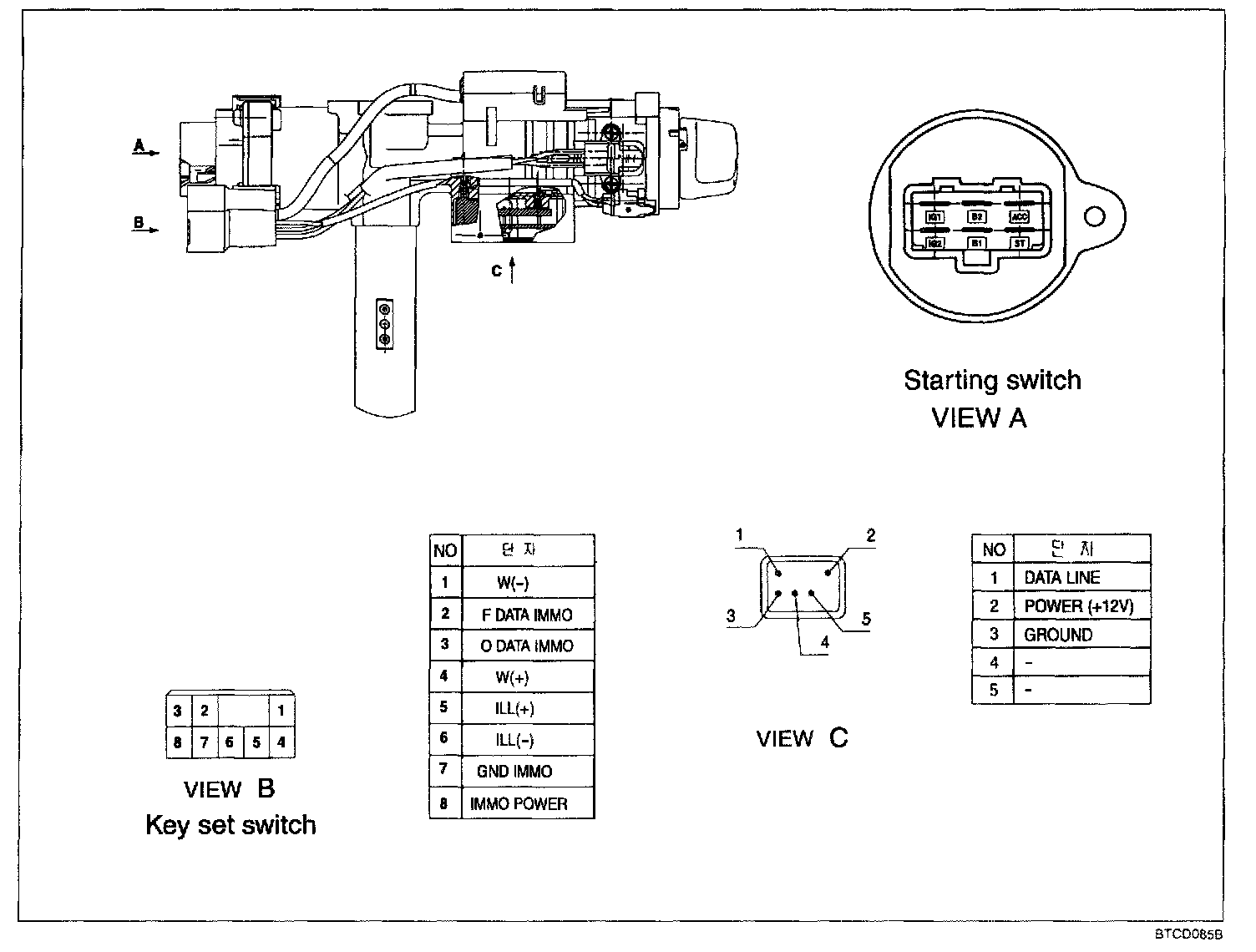

1. Disconnect the connector under the steering column.







2. Check the switch continuity between the terminals.
3. If continuity is not as specified, replace the switch.
