Audio System: General: Component

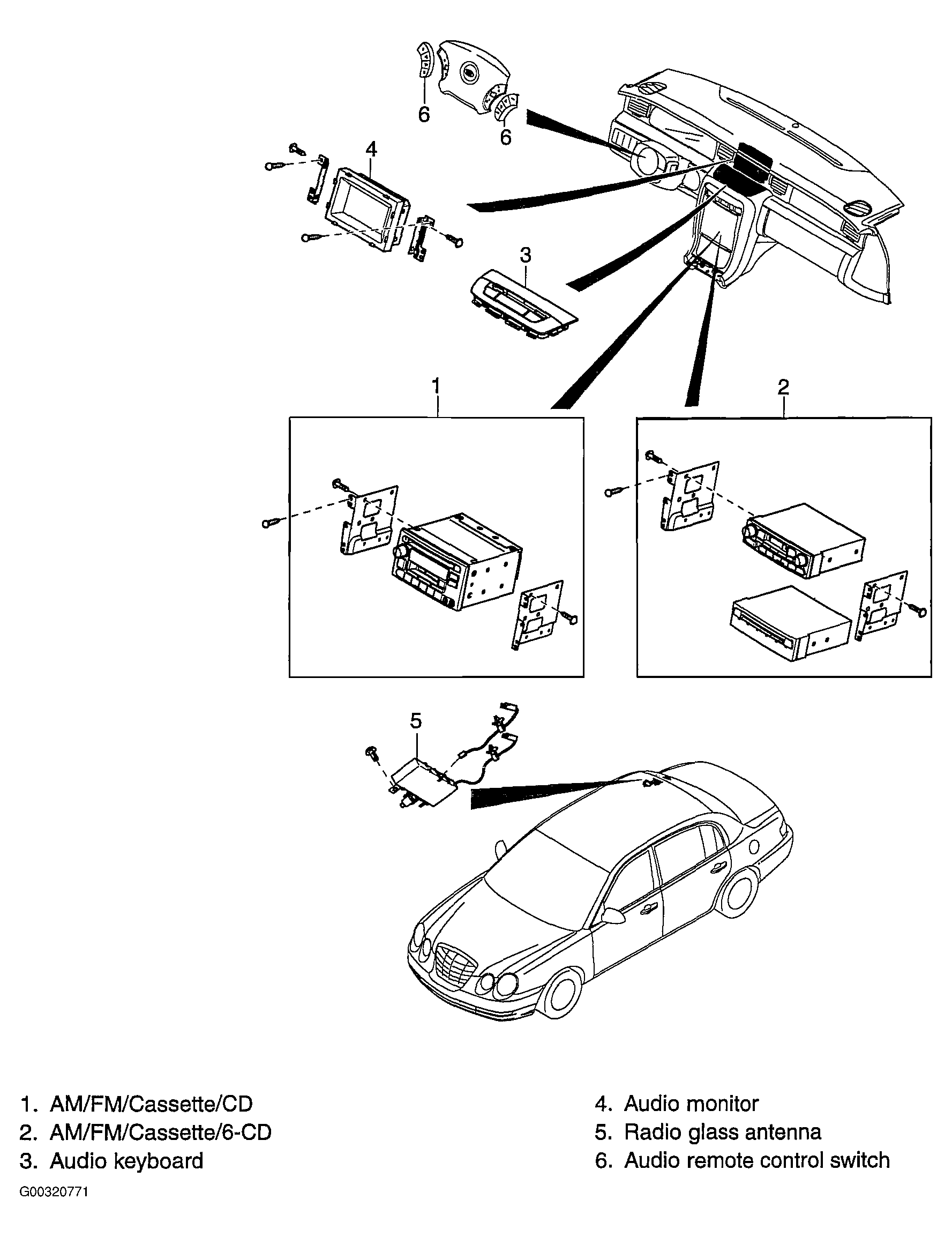

Fig 1: Identifying Audio System Component Locations
G00320771Courtesy of KIA MOTORS AMERICA, INC.
