Anti-Lock Braking System Control Module HECU (Hydraulic And Electronic Control Unit): Installation

Tighten HECU bracket bolt.
Tightening torque

HECU bracket bolt 17-25 N.m

(170-250 kg.cm, 12-18 lb.ft)

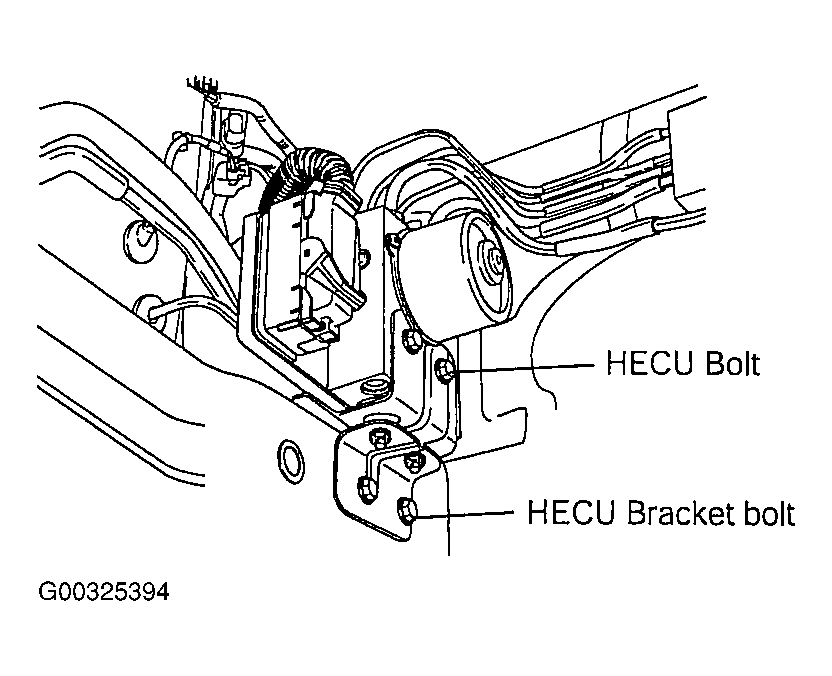

Fig 1: Installing HECU & Tightening Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Install HECU bolt.
Tightening torque

HECU bolt 8-10 N.m (80-100 kg.cm, 5.6-6.9 lb.ft)
Install brake tubes to HECU.
Tightening torque

Brake tube nut (M10) for ABS & TCS 13-17 N.m (130-170 kg.cm, 9-12 lb.ft)

Brake tube nut (M12) for ESP 19-23 N.m (190-230 kg.cm, 14-17 lb.ft)

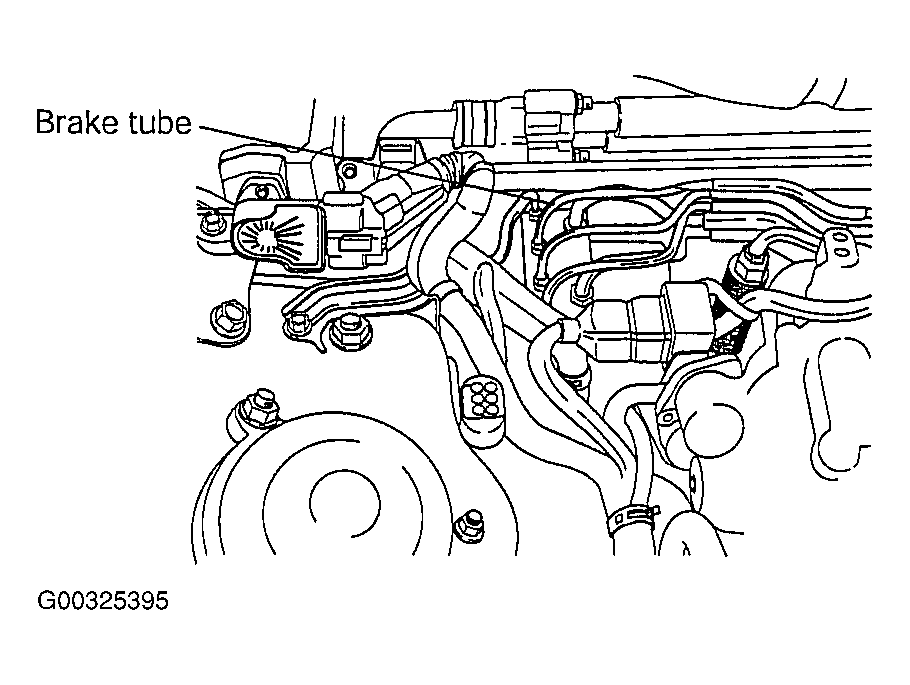

Fig 2: Installing HECU Tubes
Courtesy of KIA MOTORS AMERICA, INC.
Connect HECU connector to HECU.
If necessary, bleed brake system and test drive.
