Steering Wheel Angle Sensor: Notes

Steering wheel angle sensor detects the operating speed of the wheel and is composed of the three photo transistor. Steering wheel angle sensor is located in the multifunction switch of steering wheel. The specifications of sensor are shown in the following illustration.

Fig 1: Illustrating Steering Wheel Angle Sensor

Courtesy of KIA MOTORS AMERICA, INC.

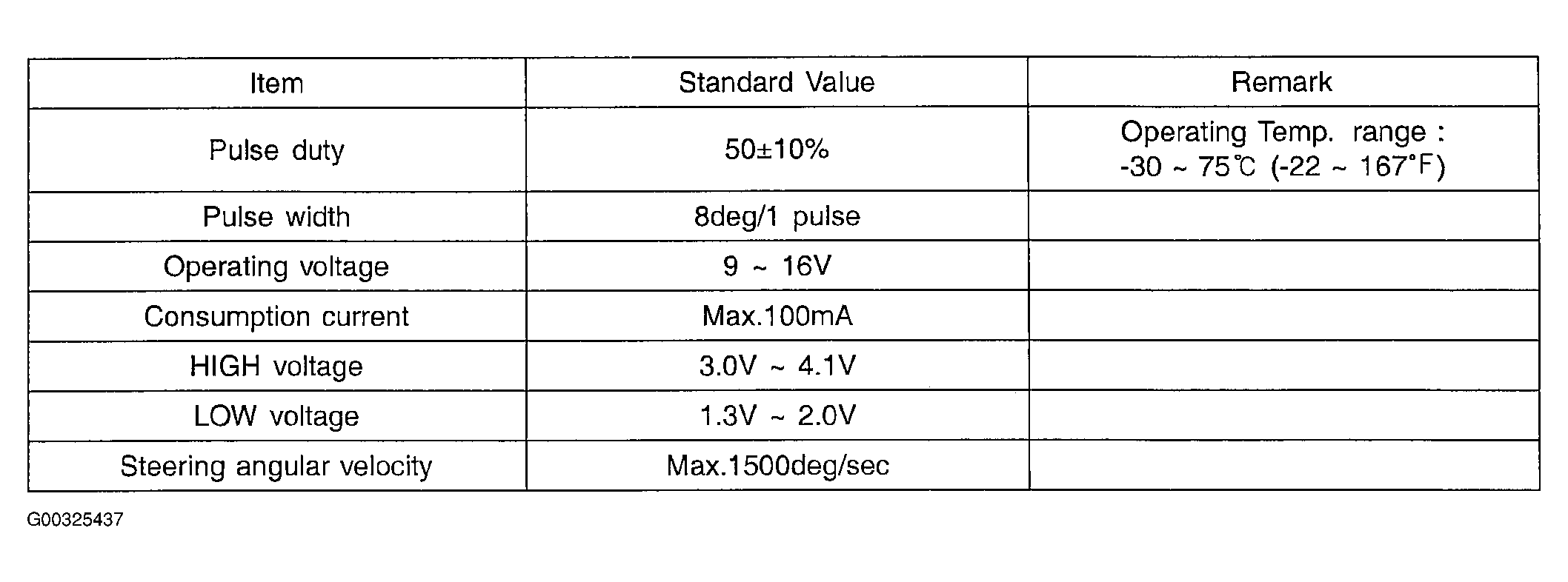

Fig 2: Steering Wheel Angle Sensor Specification Chart

Courtesy of KIA MOTORS AMERICA, INC.
