Removal & Installation: Generator: Disassembly

CAUTION: Cutting the stator coil lead line connecting to the rectifier may damage the generator because the rectifier and the stator coil lead line are soldered together. So, do not disassemble further.

NOTE: Put on gloves to protect hands during working.

Remove the generator cover using a screwdriver or equivalent. See Fig 1.

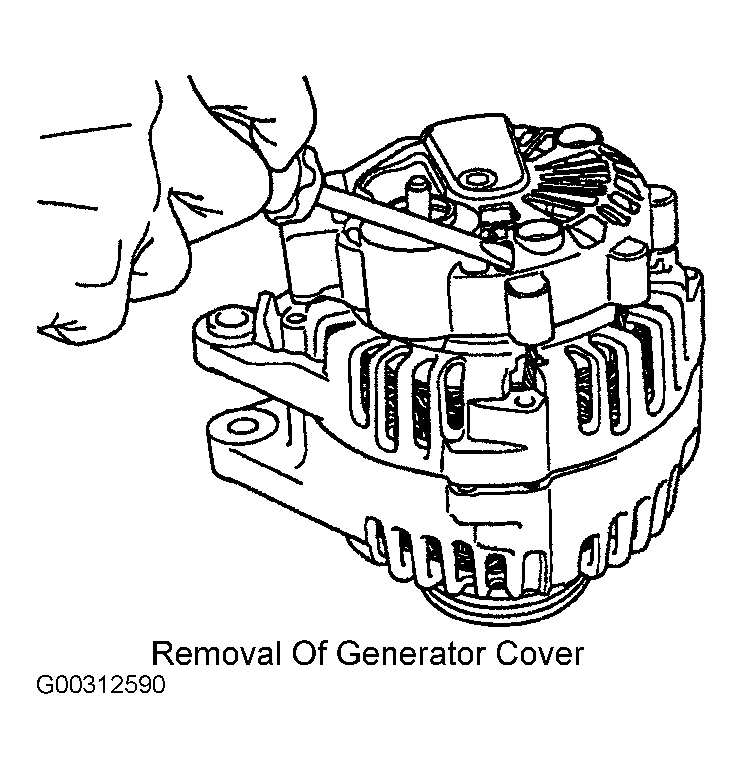

Fig 1: Removal Of Generator Cover
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the 3 mounting bolts, detach the brush holder assembly. See Fig 2.

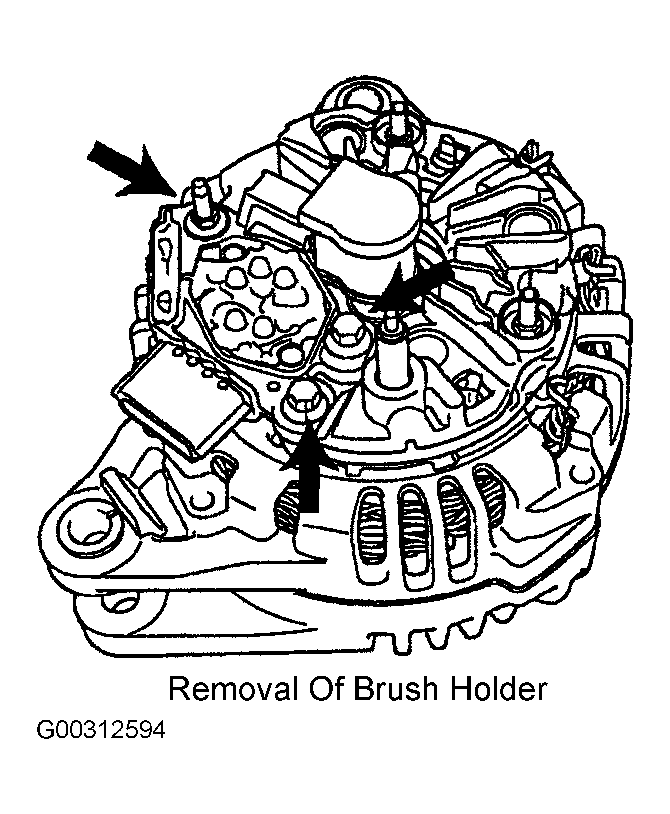

Fig 2: Removal Of Brush Holder
Courtesy of KIA MOTORS AMERICA, INC.
Remove the nut, pulley, and spacer. See Fig 3.

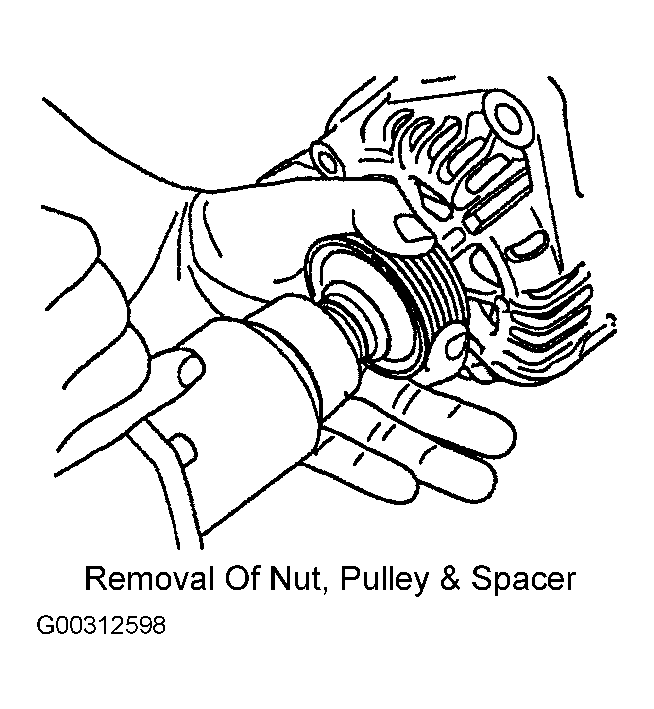

Fig 3: Removal Of Nut, Pulley & Spacer
Courtesy of KIA MOTORS AMERICA, INC.
