Engine Coolant Pump: Notes

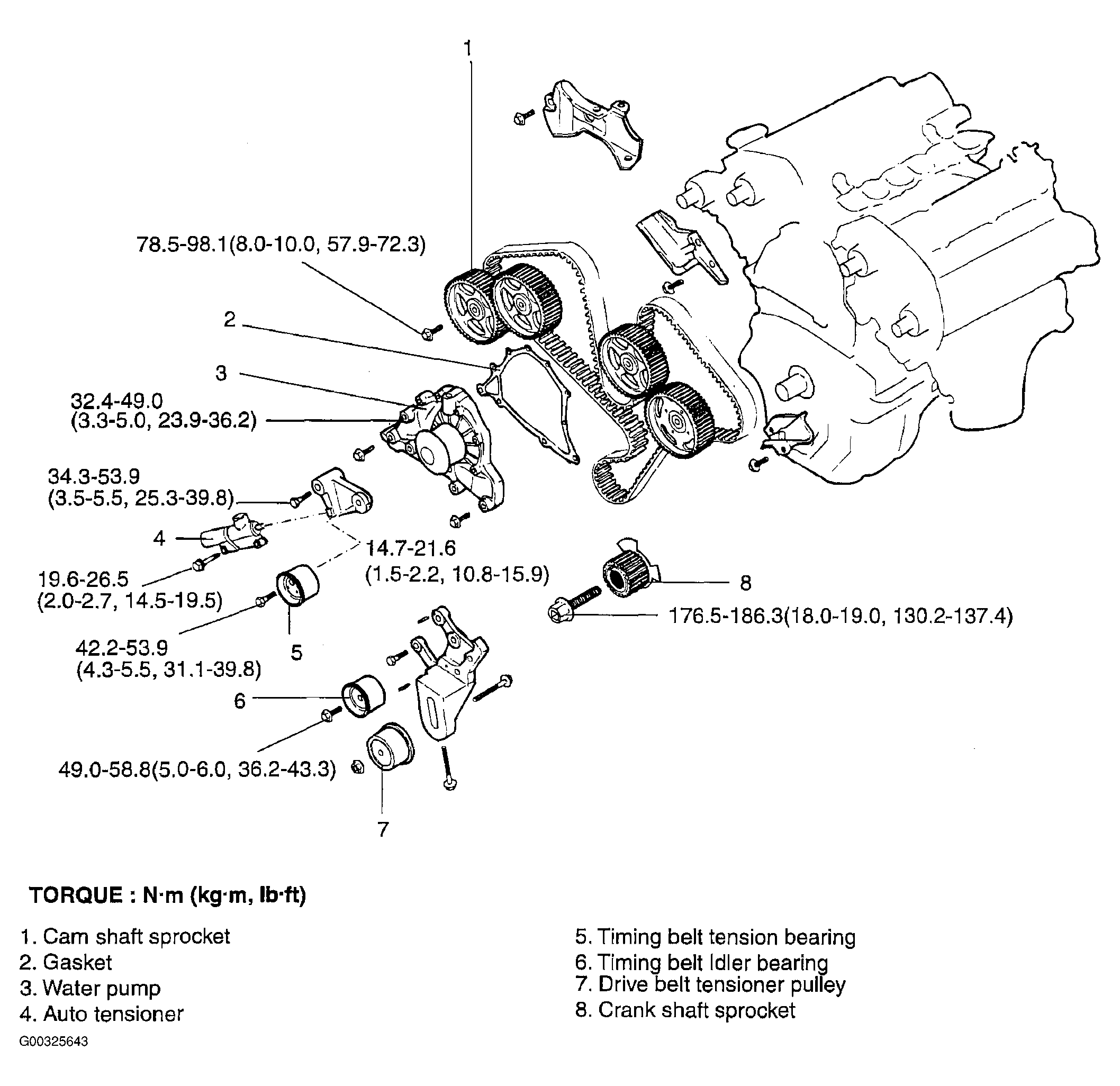

Fig 1: Identifying Coolant Pump Components
G00325643Courtesy of KIA MOTORS AMERICA, INC.
