Cooling System: Thermostat: Notes

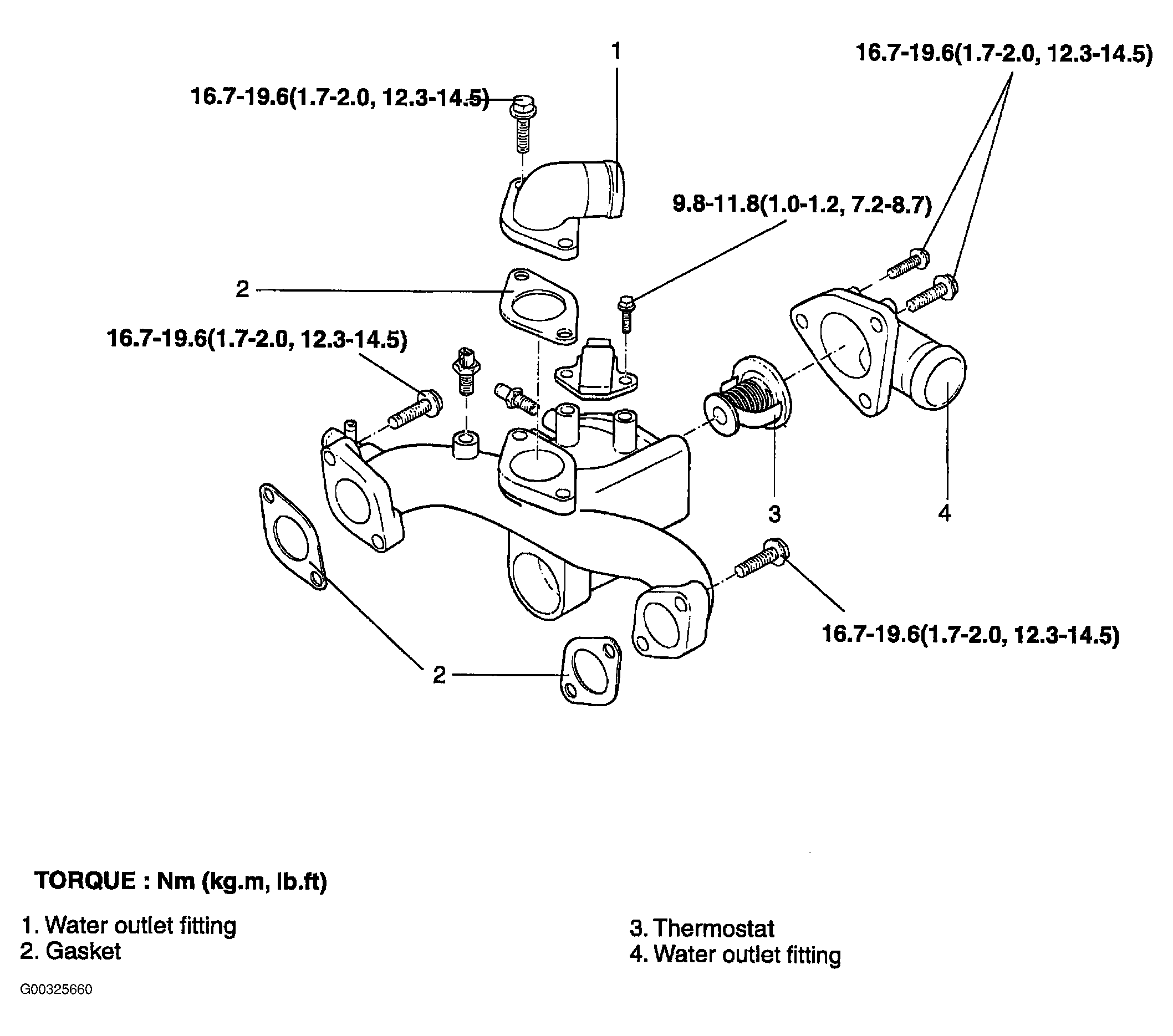

Fig 1: Identifying Thermostat Components
G00325660Courtesy of KIA MOTORS AMERICA, INC.
