Specific Gravity Test

  1. Measure the specific gravity of the coolant with a hydrometer.
  2. Measure the coolant temperature and calculate the concentration from the relation between the specific gravity and temperature. Use the following table for reference.

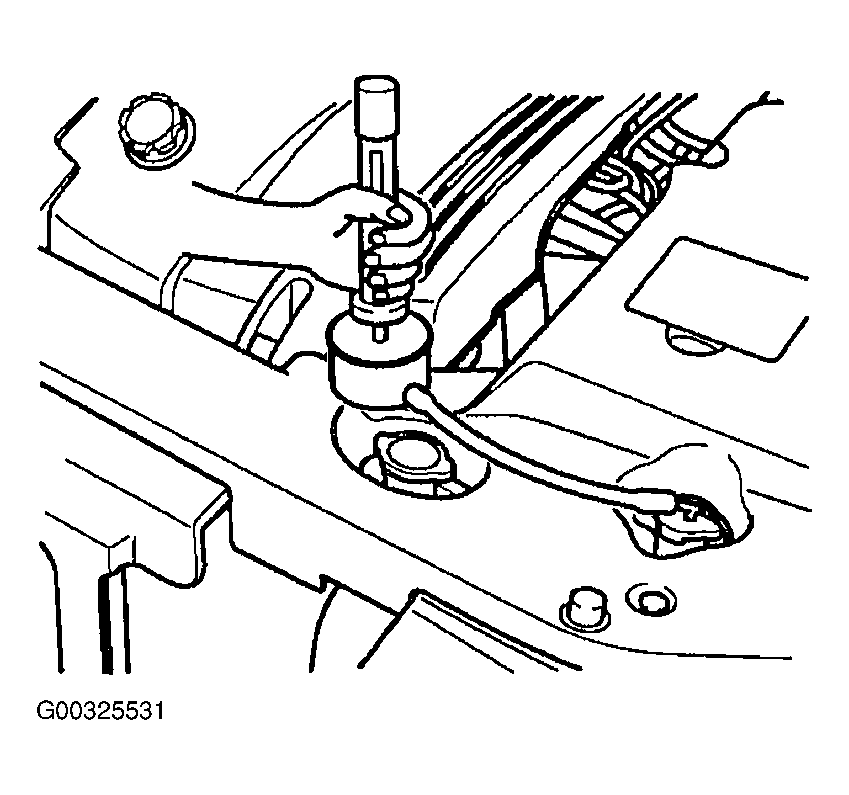

Fig 1: Measuring Coolant Concentration
G00325531Courtesy of KIA MOTORS AMERICA, INC.
