3.5L Engine: General: Troubleshooting

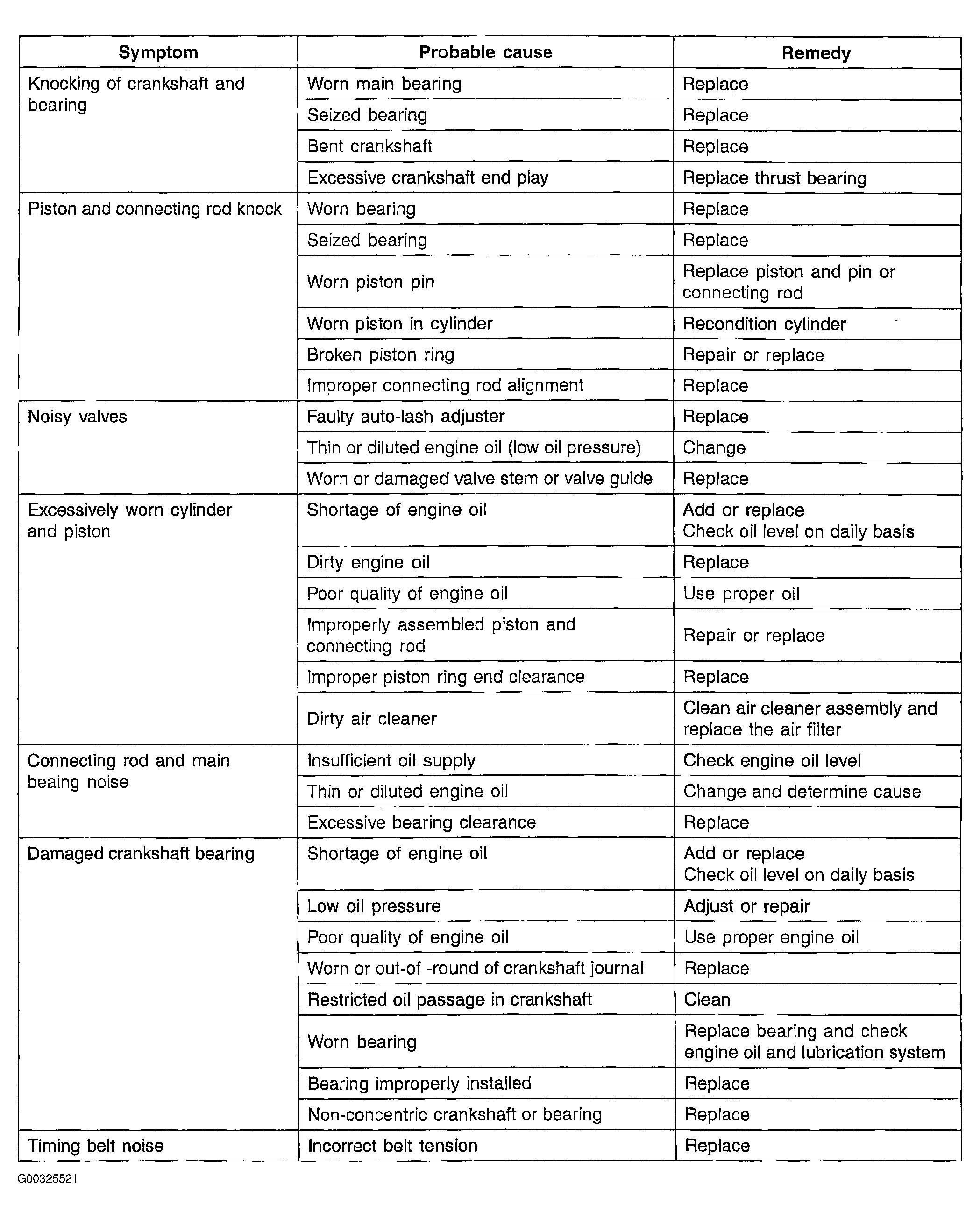

Fig 1: Engine Troubleshooting (1 of 3)
G00325521Courtesy of KIA MOTORS AMERICA, INC.

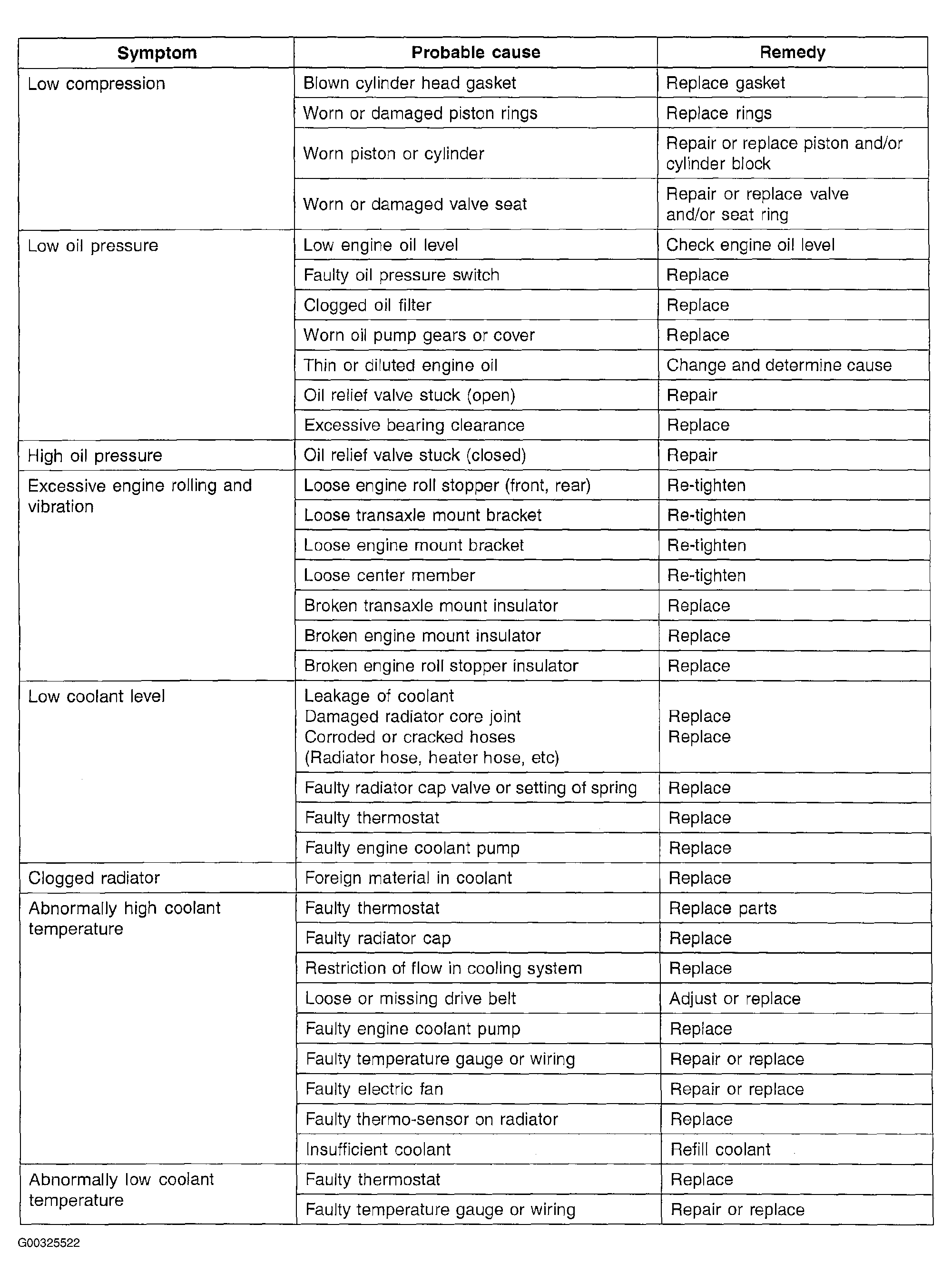

Fig 2: Engine Troubleshooting (2 of 3)
G00325522Courtesy of KIA MOTORS AMERICA, INC.

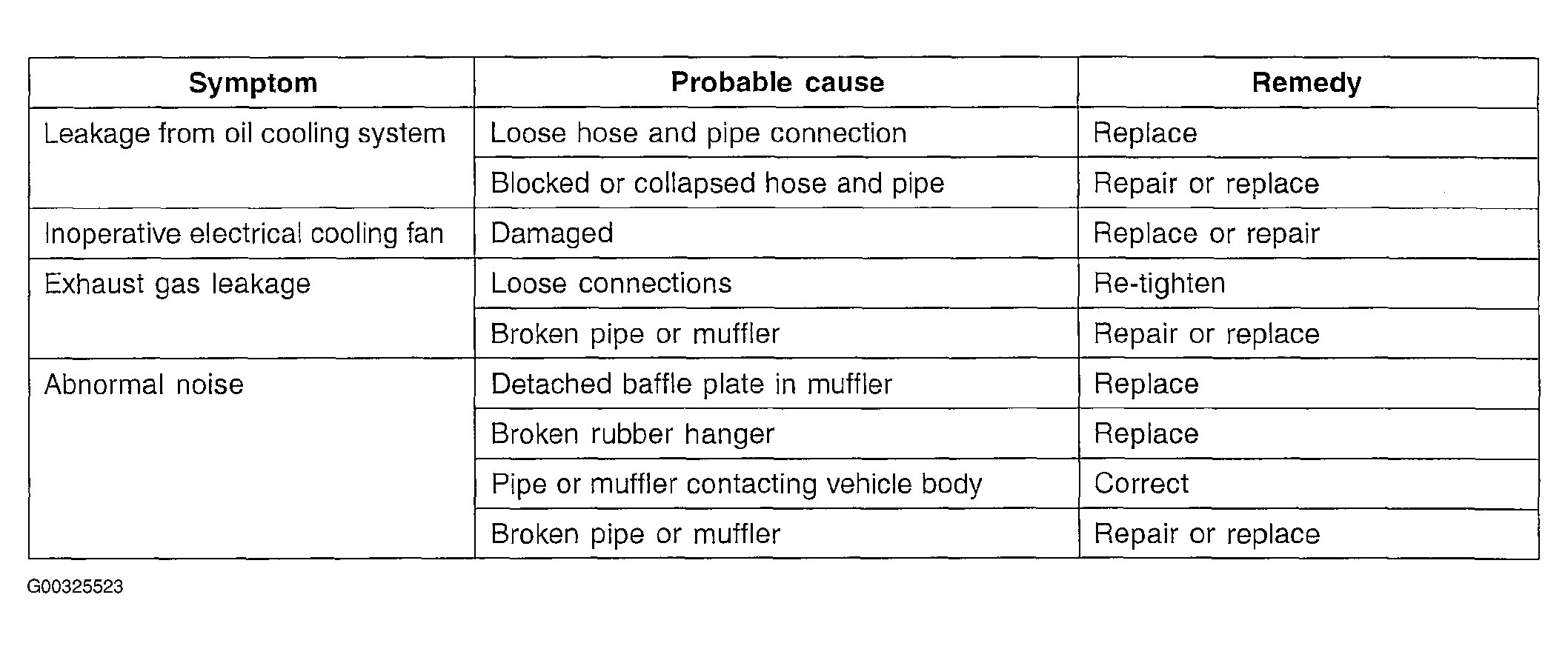

Fig 3: Engine Troubleshooting (3 of 3)
G00325523Courtesy of KIA MOTORS AMERICA, INC.
