Connecting Rod Bearing

Check the connecting rod big-end bore size code.
NOTE: Record the connecting rod big-end bore size code letters on connecting rod cap as shown.

Fig 1: Identifying Connecting Rod Big-End Size Code
Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Connecting Rod Big-End Diameter
Courtesy of KIA MOTORS AMERICA, INC.
Check the crankshaft pin journal size code.
NOTE: Record the pin journal size code letters on the crankshaft balance weight.
Reading order is from left to right as shown, with No. 1 pin journal size code shown first.

Fig 3: Identifying Crankshaft Pin Journal Size Code
Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Crankshaft Pin Journal Diameter
Courtesy of KIA MOTORS AMERICA, INC.
Choose proper connecting rod bearing in below table.

Fig 5: Connecting Rod Bearing Selection Table
Courtesy of KIA MOTORS AMERICA, INC.

Connecting rod bearing oil clearance :

0.026-0.044 mm (0.0010-0.0017 in)

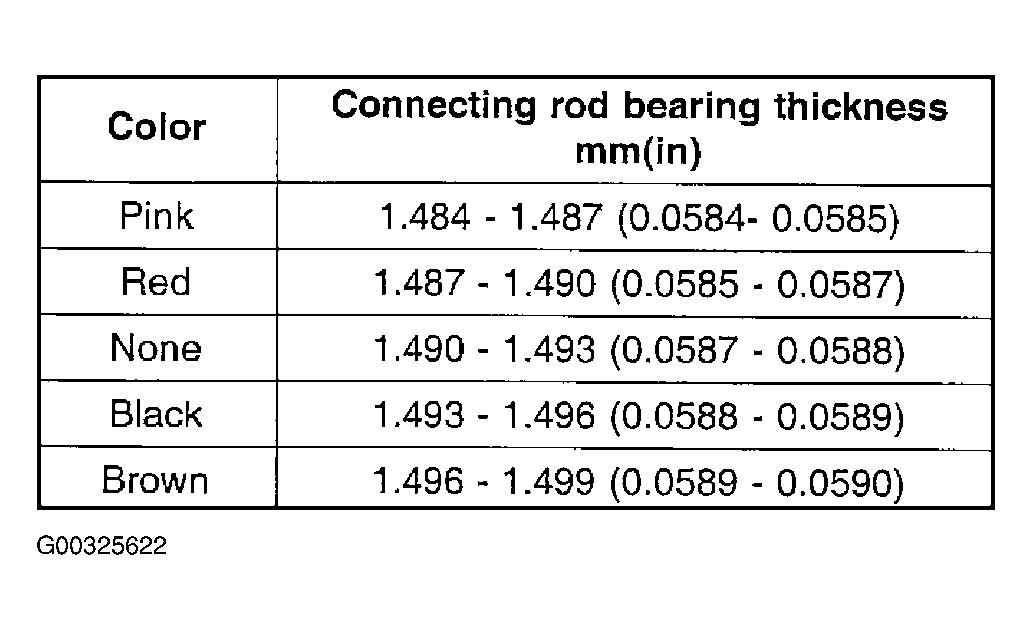

Fig 6: Connecting Rod Bearing Thickness (Reference Data)
Courtesy of KIA MOTORS AMERICA, INC.
