System Diagram

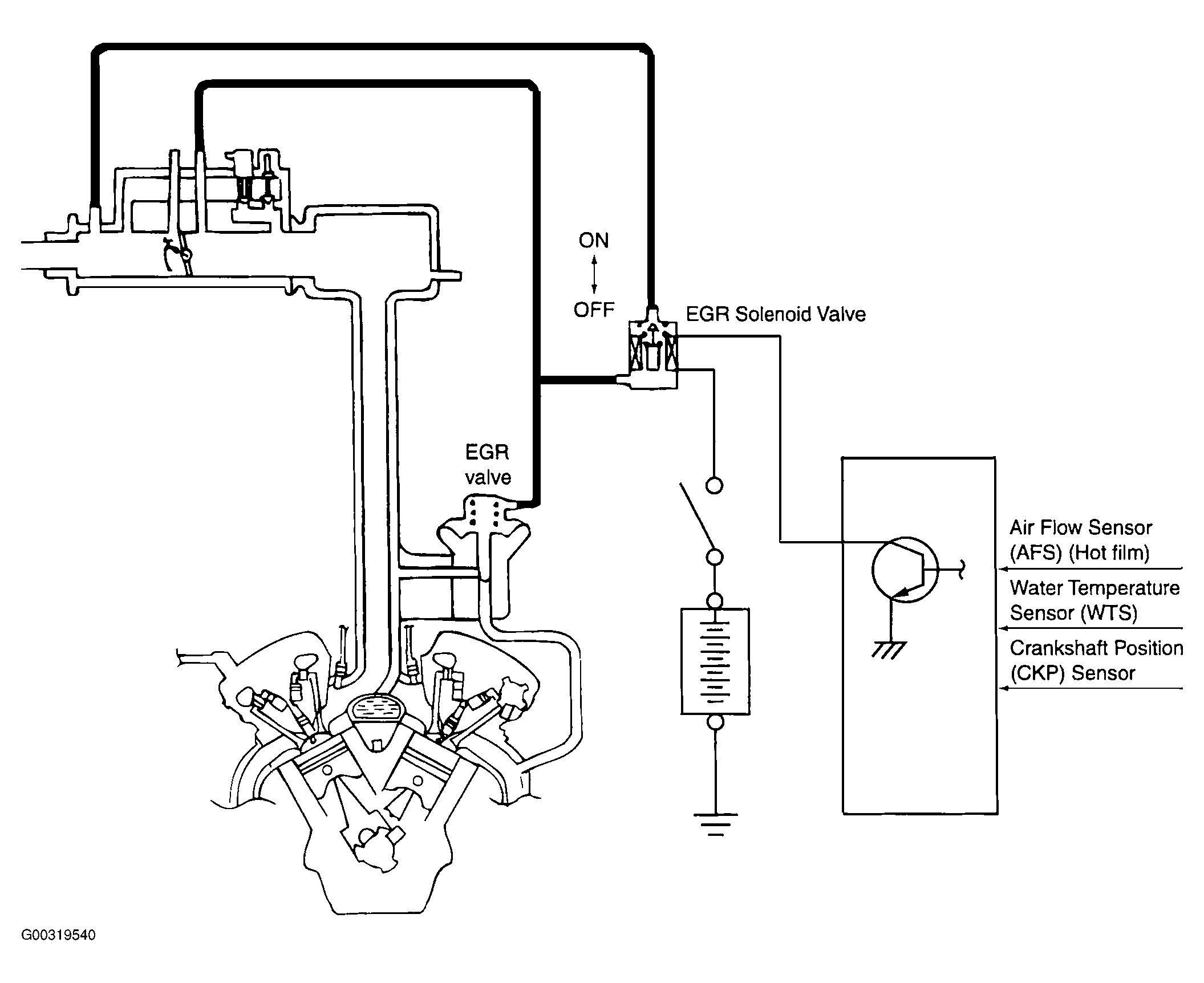

Fig 1: Exhaust Emission Control System Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
