Service Standard

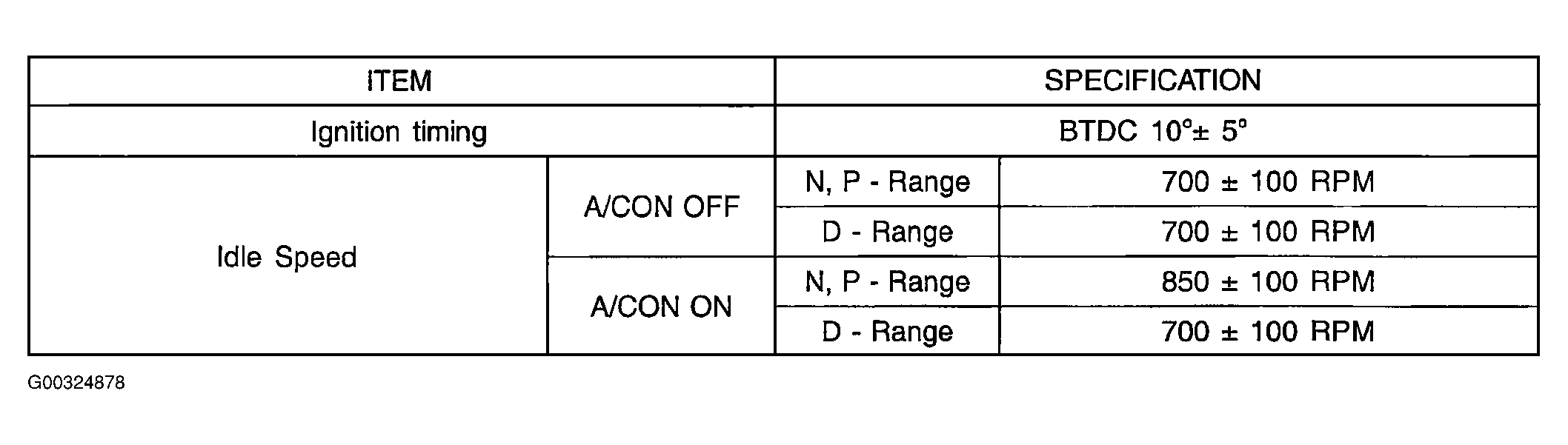

Fig 1: Ignition Timing & Idle Speed Standard
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
