Harness Inspection Procedures

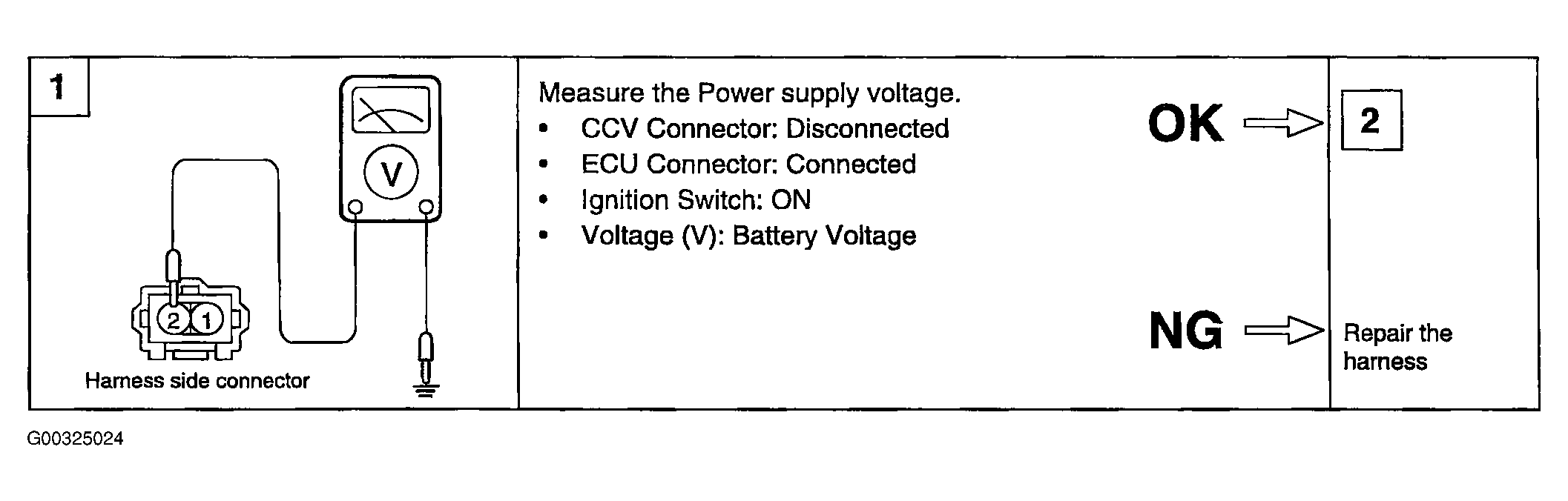

Fig 1: Illustrating CCV Harness Inspection Procedure (1 Of 2)
G00325024Courtesy of KIA MOTORS AMERICA, INC.

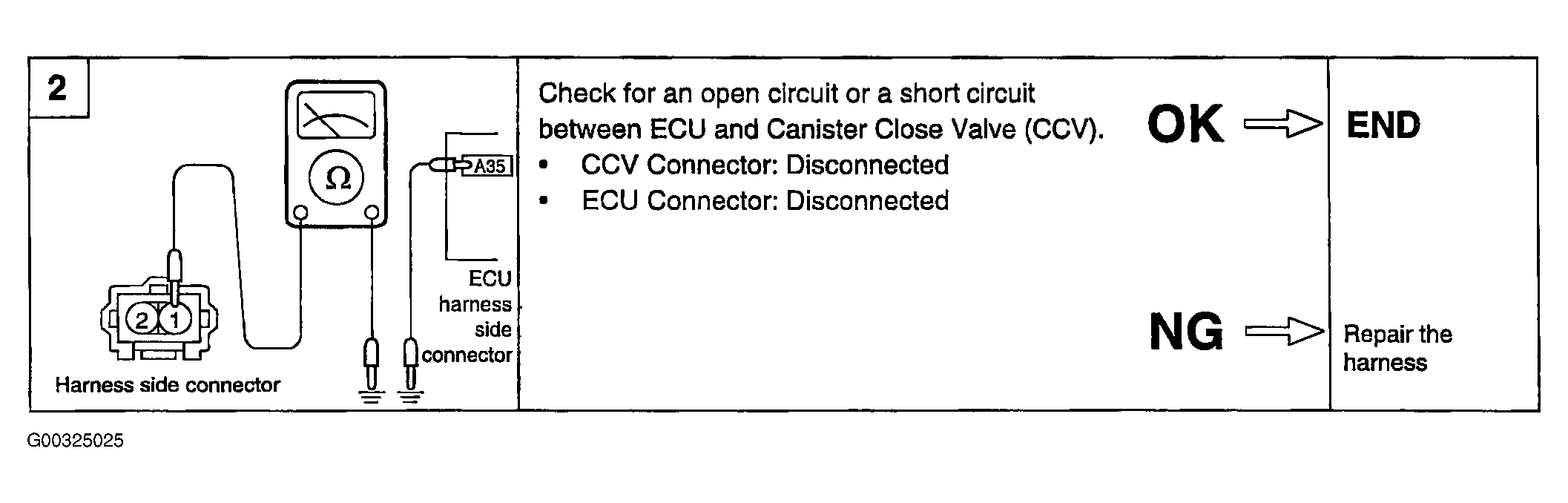

Fig 2: Illustrating CCV Harness Inspection Procedure (2 Of 2)
G00325025Courtesy of KIA MOTORS AMERICA, INC.
