Troubleshooting Procedures: Notes

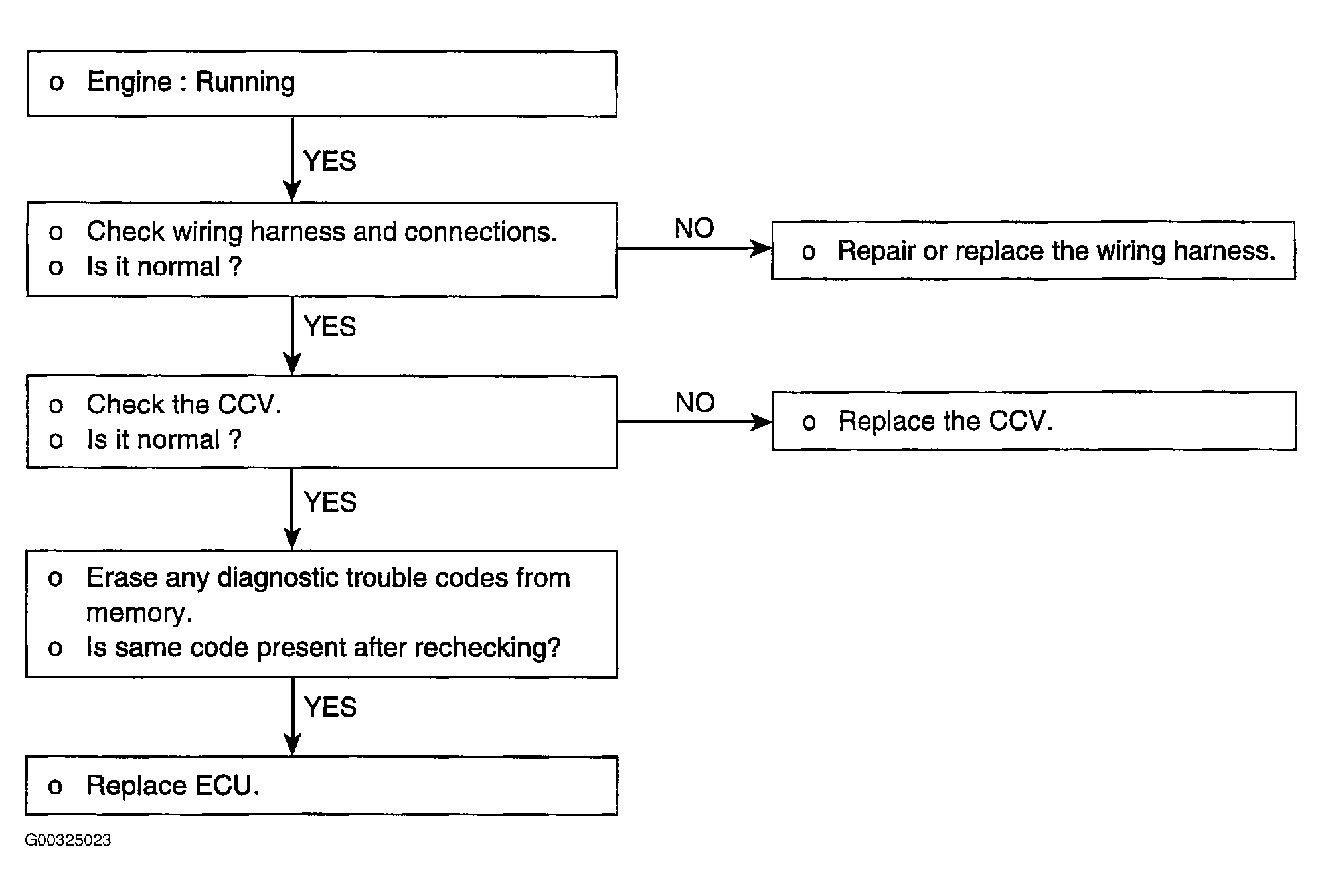

Fig 1: Illustrating Trouble Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
