Harness Inspection Procedures

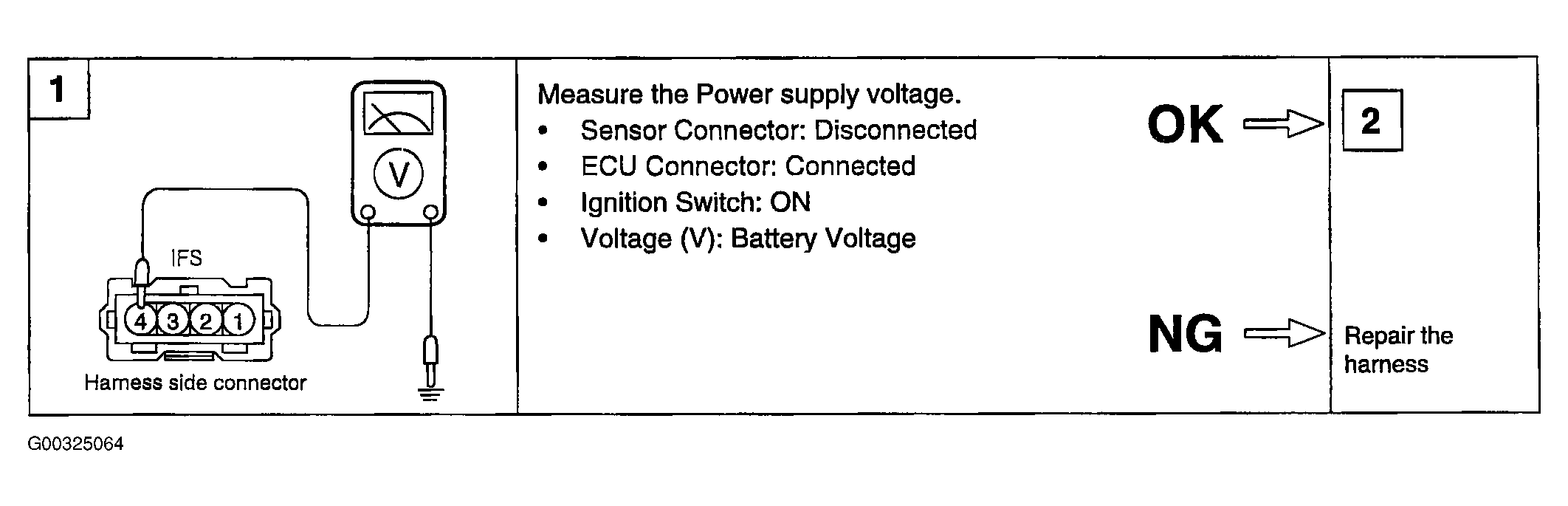

Fig 1: Illustrating IFS Harness Inspection Procedure (1 Of 4)
G00325064Courtesy of KIA MOTORS AMERICA, INC.

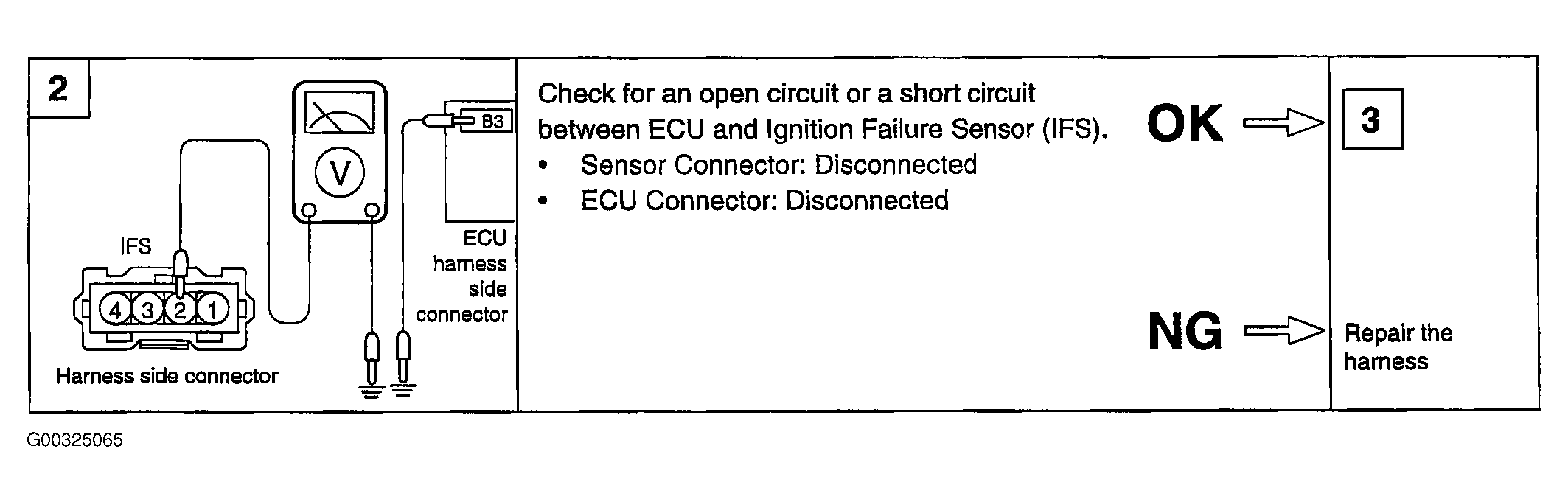

Fig 2: Illustrating IFS Harness Inspection Procedure (2 Of 4)
G00325065Courtesy of KIA MOTORS AMERICA, INC.

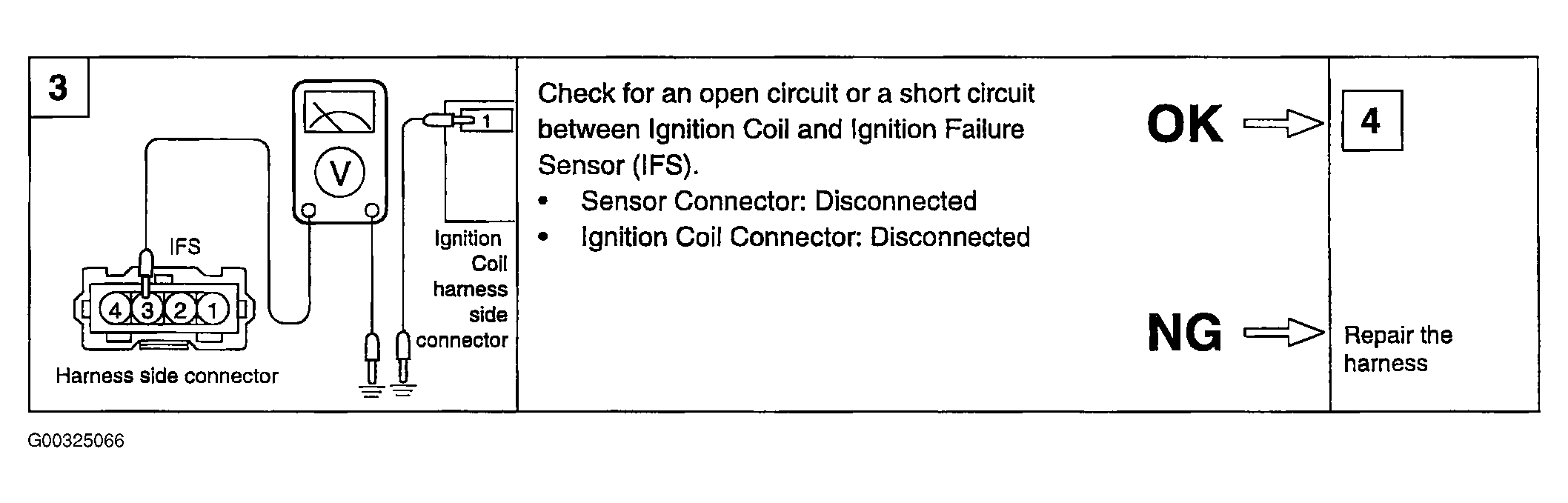

Fig 3: Illustrating IFS Harness Inspection Procedure (3 Of 4)
G00325066Courtesy of KIA MOTORS AMERICA, INC.

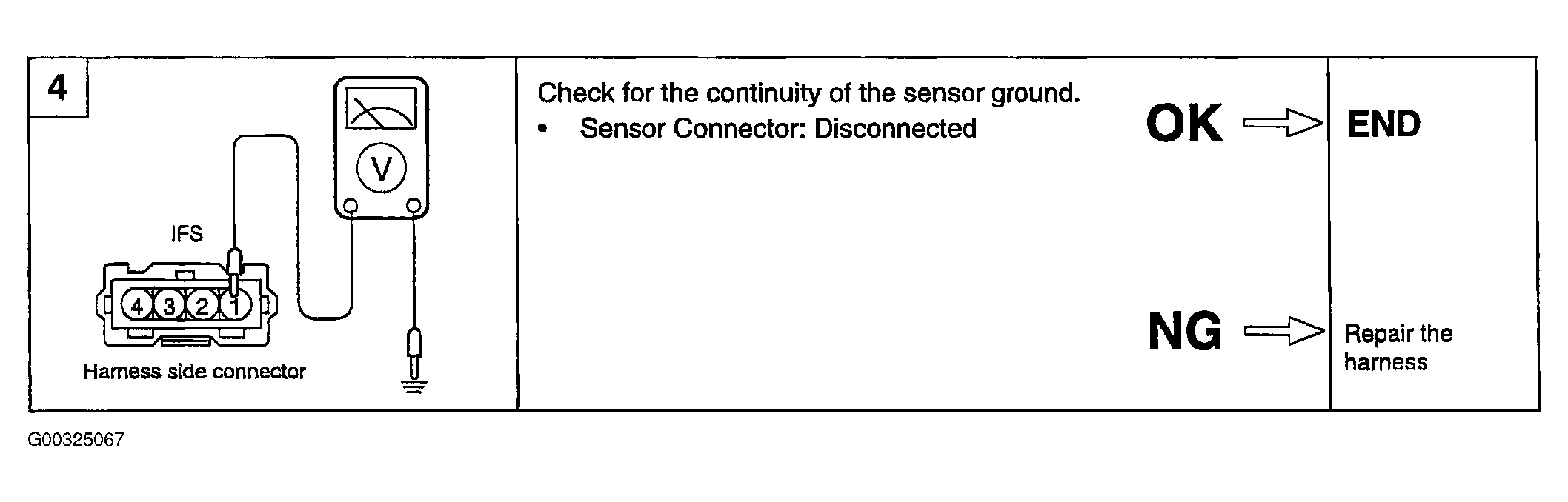

Fig 4: Illustrating IFS Harness Inspection Procedure (4 Of 4)
G00325067Courtesy of KIA MOTORS AMERICA, INC.
