Troubleshooting Procedures: Notes

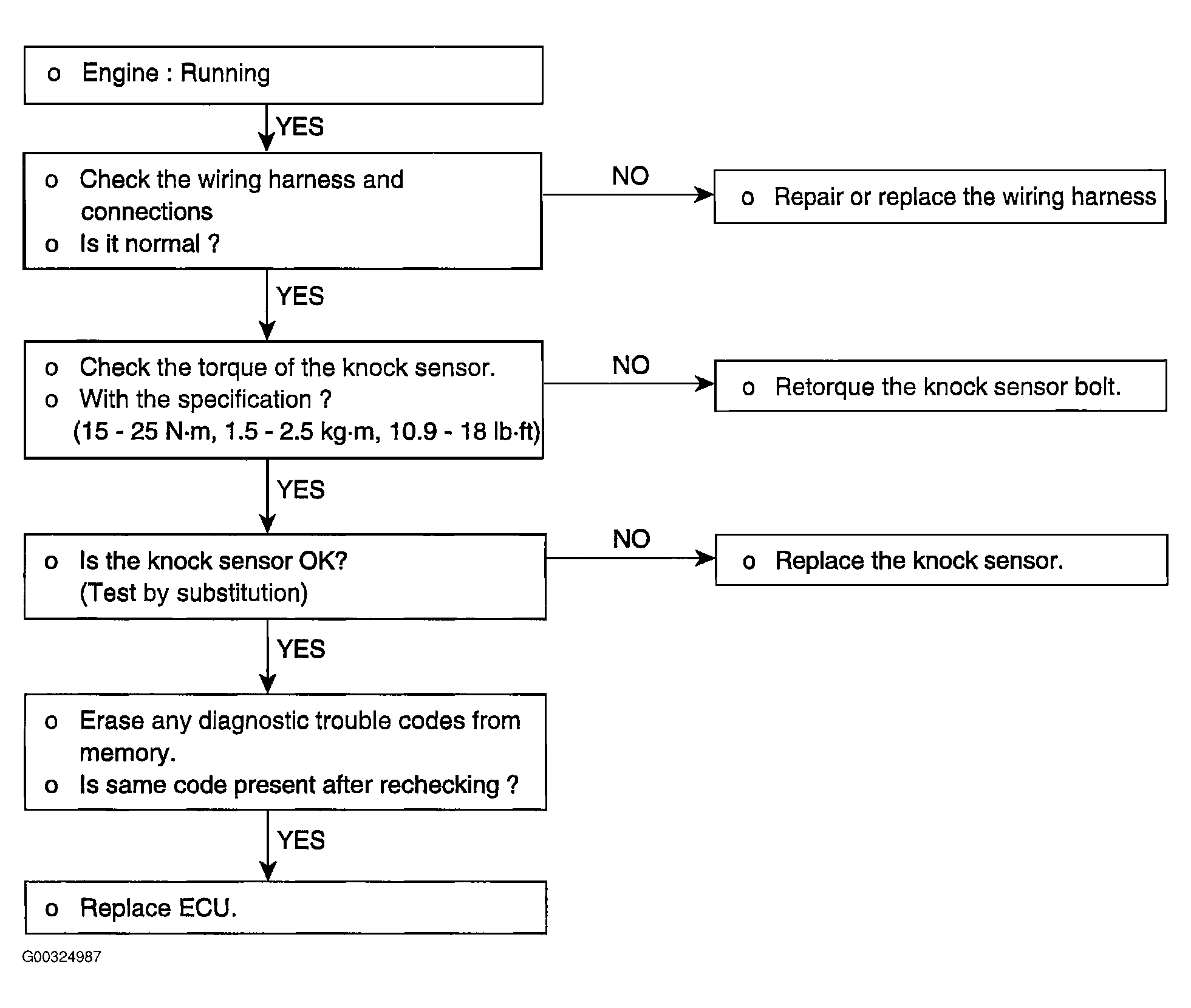

Fig 1: Illustrating Knock Sensor Troubleshooting Diagram
G00324987Courtesy of KIA MOTORS AMERICA, INC.
