Location Of MPI Components

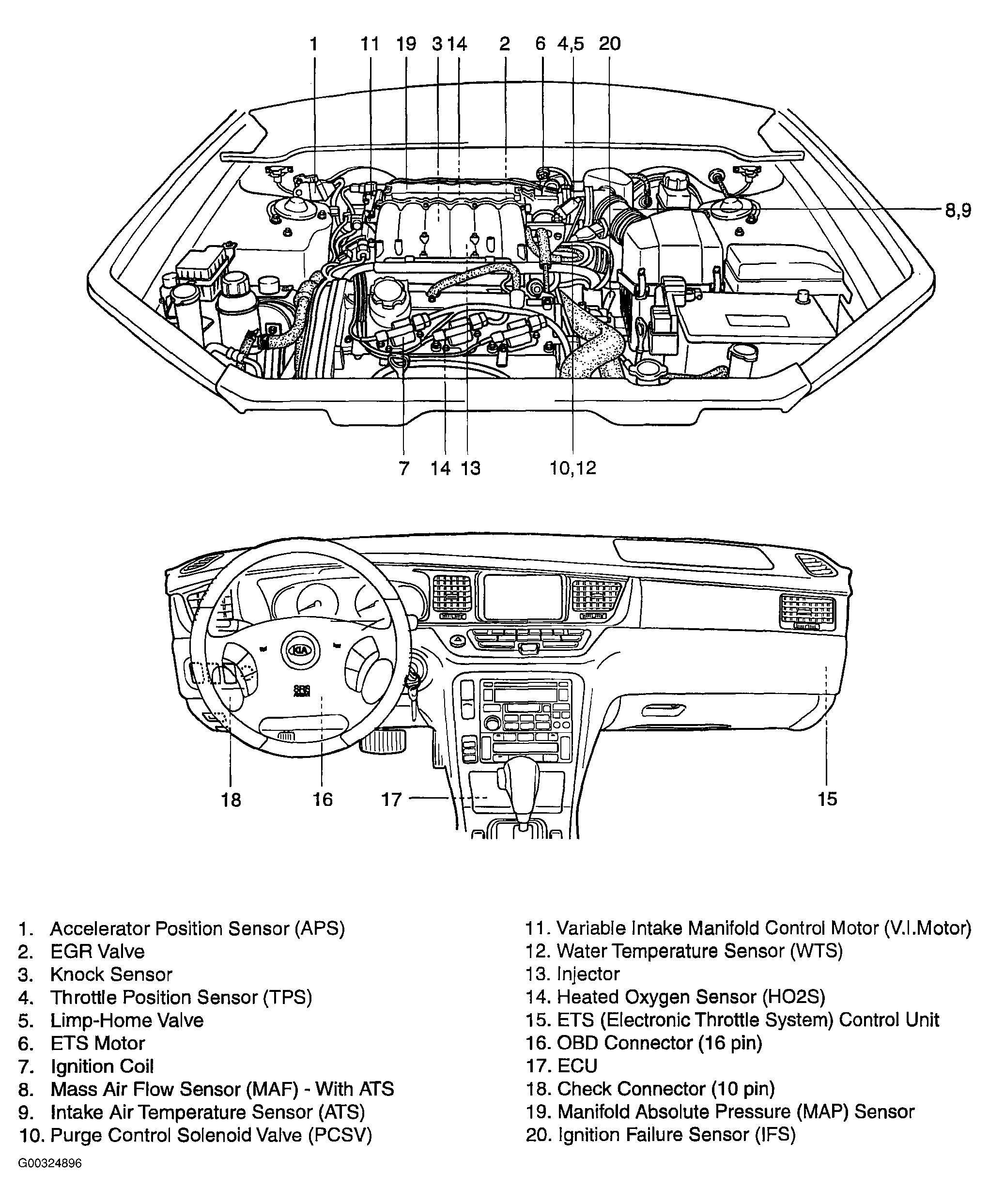

Fig 1: Identifying MPI Component Locations

Courtesy of KIA MOTORS AMERICA, INC.

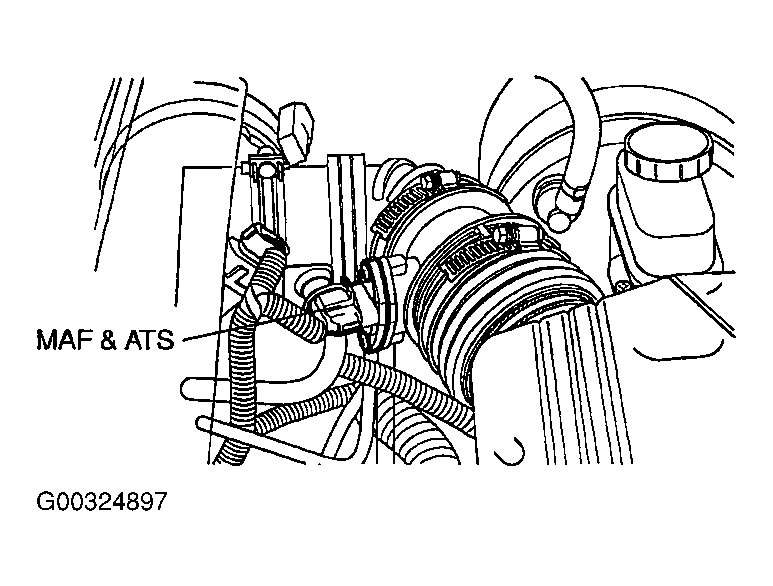

Fig 2: Locating Mass Air Flow (MAF) Sensor & Intake Air Temperature Sensor (IATS)

Courtesy of KIA MOTORS AMERICA, INC.

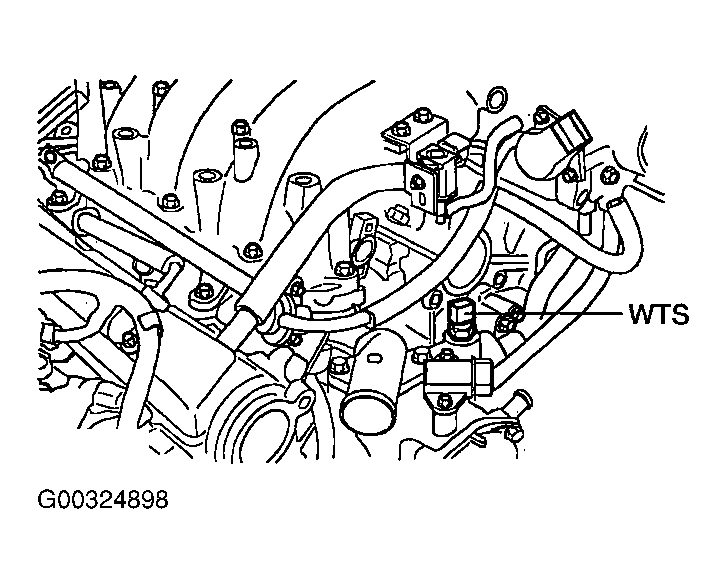

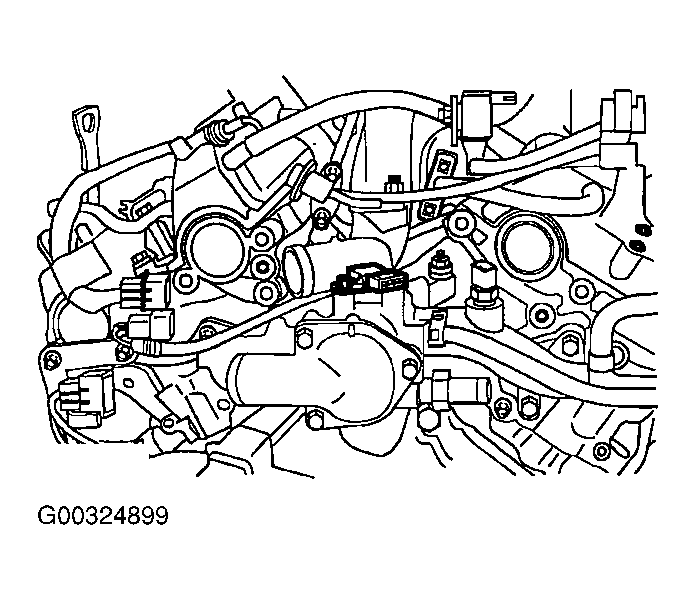

Fig 3: Locating Water Temperature Sensor (WTS)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Locating Ignition Failure Sensor (IFS)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Locating Accelerator Position Sensor (APS)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Locating Knock Sensor

Courtesy of KIA MOTORS AMERICA, INC.

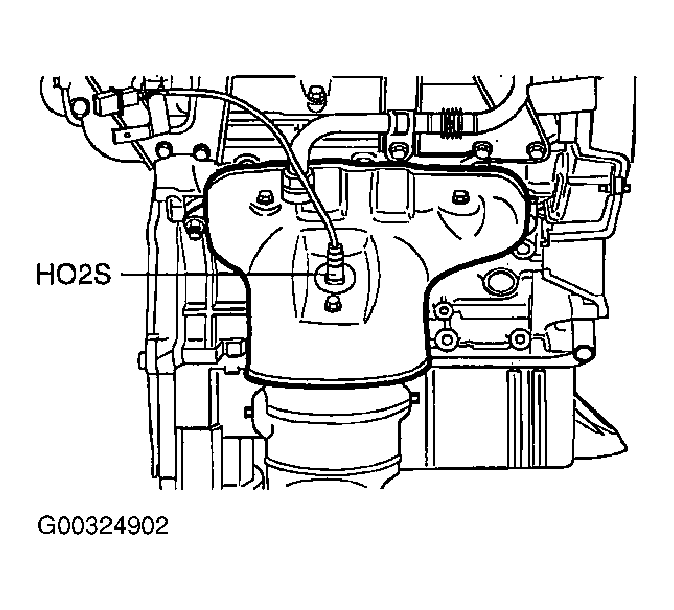

Fig 7: Locating Heated Oxygen Sensor (HO2S)

Courtesy of KIA MOTORS AMERICA, INC.

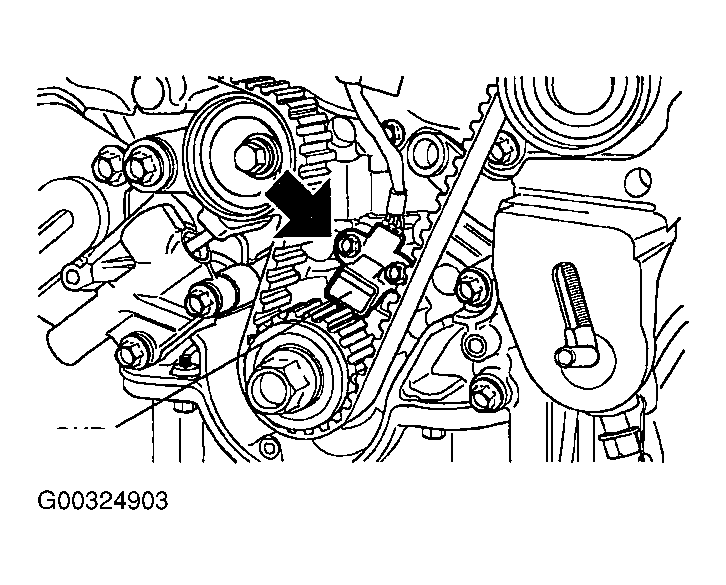

Fig 8: Locating Crankshaft Position (CKP) Sensor

Courtesy of KIA MOTORS AMERICA, INC.

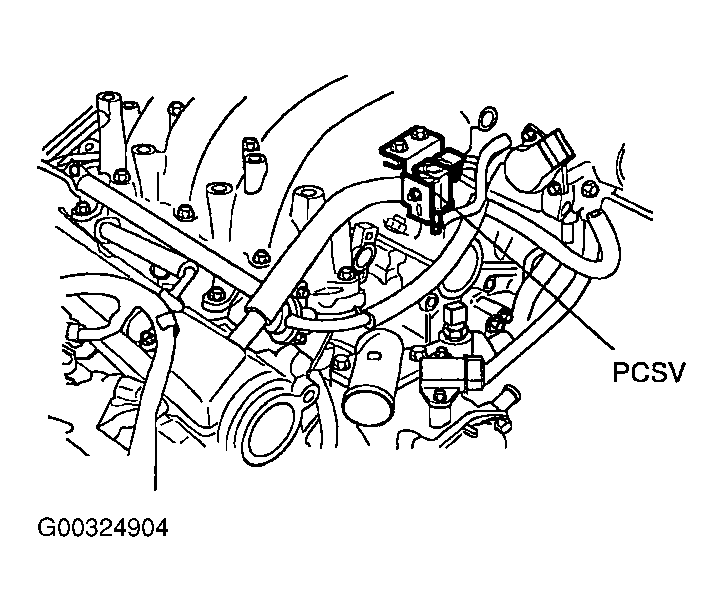

Fig 9: Locating Purge Control Solenoid Valve (PCSV)

Courtesy of KIA MOTORS AMERICA, INC.

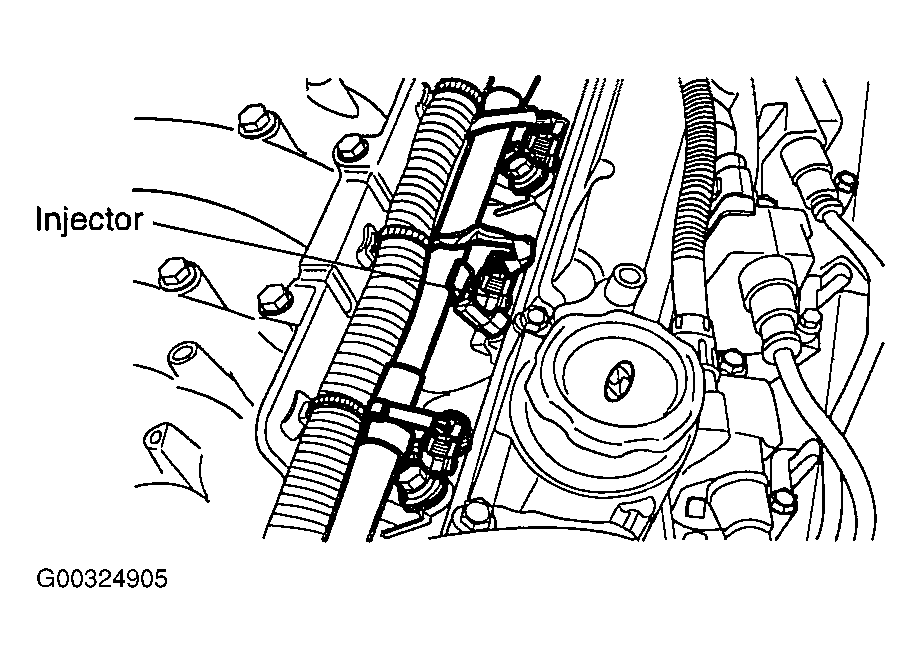

Fig 10: Locating Fuel Injectors

Courtesy of KIA MOTORS AMERICA, INC.

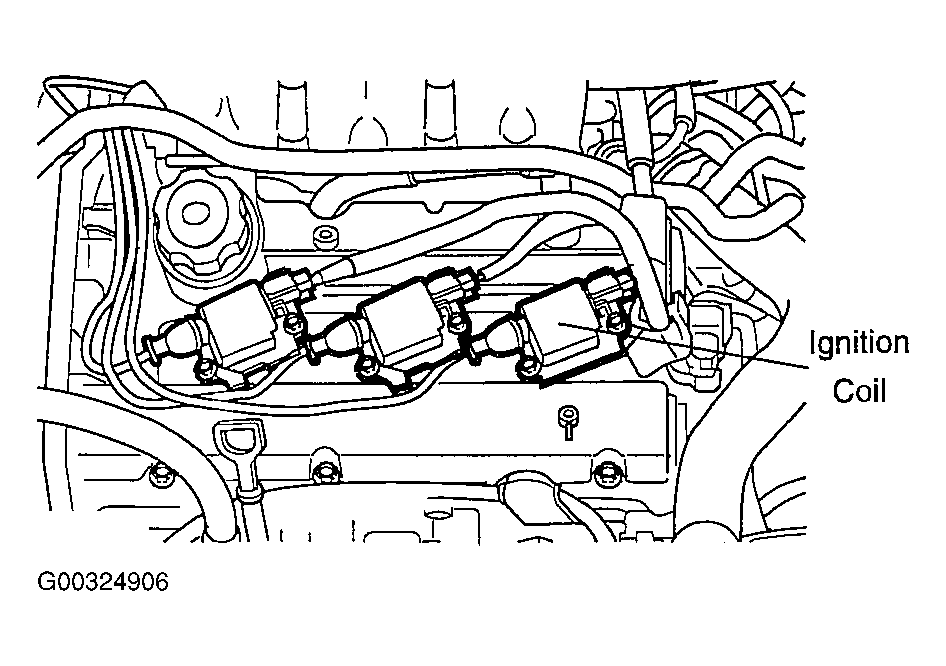

Fig 11: Locating Ignition Coils

Courtesy of KIA MOTORS AMERICA, INC.

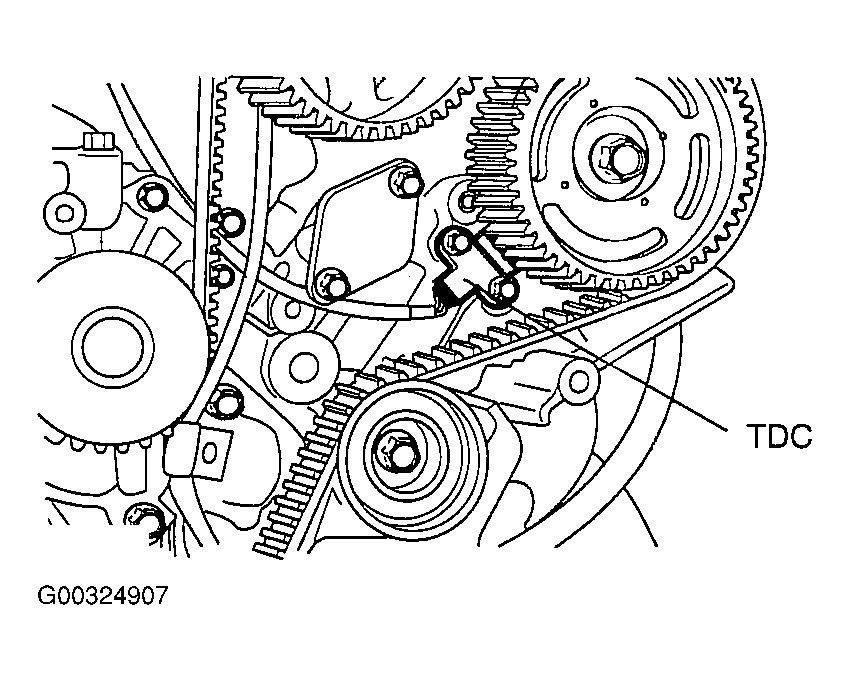

Fig 12: Locating Camshaft Position (TDC) Sensor

Courtesy of KIA MOTORS AMERICA, INC.

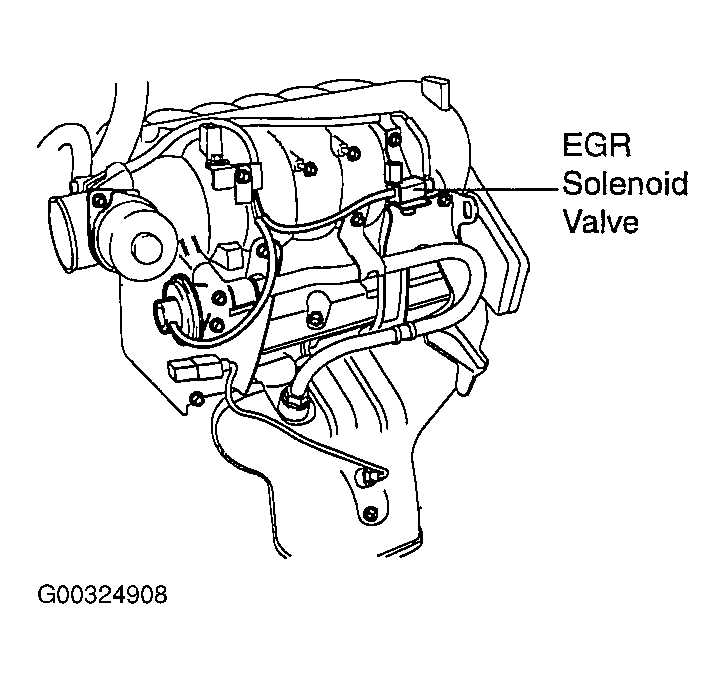

Fig 13: Locating EGR Solenoid Valve

Courtesy of KIA MOTORS AMERICA, INC.

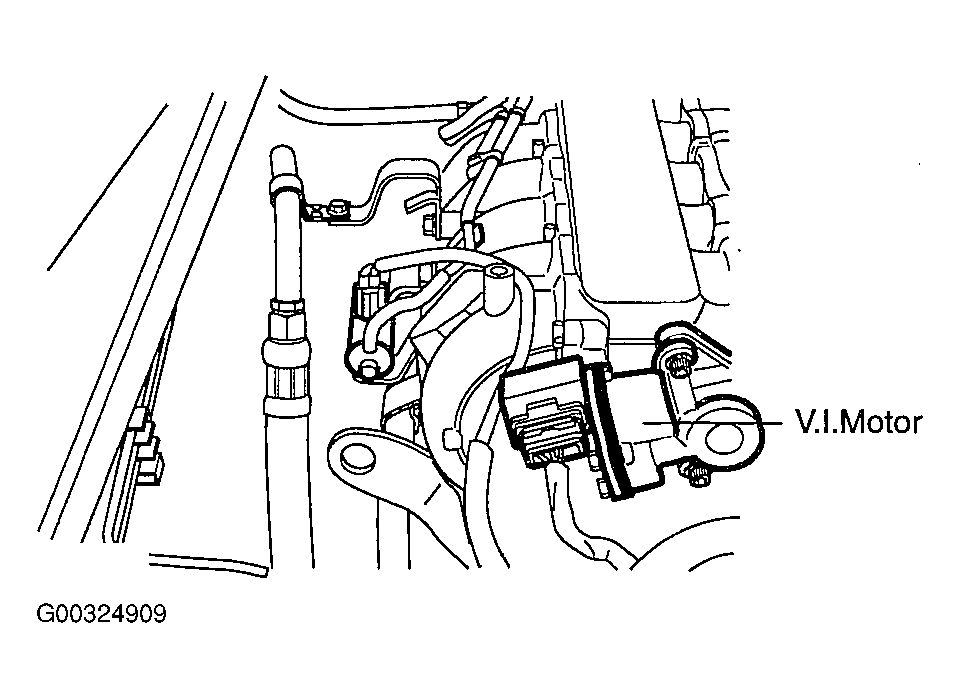

Fig 14: Locating Variable Intake Manifold Control Motor (V.I.Motor)

Courtesy of KIA MOTORS AMERICA, INC.

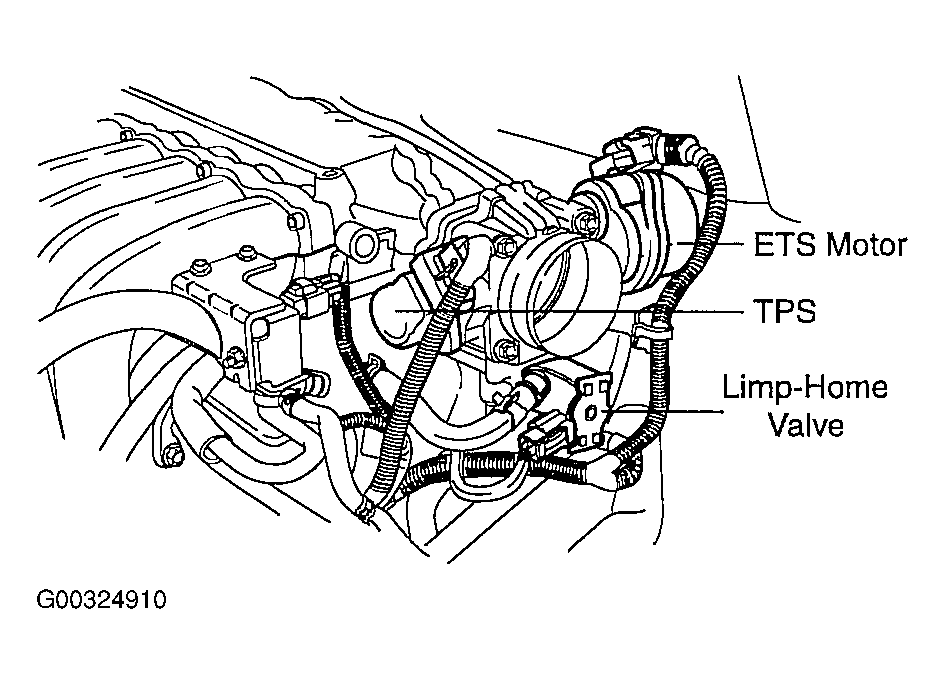

Fig 15: Locating Limp-Home Valve, ETS Motor & TPS

Courtesy of KIA MOTORS AMERICA, INC.

Fig 16: Locating ETS (Electronic Throttle System) Control Unit

Courtesy of KIA MOTORS AMERICA, INC.

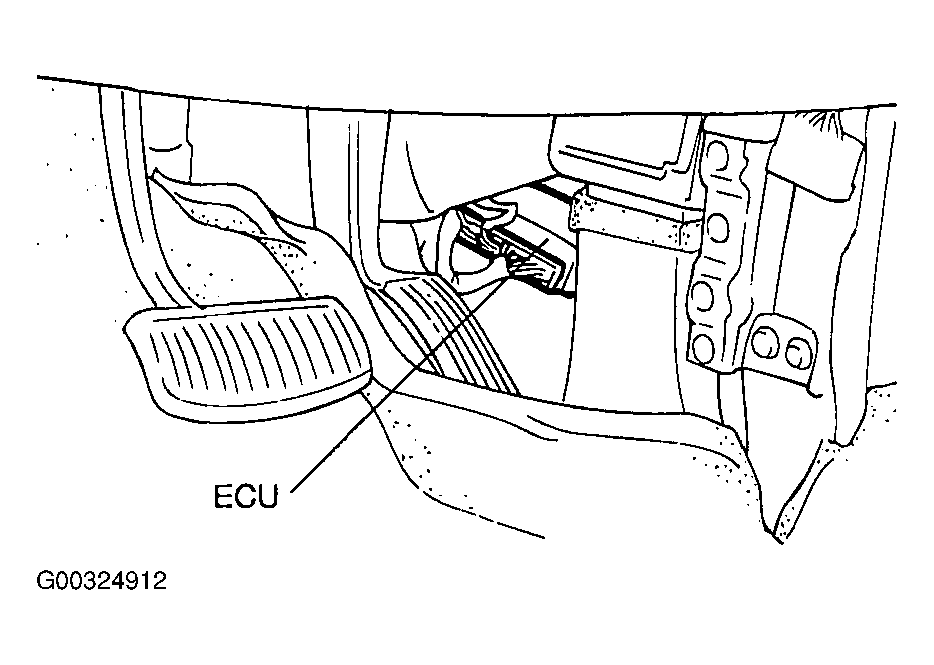

Fig 17: Locating ECU

Courtesy of KIA MOTORS AMERICA, INC.
