Harness Connector

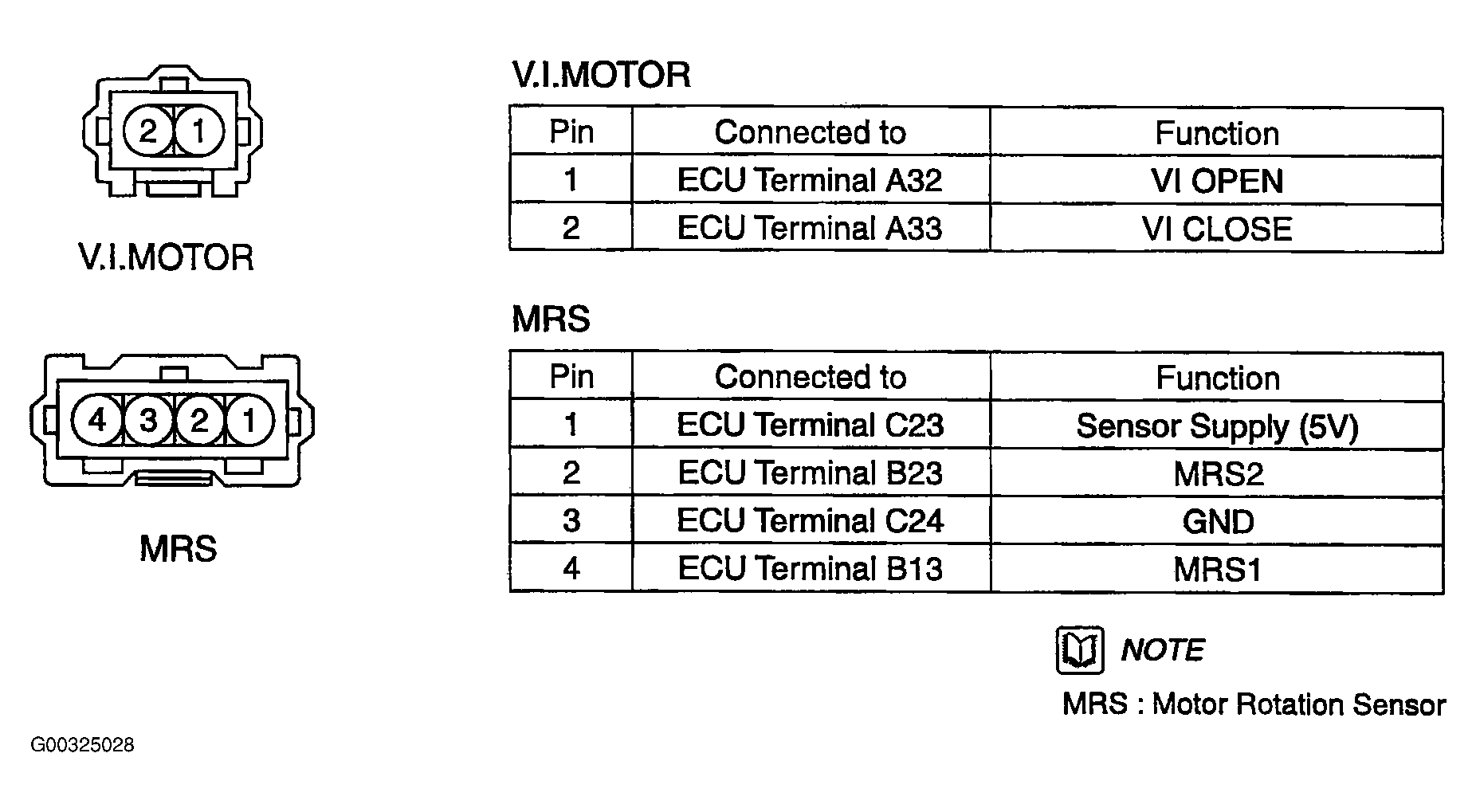

Fig 1: Illustrating V.I. Motor Harness Connector Pinout
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
