Engine Mounts: Components

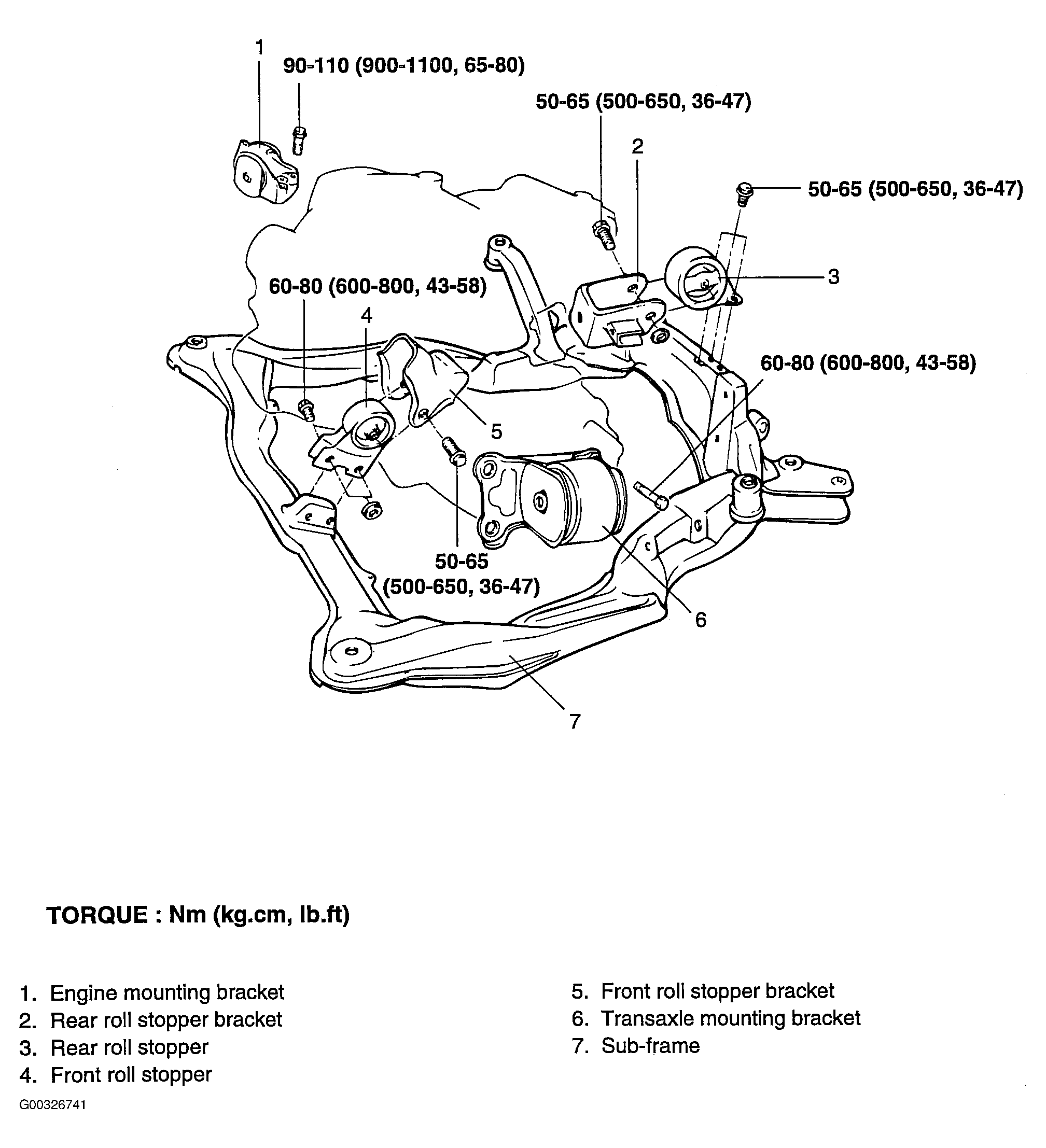

Fig 1: Exploded View Of Engine Mounts
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
