Manual Transaxle Shift Control: Components

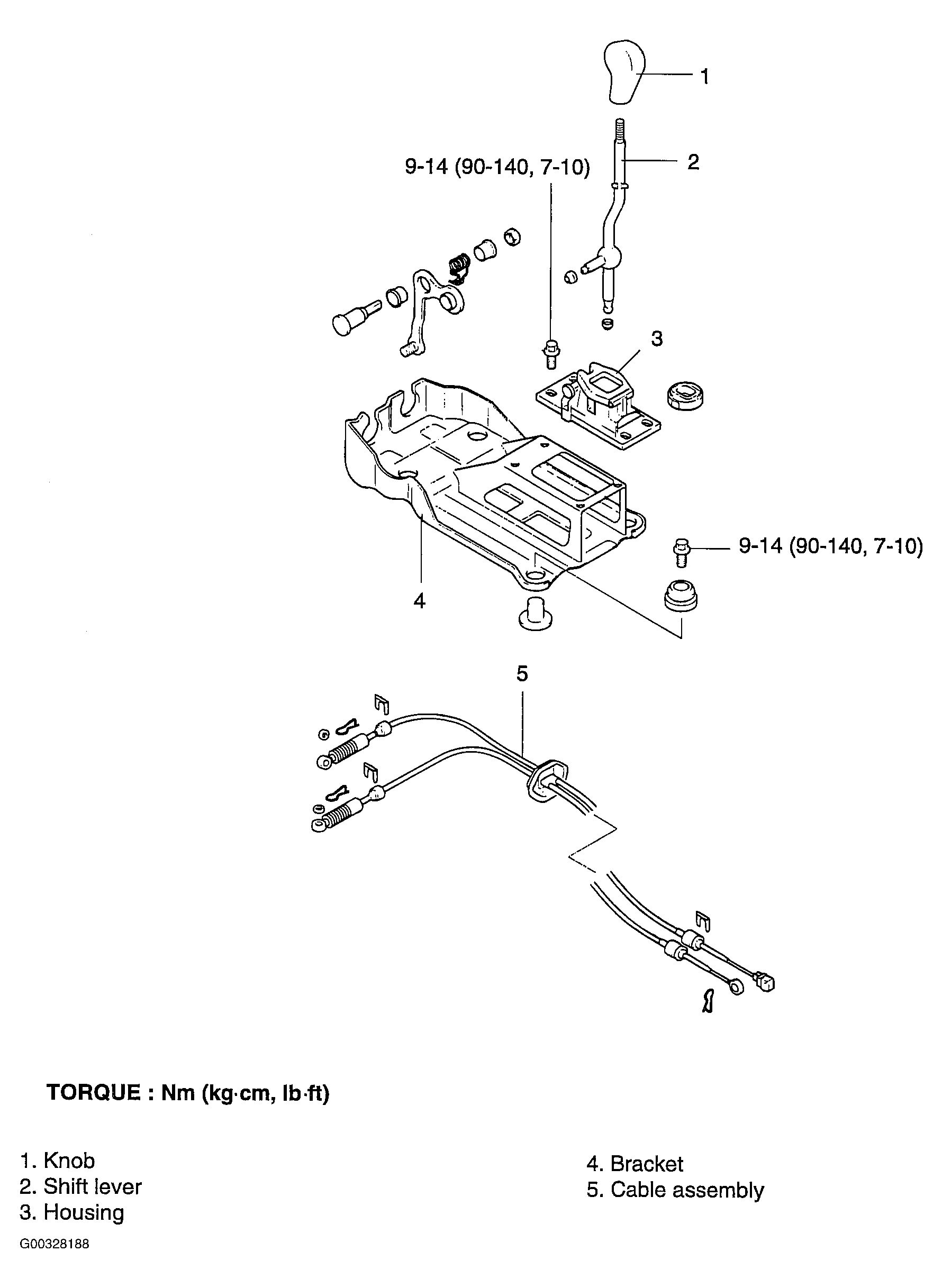

Fig 1: Removing & Installing Manual Transaxle Shaft Control
G00328188Courtesy of KIA MOTORS AMERICA, INC.
