Shift Fork: Components

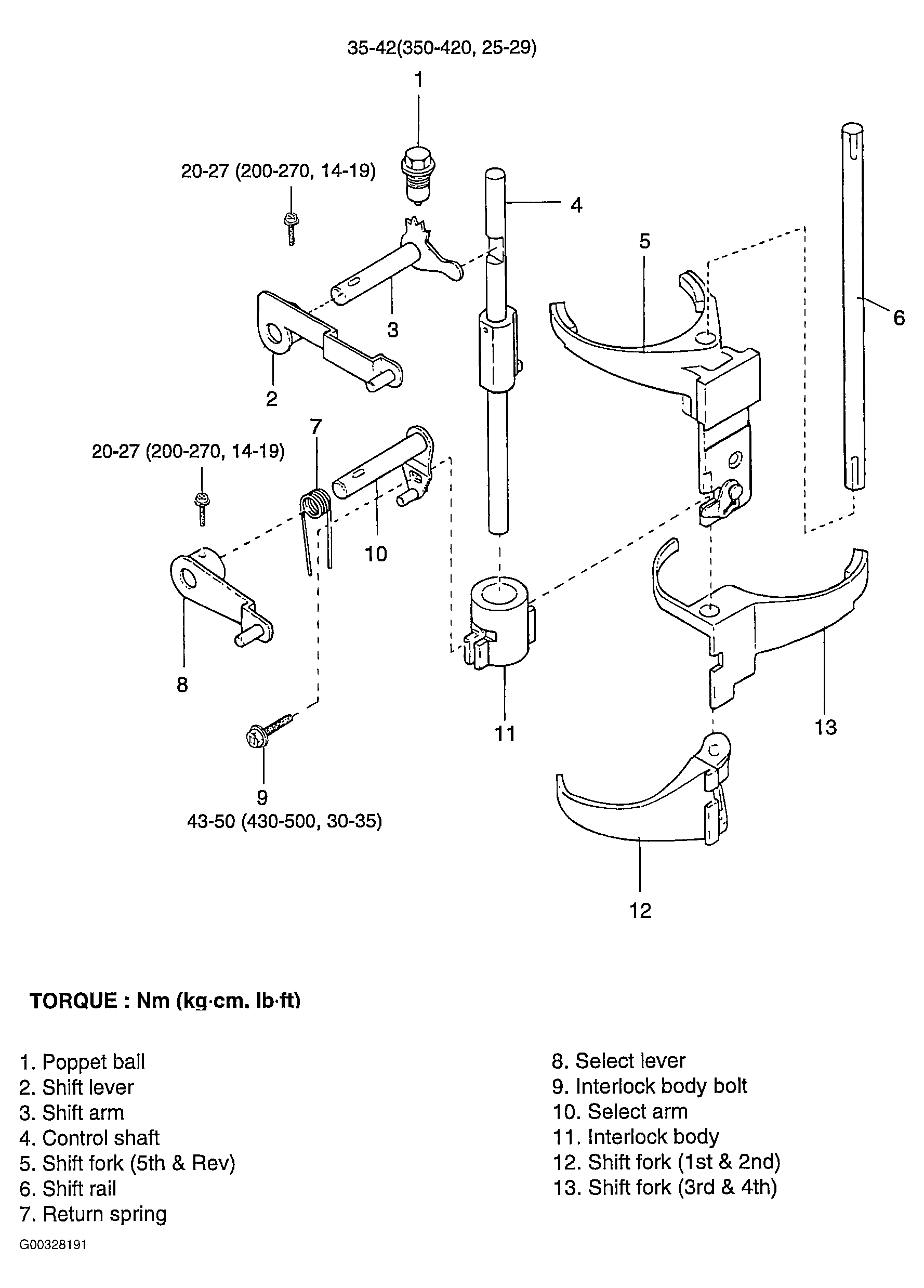

Fig 1: Removing & Installing Shift Fork

G00328191

Courtesy of KIA MOTORS AMERICA, INC.
