Indicators & Gauges: Troubleshooting: Notes

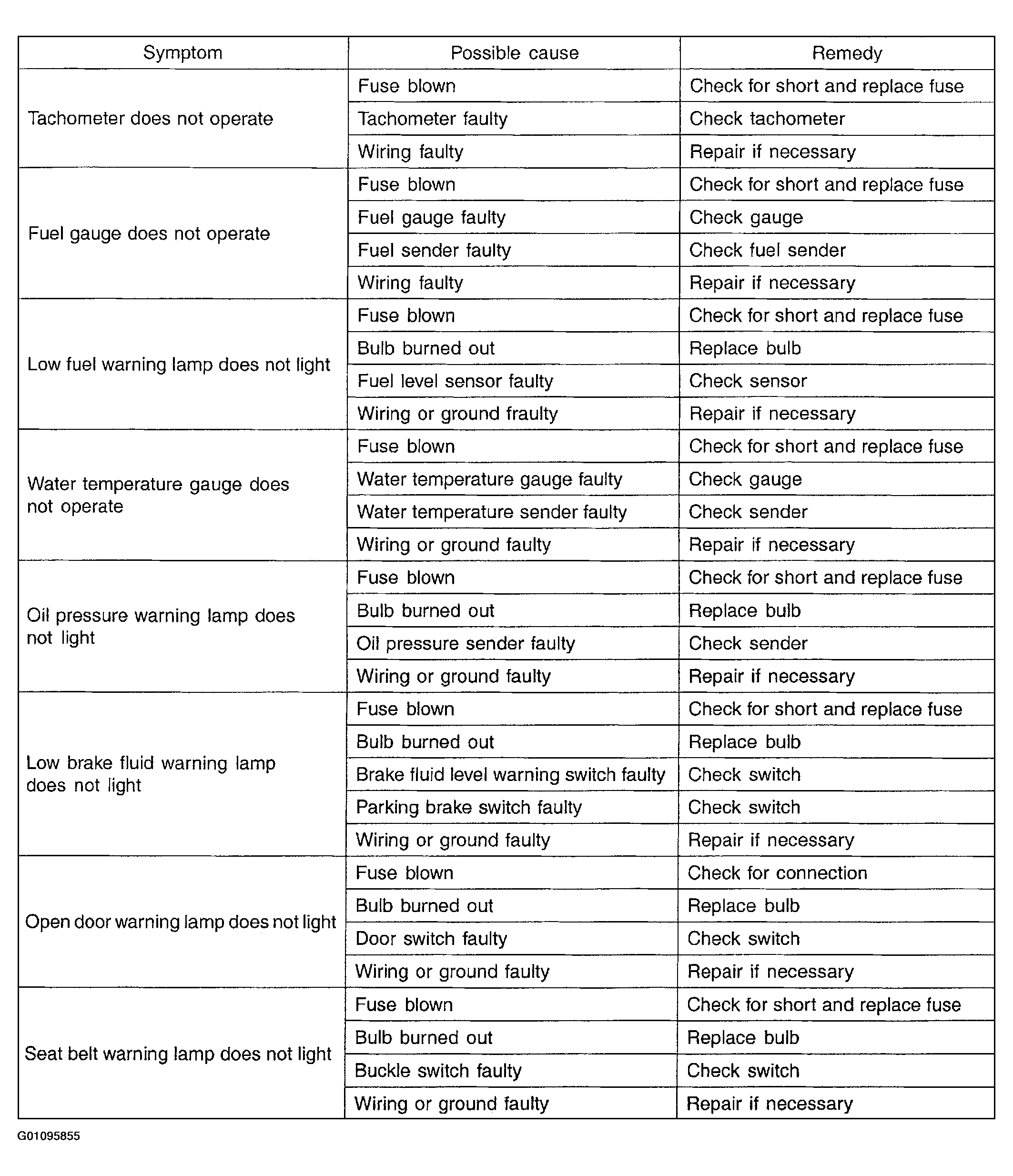

Fig 1: Cluster Troubleshooting Chart (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

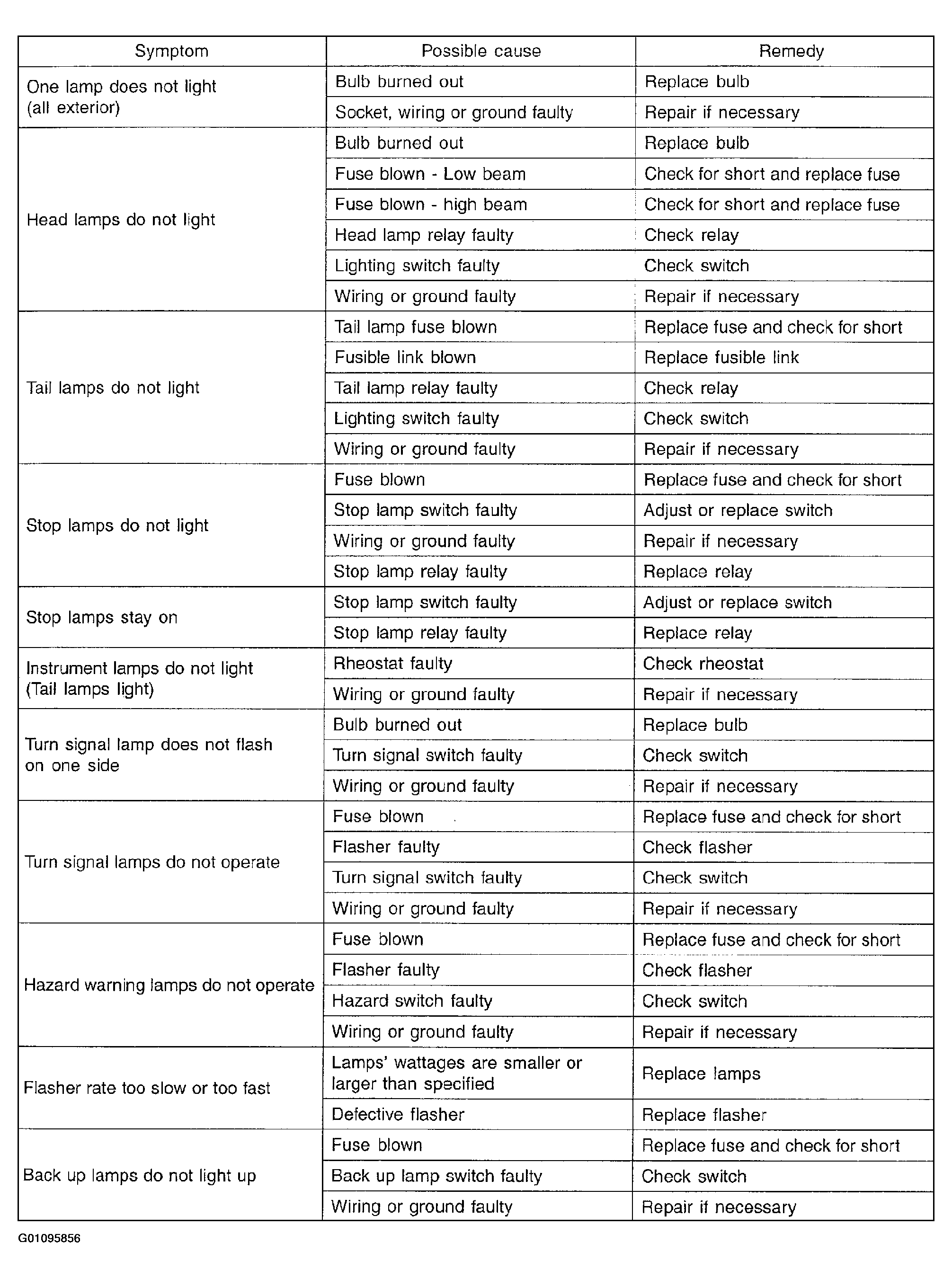

Fig 2: Cluster Troubleshooting Chart (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 3: Cluster Troubleshooting Chart (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
